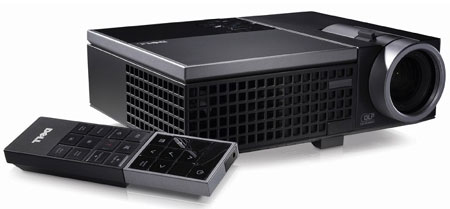

Dell M209X DLP Ultra Portable Projector
Dell M209X MSRP: $899
Overview
High Brightness
Don’t leave your audience in the dark. Deliver effective, lights-on presentations in almost any setting.
Ultra-Portable and Light Weight
Who says you can’t take it with you? This smartly designed, 2.6-lb. projector is highly portable, while still delivering stunning image quality and comprehensive functionality. With quick set-up and easy operation, the M209X is perfect for the road warrior.
Note: M209X does not support ceiling mounting.
DLP ® and BrilliantColor TM Technology
Thanks to multi-color processing and new BrilliantColor technology, the M209X offers superior color performance, image accuracy and picture reliability. DLP projectors produce wonderfully vivid color quality and up to 50% more color brightness than other technologies. There’s no smoke in these mirrors.
Easy Connectivity
Make your next presentation a multi-media extravaganza. The highly versatile M209X offers multiple connectivity options to enhance the visual experience, including VGA analog, digital HDMI, USB and Audio Input/Output ports.
Sleek New Design and Cool Features
Appearance isn’t everything – but it doesn’t hurt. The M209X offers a modern design and soft, attractive carrying case for convenience and protection. The full-featured remote provides easy, hands-off control and a built-in laser pointer for more efficient presentations.
Project and Protect
Unlike LCD projectors, DLP protects against color decay and seals out dust – reducing pesky maintenance and filter replacement costs. Plus, every Dell DLP projector is backed by our Investment Protection Service, a one- or two-year limited warranty, including Advanced Exchange2 and optional CompleteCare3TM Accidental Damage Service.
Add an affordable hard-shell carrying case to protect against unexpected bumps, knocks and drops. And then check out portable Dell projection screens to make your presentation road ready.
Features
- 2000 Lumens Brightness - With maximum projector brightness of 2000 ANSI Lumens, presentations can be projected in well lit environments.
- 1024 x 768 XGA Resolution - Enhance your image with 1024 x 768 resolution and native 4:3 aspect ratio that also supports 16:9 wide format input.
- 1800:1 Contrast Ratio - The 1800:1 (Full On / Full Off) contrast ratio ensures rich, deep colors, sharp image quality and easy-to-read text.
- DLP ® and BrilliantColor TM Technology - With 16.7 million vibrant colors, the M209X produces precise, life-like images and superior color performance. The magic is in the mirrors.
- 300 inches Maximum Projection Size - At 302.8 inches maximum projection, all your big ideas will play on a grand stage.
- Up to 5000 hour Lamp Life - Extend lamp life up to 5000 hours in quiet-running eco mode.
- 2.6 lbs Ultra-Portable - At only 2.6 lbs (1.18 kg), this light-weight projector easily goes wherever business takes you.
- Customizable Start-up Logo - Project brand success and your customized company logo in HD.
Specifications
| PROJECTION |
CONNECTIVITY |
Brightness:
2000 ANSI Lumens (Max)
Contrast Ratio:
1800:1 Typical (Full On / Full Off)
Resolution:
1024 x 768; autosync up to 1600 x 1200 (maximum)
Uniformity:
80% typical (Japan Standard - JBMA)
Projection Lens:
F-Stop: F/2.41~2.55
Focal length, f=21.8~24.0 mm with 1.1x manual zoom lens
Projection Distance:
1.0m to 12.0m (3.3ft to 39.4ft) |
Video Graphics Array (VGA) input
High Definition Multimedia Interface (HDMI)
Separate Video (S-Video)
Composite Video
USB remote connector
Audio input
Audio output
AC power input |
| LAMP |
VIDEO COMPATIBILITY |
Lamp Life1 Cycle:
Up to 3000 hours lamp ( up to 5000 hours in Eco-Mode) Actual hours varies
Lamp Type:
165 watt user-replaceable lamp |
High Definition Multimedia Interface (HDMI)
Component Video via VGA
Separate Video (S-Video)
Composite Video
|
| AUDIO |
KEYSTONE CORRECTION |
| 1 Speaker, 1watt RMS (Mono) |
Keystone Correction Direction:
Vertical |
| SECURITY |
COLOR, SIZE AND WEIGHT |
Kensington® security port (cable lock sold separately)
Password protection
|
Color:
Black
Dimensions (W x D x H):
7.25cm (2.85") x 15.5cm (6.10") x 20.5cm (8.07")
Weight:
1.18 kg (2.6 lbs)
|
| ELECTRICAL |
ENVIRONMENTAL |
Power:
Universal 90-264V AC 50-60Hz with PFC input
Power Consumption Operational:
205 Watts (typical); 165 Watts (Eco-Mode) |
Temperature Range Operating:
5 ° to 35 °C (41 ° to 95 °F)
Temperature Range Non-operating:
0°C to 60°C (32°F to 140°F)
Humidity Range Operating:
0 - 80%
Humidity Range Non-operating:
Storage: 90% (maximum)
Sound Emission:
39dB(A)Full-on mode; 32dB(A) Eco-Mode |
| COMPLIANCE AND STANDARDS |
WHAT'S IN THE BOX |
| CI, UL, cUL, Nemko-GS, ICES-003, MIC, C-Tick, CCC, PSB, NOM, SABS, eK |
1.8 m power cord (3.0m in Americas)
1.8 m VGA cable (VGA to VGA)
Carrying Case
Remote control
AAA Batteries (2)
CD User's guide and documentation |
|
