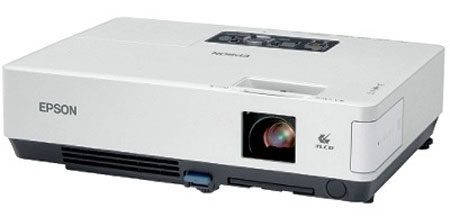

Epson PowerLite 1710c Portable Video Projector

Epson PowerLite 1710c MSRP: $1449

Overview

Make powerful presentations in any meeting room with the ultra bright, ultra light Epson® PowerLite 1710c. With 2700 lumens at just 3.5 lb, this compact ultraportable offers the perfect solution for almost any setting, including a variety of ambient light conditions.

Whatever the solution, the Epson PowerLite 1710c is always ready to perform. And, when there’s a break in the action, its A/V Mute Slide covers the lens, mutes the audio and powers down the lamp, all with the flick of a finger. When you’re ready to present again, you’re sure to get remarkable color and detail. For brilliant performance wherever the presentation takes you, choose the Epson PowerLite 1710c.

Features

• Native XGA (1024 x 768) resolution for sharp, vibrant images
• 2700 ANSI lumens for amazing brightness
• 400:1 contrast ratio
• 4:3 aspect ratio (supports 16:9, 5:4)
• Weighs only 3.5 lbs.
• Auto keystone correction and 1.2x optical zoom
• Multiscreen colour adjustment to match colour for mutiple projectors
• Easy to use with fast startup and Instant Off

Specifications

Projection System

• Epson original 3LCD technology

Projection Method

• Front/rear/ceiling mount

LCD

• Driving method: Epson High Temperature Poly-Silicon TFT, Pixel number: 786,432 dots x 3 (1024 x 768) LCDs, Native resolution: XGA , Aspect ratio: 4:3 (supports 16:9, 5:4), Pixel arrangement: Stripe

Projection Lens

• Type: Manual: zoom / focus, F-number: 1.6 – 1.77, f-number: 23.7 – 28.5mm, Zoom ratio: 1.0:1.2

Lamp

• Type: 170W UHE, Life: 2000H (High Brightness), 3000H (Low Brightness),

Screen Size: (Projected Distance)

• (Projected distance) 30" to 300" (3.2' to 39.7')

Keystone Correction

• Auto Keystone Correction Vertical: +/-30°

Brightness: (typical)

• (Typical) 2700 lumens (High Brightness) 2100 lumens (Low Brightness)

Contrast Ratio

• 400:1

Brightness Uniformity: (typical)

• (Typical) 83%

Color Reproduction

• Full color (16.7 mil)

Sound Output

• 1W Monaural

Operating Temperature

• 41°F to 95°F (5°C to 35°C)

Power Supply Voltage

• 100-240VAC +/-10%, 50/60Hz

Power Consumption

• 244W power on

Dimension

• (W x D x H) 10.7" x 7.6" x 3.1"

Weight

• 3.5lb

Fan Noise

• 40db (High Brightness), 35db (Low Brightness)

Effective Scanning Frequency Range

• Pixel clock: 13.5MHz to 162Mhz. Horizontal: 15KHz to 92Khz. Vertical: 50Hz to 85Hz,

Remote Control

• Features: Power, e-zoom, page up/page down, source, selection, color mode, volume, A/V mute, freeze, resize, menu, help, auto, pointer Operating angle: Right/Left +/- 30 degrees Upper/Lower +/- 15 degrees, Operating distance: 20 ft (6m)

RGB

• Analog RGB I/O Display performance: Native 1024 x 768, Resize 1600 x 1200, 1280 x 1024, 800 x 600, 640 x 480

Video I/O

• Display performance: NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) Input signal: NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, SECAM HDTV: 480i, 480p, 720p, 1080i Input terminal Video: Composite Video: RCA S-Video: Mini DIN; Component Video: Mini D-sub 15pin (in common with Analog RGB connector); Video-RGB: Mini D-sub 15pin (in common with Analog RGB connector) Audio Stereo mini jack: Audio signal 500 mVrms/47Kohm

Control I/O

• I/O terminal: USB 2.0 connector type B (for mouse and keyboard)

Security

• Kensington®-style lock provision, password protection

Warranty

• Two-year limited warranty, two-year international warranty, 90-day lamp warranty, Epson Road Service Program and Epson PrivateLine dedicated toll-free support (U.S. and Canada only)

Supplied Accessories

• Power cable, remote control with batteries, computer cable, audio adapter cable, USB A/USB B cable, owners manual, CD-Rom, Start Here Kit, soft carrying case
