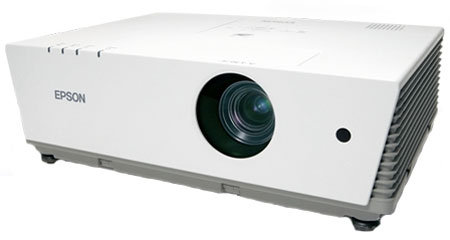

Epson PowerLite 6100i Multimedia Video Projector

Epson PowerLite 6100i MSRP: $2899

Overview

With 3500 ANSI lumens and closed captioning capabilities, the ultra bright Epson PowerLite 6100i LCD projector offers the ideal XGA solution for any lecture hall or boardroom. 3LCD technology ensures natural color and bright, vivid images for brilliant presentations that are sure to impress.

Ideal for any setup, this flexible performer comes with computer, composite, and S-video inputs, plus individual audio for each. Transport it from one classroom to the next, or install it in the boardroom. A sleek cable cover means the projector will not interfere with the overall aesthetics of the room, while the dust resistant design protects the optics.

Features

• Native 1024 x 768 XGA resolution
• Ultra bright 3500 ANSI lumens for presentations in any setting
• 500:1 contrast ratio
• Aspect ratio 4:3 (supports 16:9)
• Superior image quality and performance
• Installation features that make your life easier
• Easy setup and operation
• Local networking capabilities
• Great audio and connectivity options
• Outstanding Epson service and support (two-year limited warranty)

Specifications

Projection System

• Epson 3LCD technology

Projection Method

• Front/rear/ceiling mount

LCD

• Driving method: Epson Poly-silicon TFT, Active Matrix; Pixel number: 786,432 dots x 3 (1024 x 768) LCDs; Native resolution: XGA; Aspect ratio 4:3 (supports 16:9); Pixel arrangement: Cross stripe

Projection Lens

• Type: Manual focus; F-number: 1.75 - 2.42; Focal length: 24 - 38.2 mm; Zoom ratio: Optical zoom 1.6

Lamp

• Type: 230 W UHE; Life: 2500 H (High Brightness), 3000 H (Low Brightness)

Screen Size: (Projected Distance)

• 30" - 300" (2.7 - 48.2')

Lens Shift

• n/a

Keystone Correction

• Vertical: +/- 30 degrees

Brightness: (typical)

• 3500 ANSI lumens

Contrast Ratio

• 500:1

Brightness Uniformity: (typical)

• 90%

Colour Reproduction

• 16.7 mil

Sound Output

• 5W Monaural

Operating Temperature

• 32° - 104°F (0° - 40°C)

Power Supply Voltage

• 100-240 V +/ 10%, 50/60 Hz AC

Power Consumption

• 330 W, 10 W standby

Dimension

• (Excludes lens and feet):13.4" x 18.3" x 5.7"; (with cable cover): 17.9" x 18.3" x 5.7"; Includes lens and feet: 13.4" x 18.3" x 6.3"; (with cable cover): 17.9" x 18.3" x 6.3"

Weight

• 15.4 lb/7 kg

Fan Noise

• High Brightness w/standard filter: 39 db; (with an optional smoke filter): 43 db; Low Brightness w/standard filter 33 db; (with an optional smoke filter): 40 db

Effective Scanning Frequency Range

• Pixel clock: 13.5 MHz to 162 Mhz; Horizontal:15 KHz to 99 Khz; Vertical: 50 Hz to 120 Hz

Remote Control Features

• Features: Source selection, power, resize, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, mouse functions, help, auto; Operating angle: Right/left +/- 30 degrees, Upper/lower +/-15 degrees; Operating distance: 19.7 ft (6 m)

RGB

• Analog RGB: I/O
  • Display performance: Native:1024 x 768, Resize: 640 x 480, 800 x 600, 1280 x 1024
  • Input terminal: Video: Mini D-sub 15 pin x 2, Audio: RCA x 2
  • Output terminal: Video: Mini D-sub 15 pin (monitor out) x 1 Audio: RCA x 1

Card I/O

• N/A

Video I/O

• Display performance: NTSC: 560 line PAL: 560 line (depends on observation of the multi burst pattern)
• Input signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAMHDTV: 480i, 480p, 720p, 1080i
• Input terminal Video: Composite video: RCA x 1 S-Video: Mini DINx1 Component video: Mini D-sub 15 pin x 1(in common with Analog RGB connector) Video-RGB: Mini D-sub 15 pin (in common with Analog RGB connector)
• Audio: RCA x 1 (in common with Analog RGB Audio terminal)
• Audio signal: 500m Vrms/47 Kohm

Control I/O

• I/O terminal: I/O signal RS-232C x 1, Network interface LAN (RJ45) x 1

Security

• Kensington style lock provision

Warranty

• Two-year limited warranty, 90-day lamp warranty, Epson Road Service Program and Epson PrivateLine dedicated toll-free support (U.S. and Canada only)

Supplied Accessories

• Power cable, computer cable, projector remote control, batteries, cable cover, CD-ROM, Quick Setup Sheet, User's Manual, PrivateLine support card, password protection sticker
