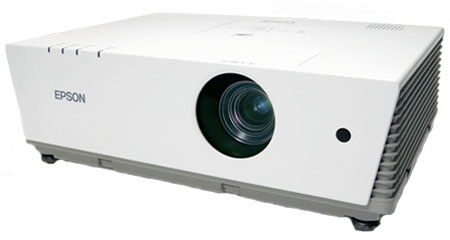

Epson PowerLite 6110i Multimedia Video Projector

Epson PowerLite 6110i MSRP: $2899

Overview

With 3500 ANSI lumens and closed captioning capabilities, the ultra bright Epson PowerLite 6110i offers the ideal XGA solution for any lecture hall or boardroom. 3LCD technology ensures natural color and bright, vivid images for brilliant presentations that are sure to impress.

Ideal for any setup, this flexible performer comes with computer, composite, and S-video inputs, plus individual audio for each. Transport it from one classroom to the next, or install it in the boardroom. A sleek cable cover means the projector will not interfere with the overall aesthetics of the room, while the dust resistant design protects the optics.

Features

• Native 1024 x 768 XGA resolution
• Ultra bright 3500 ANSI lumens for presentations in any setting
• 600:1 contrast ratio
• Aspect ratio 4:3 (supports 16:9)
• Superior image quality and performance
• Installation features that make your life easier
• Easy setup and operation
• Local networking capabilities
• Great audio and connectivity options
• Outstanding Epson service and support (two-year limited warranty)

Specifications

Projection System

• Driving Method
  Epson Poly-silicon TFT Active Matrix


Projection Method

• Front/rear/ceiling mount

LCD

• Driving Method
  Epson Poly-silicon TFT Active Matrix

• Pixel number
  786,432 dots x 3 (1024 x 768) LCDs

• Native resolution
  XGA
• Aspect Ratio
  4:3 (supports 16:9)
• Pixel Arrangement
  Cross stripe

Projection Lens

• Type
  Manual focus
• F-number
  1.75 - 2.42
• Focal length
  24 - 38.2 mm Zoom ratio Optical zoom 1.6

Lamp

• Type
  230 W UHE
• Life
  3500 Hours (High Brightness)
  4000 H (Low Brightness)

Screen Size: (Projected Distance)

• 30" - 300" (2.7 - 48.2')

Keystone Correction

• Vertical: ±30 degrees

Brightness: (typical)

• 3500 ANSI lumens

Contrast Ratio

• 500:1

Brightness Uniformity: (typical)

• 90%

Color Reproduction

• 16.7 mil

Sound Output

• 5W Monaural

Operating Temperature

• 32° - 104°F (0° - 40°C)

Power Supply Voltage

• 100-240 V +/ 10%, 50/60 Hz AC

Power Consumption

• 330W
  10W standby

Dimension

• 18.3" x 13.4" x 6.3" (Including feet)
  18.3" x 13.4" x 5.7" (Excluding feet)

Weight

• 15.4 lb/7 kg

Fan Noise

• High Brightness w/standard filter: 39 db
  (with an optional smoke filter): 43 db
• Low Brightness w/standard filter 33 db
  (with an optional smoke filter): 40 db

Effective Scanning Frequency Range

• Pixel clock
  13.5 MHz to 162 Mhz
• Horizontal
  15 KHz to 99 Khz
• Vertical
  50 Hz to 120 Hz

Remote Control

• Features Source selection, power, resize, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, mouse functions, help, auto
• Operating angle
  Right/left +/- 30 degrees
  Upper/lower +/-15 degrees
• Operating distance
  19.7 ft (6 m)

RGB

• Display performance
  Native: 1024 x 768
  Resize: 640 x 480, 800 x 600, 1280 x 1024
• Input terminal
  Video: Mini D-sub 15 pin x 2
  Audio: RCA x 2
• Output terminal
  Video: Mini D-sub 15 pin (monitor out) x 1
  Audio: RCA x 1

Video I/O

• Display performance NTSC: 560 line
  PAL: 560 line (depends on observation of the multi burst pattern)
• Input signal
  NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAMHDTV: 480i, 480p, 720p, 1080i
• Input terminal
  Video:
  • Composite video: RCA x 1
  • S-Video: Mini DIN x 1
  • Component video: Mini D-sub 15 pin x 1(in common with Analog RGB connector)
  • Video-RGB: Mini D-sub 15 pin (in common with Analog RGB connector)
• Audio
  RCA x 1 (in common with Analog RGB Audio terminal)
• Audio signal
  500m Vrms/47 Kohm

Control I/O

• RS-232C x 1
  Network interface LAN (RJ45) x 1

Security

• Kensington style lock provision

Warranty

• Two-year limited warranty, 90-day lamp warranty, Epson Road Service Program and Epson PrivateLine dedicated toll-free support (U.S. and Canada only)

Supplied Accessories

• Power cable, computer cable, projector remote control, batteries, cable cover, CD-ROM, Quick Setup Sheet, User's Manual, PrivateLine support card, password protection sticker
