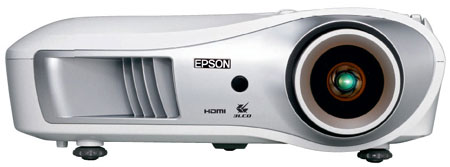

Epson PowerLite Home Cinema 1080 UB Home Theater Projector

Epson PowerLite Home Cinema 1080 UB MSRP: $2999

Overview

The Epson PowerLite Home Cinema 1080UB offers the ultimate way to experience larger-than-life movies, sporting events and video games with cutting-edge, true 1080p native resolution, the industry’s best high definition signal to date. By implementing a full suite of state-of-the-art technologies within a single projector, Epson provides a total solution that is sure to exceed your expectations.

The 1080UB consistently delivers precise color and detail, so you don’t miss a moment of the action. New UltraBlack™ technology and a 50,000:1 dynamic contrast ratio (4000:1 native) offer incredible shadow detail and the deepest blacks possible. Best of all, with expanded, dual HDMI 1.3 connectivity, the 1080UB has the flexibility to meet your family’s entertainment needs, both now and in the future.

Designed by the world leader in projectors, this powerful performer offers quality to which others only aspire. By integrating so many innovative technologies into one remarkable product, Epson has delivered a world-class home cinema projector you truly have to see to believe.

Features

• Brightness of 1600 ANSI Lumens
• 1080p resolution for ultimate HD clarity
• UltraBlack™ technology for the deepest blacks
• 50,000:1 contrast ratio (dynamic setting)
• C²Fine™ 3LCD (3-chip optical engine) technology
• 1600 lumens for incredible brightness
• Extended color gamut
• 1080Perfect™ video processing
• Two HDMI 1.3 ports
• OptiCinema™ lens for superior image quality
• E-TORL™ lamp for greater color uniformity
• Whisper-quiet (24 dB) operation

Projector Review

Specifications

Projection System

• Epson C²Fine™ 3LCD technology

Projection Method

• Front / rear / ceiling mount

LCD

• D7 0.74" wide, poly-silicon TFT active matrix (with MLA)
• Resolution
  Native 1080p (1920 x 1080)

Projection Lens

• F-number
  2.0 – 3.17
• Lens Shift Range
  Vertical ±96%
  Horizontal ±47%

Lamp

• 170 W UHE E-TORL™ lamp
• Lamp Life1
  Up to 3000 hours

Screen Size: (Projected Distance)

• 100" diagonal (wide: 9.8' – tele: 20.9')
• Aspect Ratio Native 16:9 (4:3 resize)

Brightness: (typical)

• Up to 1600 lumens (Dynamic Mode)

Contrast Ratio

• Up to 50,000:1 (dynamic), 4,000:1 (native)

Color Reproduction

• Built-in Y/C separation and I/P conversion
• Powered by Pixelworks™
• x.v.Color™

Adjustment Function

• Manual zoom
  Manual focus
• Zoom Ratio
  1 – 2.1

RGB

• Video Compatibility
  HDMI
  HDTV
  Component video
  S-video
  Composite video
  NTSC/PAL/SECAM
  Analog RGB
  D4/SCART

Video I/O

• Video Input Signal
  NTSC
  NTSC4.43
  PAL
  M-PAL
  N-PAL
  PAL60
  SECAM
  480i
  480p
  720p
  1080i
  1080p
• Terminal Inputs
  2 HDMI 1.3
  1 RCA (Component)
  1 RCA (Composite)
  1 Mini Din (S-video)
  1 Mini D-Sub 9 pin (RS-232c)
  1 Mini D-Sub 15 pin (Analog RGB)

Dimension

• 16" x 12.2" x 4.9"

Weight

• 12.3 lbs.

Warranty

• Two-year quick exchange warranty (includes priority, toll-free technical support), plus 90-day lamp warranty.
