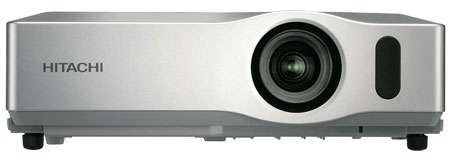

Hitachi CP-X308 3LCD Video Projector
Hitachi CP-X308 MSRP: $3,295
Overview
Thanks to the Hitachi CP-X308's built-in networking feature, users can monitor and manage one or more projectors from a single remote location, using Hitachi's proprietary PJ Man software. This simplifies the control, maintenance and security issues inherent with any projector system. Users can easily monitor the status of the projector (or many projectors), as power on/off, input source, lamp/filter hours and condition are all on display. Moreover, the software allows for control over these functions. Additionally, users can schedule power on/off events on an hourly, daily and weekly basis. Events can be applied to an individual or group of Hitachi projectors. Other features such as e-mail alerts for scheduled maintenance or error conditions, as well as password protection, give the user a new level of control at no extra charge.
The CP-X308 boasts 2,600 ANSI lumens of brightness and native XGA resolution at a light weight of 8.8 pounds. The CP-X308 features 802.11 b/g connectivity, allowing up to four PC’s to connect wirelessly. The CP-X308 also offers a variety of wired connectivity options, including component, composite and S-Video inputs, as well as two RGB inputs and one RGB output.
Features
- Brightness: 2,600 ANSI lumens
- Weight: 8.8 lbs.
- Resolution - Video 540 TV lines
- Resolution - RGB 1024 Dots X 768 Lines
- Networkable/Wireless: RJ-45, SD wireless card
- Contrast ratio: 500:1
Specifications
Optical |
LCD Panel |
0.63"P-Si TFT x 3 with micro lens |
Resolution |
XGA: 1024 dots x 768 lines |
Brightness |
Normal Mode 2600 ANSI Lumens
Whisper Mode 2100 ANSI Lumens |
Contrast Ratio |
500:1 (typ) |
Lens |
F1.7~1.9 (f=19.5~23.4mm) Manual Focus, Manual Zoom x 1.2 |
Lamp |
220W |
Lamp Life |
2000 (normal)
3000 (eco) |
Projection Distance |
0.9 ~ 13.5m |
Distance to Width ratio (:1) |
1.5 (WIDE), 1.8 (TELE) |
Diagonal Display Size |
30 ~ 300" (60" @1.8m, Wide) |
Number of Colours |
8 Bits/colour, 16.7M colours |
Keystone |
9:1upward shift, fixed |
Compatability |
Computer Compatibility |
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+, UXGA Capability, MAC 13", MAC 16" (Pixelworks chip) |
Video Compatibility |
NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p (720p@50/60Hz), 1125i(1080i@50/60Hz) |
Plug & Play |
DDC2B |
Frequency Range |
FV 56~120Hz, FH 31.5~106kHz |
Features |
Audio Output |
7W Mono |
Other |
Freeze, Magnifying, Blank, Auto adjustment, Search, Page UP&DOWN (for USB mouse function), Equalising Gamma Correction, 2-3 pull down, Progressive Scan, Noise Reduction, Auto V keystone +/- 30 degrees (@XGA 60Hz), MyScreen, My Memory, My Button, blackboard/whiteboard mode, Input source naming (English), Resolution setting, Easy lamp replace from top, Air filter on side, Serial number label on side, Quick ON (4 sec), Direct ON, Direct OFF, Security bar, PIN Lock, MyScreen PIN lock, Keypad Lock, Kensington slot, Transition Detector Freeze Function, Magnifying Digital Gamma Correction, My Memory, 2-3 pull down Electrical Vertical Keystone Correction, Auto Configuration (H-Phase, H-Size, Position), PIN Lock System, My Screen, Easy Lamp replace from Top, Easy Filter Change with sliding system, Easy Operation : Quick ON, Security Bar for Anti-Theft |
PC less presentation |
USB slot, SD slot support (jpeg, bmp, png, motion picture (MPEG4 standard profile) support) |
OSD Languages |
MENU : 17 Language |
Connections |
Computer Input |
15-pin Mini D-sub x 2 |
Computer Output |
15-pin Mini D-sub x 1 |
Video input |
RCA Jack x 1
S-Video Jack x 1
RCA Jack x 3 for Component |
Audio Input |
Stereo Mini Jack x 2
RCA (L/R) x 1 pair
(Selectable on OSD) |
Audio Output |
Stereo Mini Jack x 1 |
Control and Mouse |
9-pin D-sub x 1 for RS232 control USB type B x 1 for mouse control |
PC-less presentation |
USB type A x 1, SD slot x 1 (shared with wireless) |
Networking |
Controlling & Monitoring, WEB control, e-shot, scheduling function (RJ-45). 302.11b/g Wireless presentations, control & monitoring, web control SD wireless control card included |
Power |
Power Supply |
100~120/220~240V, 50/60Hz, 3.3A/1.4A |
Power Consumption |
320W |
Physical |
Dimensions (W x H x D) |
340 x 117 x 270mm (excluding feet and extrusions) |
Weight |
4.0Kg (Target)/8.8lbs |
Noise Level |
35dB/29dB |
Air Filter |
MU04951 |
Miscellaneous |
|
Lamp Indicator Light, Power Light, Ceiling Mount Image, Rear Projection Image |
Certification |
Certification |
UL60950/C-UL, FCC Part 15 Class B, 'CE, AS/NZS CISPR22 Class B |
Accessories Supplied |
Accessories Supplied |
Power cord, CP-X306W: (US cord, 3m) x 1, (UK cord, 3m) x 1 and (Euro cord, 3m) x 1, CP-X306E: (UK cord, 3m) x 1 and (Euro cord, 3m) x 1, CP-X306U: (US cord, 3m) x 1, RGB Cable (2m) x 1, RCA Video/Audio Cable (3 m) x 1, Wireless Remote Control Unit x 1, AA Batteries x 2, Soft case x 1, Lens cap x 1, Strap x 1, Security Label x1, User’s Manual (Operating Guide, Network Guide, Safety Instructions x 1 (on a CD-ROM), User’s Manual (Concise) x 1 |
Optional Accessories |
Replacement Lamp |
DT00841 |
|
