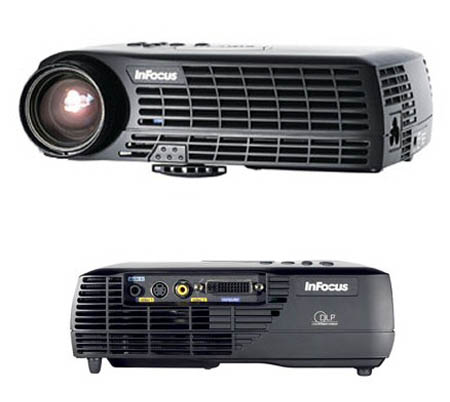

InFocus Work Big IN10 Ultra Portable Video Projector
InFocus IN10 MSRP: $999
Overview
Mighty Concentrated
The InFocus Work Big IN10 ultra-mobile projector is the technological equivalent of a pint-sized solar burst you can take anywhere. Built around innovative, compact optics and advanced DLP® imaging technology the 1800-lumen IN10 will ensure your brightest idea really sees the light of day. No matter how large your presentation space, the IN10 will project a clean, vivid image while supporting both front and rear projection. Integrated XGA native resolution will flawlessly display the most media-rich presentations, including automatic adjustment for 16:9 video and true HD sources.
Adjust on the fly
The IN10 weighs a scant 2.4 lbs and easily fits in your hand – half the weight and size of most other “mobile” projectors! Enabling you to travel light while maintaining full presentation functionality is what the IN10 is built for, so InFocus integrated key hardware features designed for ease of use. Such features include the onboard 1.3:1 zoom lens - an ideal hybrid for utilizing close quarters such as a trade-show booth, or taking presentations to a conference room. Also, the ultra-precise lens-mounted zoom and focus control enables you to adjust your image anywhere at anytime without fragile internal motors to fret over.
Speaking prowess
The IN10 uses a standard 4000-hour lamp, this amount of life will give you years of maintenance-free projection with nothing to clean or replace. This means projector air filters are a thing of the past and you’ll never be embarrassed by a filter warning on-screen during your most important presentation.
The right connections
To make life easier on the road, InFocus has incorporated all the connectivity you’ll ever need in the new IN10. For high-resolution video and data sources, the integrated M1-DA port offers expansion to component, HDMI and VGA-computer connections. Also, the onboard composite and s-video inputs enable quick connectivity in parallel with the audio input and internal speaker to provide a full multimedia experience for the audience. This evolved approach to connectivity means when the IN10 is plugged-in to the InFocus LiteShow II wireless device users can finally present data, audio and video wirelessly!
Features
- 1800 ANSI Lumens
- 1100:1 Contrast Ratio
- Native Resolution 1024 x 768 XGA
- Weighs a scant 2.4 lbs and easily fits in your hand
- DVI input via optional M1 adapter (for high-resolution video and data sources)
Specifications
Display |
Native Aspect Ratio: |
4x3 |
Supported Aspect Ratio: |
4:3, 16:9 |
Brightness: (max ANSI lumens) |
Whisper: Not Available
High Bright: 1800 max ANSI lumens max ANSI lumens |
Contrast Ratio: |
1100 : 1 Full On/Full Off |
Display Technology: |
DLP by Texas Instruments: 0.7" XGA DMD DDR |
Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024) |
Video Compatibility: |
Full NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i |
Color Wheel (DLP Only): |
4-segment, 2-speed |
Native Resolution: |
XGA |
Projector Placement: |
Rear Projection, Front Projection |
SMPTE Brightness: |
Not Available |
Lamp Wattage: |
Whisper: Not Available
High Bright: 120 Watts |
Lamp Life: |
Whisper: Not Available
High Bright: 4000 Hours |
Minimum Image Size: |
2.7 ft (0.82 m) |
Maximum Image Size: |
22.2 ft (6.77 m) |
Standard Lens Zoom: |
1.25 : 1 |
Standard Lens Throw Ratio: |
1.85 - 2.35:1 (Distance/Width) |
Standard Lens Image Offset Ratio: |
110% (+/- 5%) |
Standard Lens Projection Distance: |
5 - 32.3 ft (1.52 - 9.85 m) |
Digital Keystone Correction (Vertical): |
+/- 15° |
Digital Keystone Correction (Horizontal): |
Not Available |
Lens Shift: |
Not Available |
Inputs and Outputs |
DVI: |
Number of Inputs: 1
Requires optional M1 to DVI cable |
M1: |
Number of Inputs: 1
Accepts VESA and DVI with M1 cable |
HDMI: |
Not Available |
BNC: |
Not Available |
Component (RCA): |
Number of Inputs: 1
Requires M1 to Component adapter. |
VESA (HD15): |
Number of Inputs: 1
Requires M1 to VESA cable |
S-Video: |
Number of Inputs: 1
4-pin mini-DIN |
Composite (RCA): |
Number of Inputs: 1
Video only |
Standard Definition TV: |
Composite RCA, S-Video |
Enhanced Definition TV: |
M1-DA |
High Definition TV: |
M1-DA |
Computer: |
M1-DA |
HDCP Support: |
No |
Stereo RCA Jacks Inputs: |
No |
Stereo 3.5 mm Mini-jack Inputs: |
Yes |
12v trigger for motorized screens (3.5 mm mini-jack): |
No |
Projector Control: |
Projector Keypad, Remote |
Speakers: |
1-Watt speaker |
Monitor Output: |
No |
Audio Output: |
Not Available |
Compatibility |
Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024) |
H-Sync Range: |
15 - 100kHz |
V-Sync Range: |
43.5 - 130Hz |
Video Compatibility: |
Full NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i |
General |
Audible Noise: |
32 dB |
Actual Dimensions: |
Height: 2.5 in (6.35 cm)
Length: 6.1 in (15.49 cm)
Width: 7.8 in (19.81 cm)
|
Actual Weight: |
2.4 lbs (1.09 kg) |
Shipping Weight: |
7 lbs (3.18 kg) |
Projector Warranty: |
2 years |
Lamp Warranty: |
6 months |
Accessories Warranty: |
90 days |
Operating temperature:
(at sea level) |
41 - 104° F (5 - 40° C) |
Maximum Altitude Supported: |
10000 ft (3048 m) |
Typical Power Consumption: |
155 Watts |
Maximum Power Consumption: |
Not Available |
Power Supply: |
100 - 240 Volts at 50 - 60 Hz |
Menu Languages: |
English, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Simplified Chinese, Spanish, Traditional Chinese |
Approvals: |
FCC A (US/Canada), CCC (China), IRAM (Argentina), GOST (Russia), UL & cUL (US/Canada), TUV GS (Germany), NOM (Mexico), C-Tick (Australia) |
|
