InFocus Work Big IN1102 Ultra Portable Video Projector

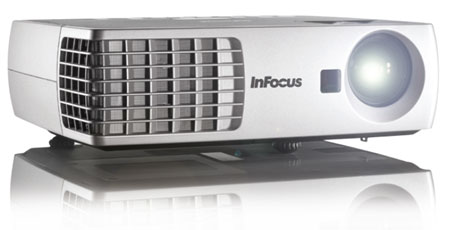

InFocus IN1102 Video Projector

InFocus IN1102 MSRP: $1,199

Overview

The InFocus IN1100 projector series is designed for teams that want it all - mobility, performance, and ease-of-use. With DisplayLink™ USB connectivity the IN1100 series takes seconds to set up & project and uses a much smaller cable. Utilizing filter-free, zero maintenance DLP® with BrilliantColor™ technology, the IN1100 brings superior visual performance to any meeting space.

Ease-of-use
At a mere 2.75lb and 2400cc, the lightweight & compact nature of the IN1100-series makes it easy to move between floors and easy to travel with. With a much smaller footprint than a piece of notebook paper, every tabletop has room for this projector.

Performance
The IN1100-series provides vivid colors and ample brightness. DLP® with BrilliantColor™ technology offers true-to-life color reproduction with up to 2200 lumens and an 1800:1 contrast ratio; a trifecta other mobile products cannot match. Leveraging high speed processing the IN1100 series accepts WUXGA & 1080p high resolution content. Additionally, the IN1100-series offers XGA and WXGA native resolutions to perfectly display from 4:3 or 16:10 widescreen computers.

Peace of mind
Plug-in, power-on, project. The IN1100-series is the first projector to utilize DisplayLink™ technology to eliminate the need to resize computer screens or toggle function keys when setting up an IN1100 series projector.

Features

  • 2200 ANSI Lumens
  • Native 1280 x 800 WXGA Resolution
  • 16x10 Native Aspect Ratio
  • 1800:1 Contrast Ratio
  • Weighs only 2.75 lbs
  • Up to 4,000 hours of lamp life
  • DisplayLink™ USB connectivity
  • Filter-free, zero maintenance design

Specifications

Display
Native Aspect Ratio: 16x10
Supported Aspect Ratio: 16x10, 16:9, 4:3, 5:4
Brightness: (max ANSI lumens) High Bright: 2200 Lumens
Eco Mode: 1650 Lumens
Contrast Ratio: 1800 : 1 Full On/Full Off
Display Technology: DLP by Texas Instruments: 0.65" XGA DMD with Brilliant Color
Data Compatibility: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA (1400x1050), WXGA (1280x800), WXGA+ (1440x900), WSXGA+ (1680x1050)
Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60
Color Wheel (DLP Only): 5-segment
Native Resolution: WXGA
Projector Placement: Front Projection, Rear Projection
SMPTE Brightness: Not Available
Lamp Wattage: High Bright: 165 Watts
Eco Mode: 132 Watts
Lamp Life: Whisper: 3000 Hours
High Bright: 4000 Hours
Minimum Image Size: 2.33 ft (0.71 m)
Maximum Image Size: 25.33 ft (7.72 m)
Standard Lens Zoom: 1.1 : 1
Standard Lens Throw Ratio: 1.55 - 1.7 (Distance/Width)
Standard Lens Image Offset Ratio: 112%
Standard Lens Projection Distance: 3.9 - 39 ft (1.19 - 11.89 m)
Digital Keystone Correction (Vertical): +30°/-30°
Digital Keystone Correction (Horizontal): Not Available
Lens Shift: Not Available
Inputs and Outputs
DVI: Not Available
M1: Not Available
HDMI: Not Available
BNC: Not Available
Component (RCA): Number of Inputs: 1
requires optional VGA to Component adapter.
VESA (HD15): Number of Inputs: 1
15-pin VGA
S-Video: Number of Inputs: 1
4-pin mini-DIN
Composite (RCA): Number of Inputs: 1
Standard Definition TV: Composite RCA, S-Video
Enhanced Definition TV: VGA
High Definition TV: VGA
Computer: USB (DisplayLink), VGA
HDCP Support: No
Stereo RCA Jacks Inputs: No
Stereo 3.5 mm Mini-jack Inputs: Yes
12v trigger for motorized screens (3.5 mm mini-jack): No
Projector Control: Projector Keypad, Remote, USB
Speakers: 1 Watt mono speaker
Monitor Output: No
Audio Output: Not Available
Compatibility
Data Compatibility: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), SXGA (1400x1050), WXGA (1280x800), WXGA+ (1440x900), WSXGA+ (1680x1050)
H-Sync Range: 31 - 92kHz
V-Sync Range: 50 - 85Hz
Video Compatibility: Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60
General
Audible Noise: 35 dB
Actual Dimensions: Height: 2.5 in (6.35 cm)
Length: 7.2 in (18.29 cm)
Width: 8.3 in (21.08 cm)
Actual Weight: 2.75 lbs (1.25 kg)
Shipping Dimensions: Height: 11.42 in (29.01 cm)
Length: 15.5 in (39.37 cm)
Width: 7.28 in (18.49 cm)
Shipping Weight: 7.5 lbs (3.4 kg)
Projector Warranty: 2 years
Lamp Warranty: 6 months
Accessories Warranty: 90 days
Operating temperature:
(at sea level)
41 - 95° F (5 - 35° C)
Maximum Altitude Supported: 10000 ft (3048 m)
Typical Power Consumption: 164 Watts
Maximum Power Consumption: 185 Watts
Power Supply: 100 - 240 Volts at 50 - 60 Hz
Menu Languages: English, French, German, Italian, Korean, Norwegian, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese, Swedish, Dutch, Polish, Turkish, Danish, Finnish
Approvals: UL and c-UL (US/Canada), FCC (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia), MIC & eK (South Korea), PSB (Singapore), WEEE (EU), South Africa, RoHS, China RoHS
