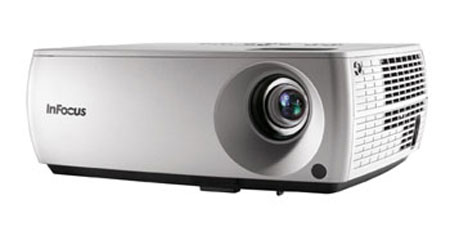

InFocus Work Big IN2104 DLP Portable Video Projector
InFocus IN2104 MSRP: $749
Overview
The Work Big IN2104 is made for heavy-use with moderate-high resolution sources, featuring XGA-native resolution of 1024x768. This model is ideal for users who typically connect to newer 4:3 laptop and desktop computer sources, document cameras and digital scopes to create collaborative work environments.
The IN2104 will perform at a higher level than the IN2102 because every pixel on-screen is reflected from an individual mirror in the chipset, providing a larger, clearer projected image. The InFocus IN2104 DLP® projector with BrilliantColor™ technology and 5 segment color wheel displays realistic colors and brighter images that last.
Performance
Powered by 2500 Lumens, the IN2100 series project bright images in high ambient light environments. The 2000:1 contrast ratio preserves detail in dark images.
The lamp lasts up to 3000 hours and when necessary can be quickly changed without removing an installed projector from the ceiling
Connectivity & Control
Advanced connectivity choices include multiple computer and audio inputs – so it’s easy to switch between presenters; a Wireless-Ready port for an easy upgrade to InFocus’ LiteShow II, for a less expensive ceiling mounted installation; RS232 port for integration with industry -standard meeting room control systems.
Reliability & Security
The IN2100 projectors are dust-free systems. There aren’t any fan filters or lamp screens to change, which makes for 24x7 certified operation, providing around the clock, maintenance free projection.
Security – Kensington lock and PIN code feature will keep the projector in the proper location and under authorized use.
Features
- 2500 ANSI Lumens
- 2000:1 Contrast Ratio
- Native 1024 x 768 XGA Resolution
- 4:3 Native Aspect Ratio
- Weighs 3.1 kg / 6.9 lbs
- Dust-free systems (fan filters or lamp screens to change)
- Kensington lock and PIN code
Specifications
Display |
Native Aspect Ratio: |
4x3 |
Supported Aspect Ratio: |
16:9, 4:3, 5:4 |
Brightness: (max ANSI lumens) |
High Bright: 2500 Lumens
Eco Mode: 1800 Lumens |
Contrast Ratio: |
2000 : 1 Full On/Full Off |
Display Technology: |
DLP by Texas Instruments: 0.55" LVDS DDP2230 with Brilliant Color |
Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024) |
Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
Color Wheel (DLP Only): |
5-segment |
Native Resolution: |
XGA |
Projector Placement: |
Ceiling Projection, Front Projection, Rear Projection |
SMPTE Brightness: |
Not Available |
Lamp Wattage: |
High Bright: 200 Watts
Eco Mode: 170 Watts |
Lamp Life: |
Whisper: 2500 Hours
High Bright: 3000 Hours |
Minimum Image Size: |
2.00 ft (0.61 m) |
Maximum Image Size: |
19.98 ft (6.09 m) |
Standard Lens Zoom: |
1.1 : 1 |
Standard Lens Throw Ratio: |
1.97 - 2.16 (Distance/Width) |
Standard Lens Image Offset Ratio: |
115% |
Standard Lens Projection Distance: |
3.93 - 32.80 ft (1.2 - 10 m) |
Digital Keystone Correction (Vertical): |
+20°/-20° |
Digital Keystone Correction (Horizontal): |
Not Available |
Lens Shift: |
Not Available |
Inputs and Outputs |
DVI: |
Not Available |
M1: |
Not Available |
HDMI: |
Not Available |
BNC: |
Not Available |
Component (RCA): |
Number of Inputs: 2
requires optional VGA to Component adapter. |
VESA (HD15): |
Number of Inputs: 2
15-pin VGA |
S-Video: |
Number of Inputs: 1
4-pin mini-DIN |
Composite (RCA): |
Number of Inputs: 1 |
Standard Definition TV: |
Composite RCA, S-Video |
Enhanced Definition TV: |
VGA |
High Definition TV: |
VGA |
Computer: |
VGA |
HDCP Support: |
Yes |
Stereo RCA Jacks Inputs: |
No |
Stereo 3.5 mm Mini-jack Inputs: |
Yes |
12v trigger for motorized screens (3.5 mm mini-jack): |
No |
Projector Control: |
Projector Keypad, Remote, USB, RS-232 |
Speakers: |
2.0 Watt mono speaker |
Monitor Output: |
Yes |
Audio Output: |
3.5mm mini-jack output for computer and video |
Compatibility |
Data Compatibility: |
VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024) |
H-Sync Range: |
31 - 79kHz |
V-Sync Range: |
50 - 85Hz |
Video Compatibility: |
Full NTSC, PAL, SECAM, 480i, 576i, 480p, 576p, 720p, 1080i |
General |
Audible Noise: |
35 dB |
Actual Dimensions: |
Height: 3.9 in (9.91 cm)
Length: 9 in (22.86 cm)
Width: 11.7 in (29.72 cm) |
Actual Weight: |
6.9 lbs (3.13 kg) |
Shipping Dimensions: |
Height: 9.4 in (23.88 cm)
Length: 13 in (33.02 cm)
Width: 16.5 in (41.91 cm) |
Shipping Weight: |
11.6 lbs (5.26 kg) |
Projector Warranty: |
2 years |
Lamp Warranty: |
6 months |
Accessories Warranty: |
90 days |
Operating temperature:
(at sea level) |
41 - 88° F (5 - 31.11° C) |
Maximum Altitude Supported: |
10000 ft (3048 m) |
Typical Power Consumption: |
220 Watts |
Maximum Power Consumption: |
250 Watts |
Power Supply: |
100 - 240 Volts at 50 - 60 Hz |
Menu Languages: |
English, French, German, Italian, Norwegian, Portuguese, Simplified Chinese, Spanish, Korean, Russian, Traditional Chinese, Danish, Dutch, Finnish, Polish, Swedish, Turkish |
Approvals: |
UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia), MIC & eK (South Korea), PSB (Singapore) |
|
