Mitsubishi HD4000U DLP Widescreen Video Projector

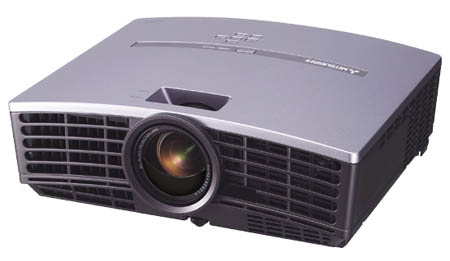

Mitsubishi HD4000U Video Projector

Mitsubishi HD4000U MSRP: $3,995

Overview

Widescreen images move easily from your desktop to the conference room – or even the family room – with the HD4000U, our first WXGA, multimedia projector. This, high-brightness, DLP® high-definition projector is specially designed for wide-format laptops and imaging applications that use the 16:9 wide aspect ratio. Use it in the classroom, conference room, or in other spaces with ambient light. Or use it in your trade show booth, retail store, or showroom for eye catching displays. The true WXGA (1280x768) resolution of this high definition projector lets you display more content on screen.

In the Boardroom, or at Home, You’ll See Our Color Technology at Work
The HD4000U includes the latest DDP3020 TrueVision™ Image Processing with BrilliantColor™ to bring you truer, more vibrant colors, for an image that’s visually comparable to similar multimedia projectors with much higher brightness specs. BrilliantColor™ for DLP technology uses a new color-processing algorithm to move beyond standard 3-color processing to a 6-color process that more accurately captures the true color common in video and nature scenes. The technology enables a greater than 50% brightness increase in mid tone images for video projectors. Since it’s a true high definition projector that means it can be your choice for home entertainment as well.

Engineered for Long-Term Value
Our low maintenance design and strong warranty give you long-term value too. This multimedia projector carries 3-year parts and labor warranty, and three years on Mitsubishi’s Express Replacement Assistance (ERA) program. Our filter-free design resists dust and dirt with no clogged filters to clean or change, reducing maintenance costs.

Features

  • 2000 ANSI Lumens
  • 2000:1 Contrast Ratio
  • WXGA 1280 x 768 resolution (True Wide XGA Format)
  • Weighs 6.5 lbs
  • Color Wheel 5-segment (RGBWY)
  • HDMI Input for True HD
  • Filter-Free: Resistant to dust and dirt, no clogged filters
  • Security Features: Kensington lock and PIN code

Specifications

Display
Imaging Technology 0.65", 1-Chip DMD, 12 deg. LVDS, Dark Chip 2™ with DDP3020
Brightness/Lumens 2000 ANSI Lumens
Native Resolution 1280 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-275 inches diagonal
Contrast Ratio 2500 : 1 (on/off)
Color Wheel 5-segment (RGBWY)
Lens
Lens Throw Ratio 1.63 - 1.97
Zoom & Focus Adjustment Manual Focus & Zoom Lens
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot Clock] max 110 MHz
Interface
NTSC, PAL, SECAM NNTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), SCART (RGB + 1V sync)
Computer/Video Input Support RGB: Mini D-sub 15pin x 1, HDMI x 1
Video: RCA x 1 + S-VIDEO x 1, RCA (Y, CB, CR) x 1
Audio: N/A
Computer Monitor Loop-Out 12V Trigger Out; Stereo mini jack (ø 3.5mm) x 1
RS-232 Communication Support RS-232C (8pin) x 1 (Direct command is available), USB (Only for service)
Audio Speaker/Audio Out N/A
USB Mouse Support No
Lamp
Lamp Life/Backlight 4000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-HC900LP)
Physical
Weight 6.5 lbs.
Dimensions (W x H x D) 12.2" x 3.9" x 9.6"
Power Consumption 340W/3.5A
Power Requirements AC 100-240V, 50/60Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty, 3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
AC Power cable, RGB cable, RS-232C cable, Remote Unit (incl. Battery), Quick Start Card, User Manual CD, Safety Manual, Light Shade Cover
