Mitsubishi HL650U 3LCD Ultra Portable Video Projector

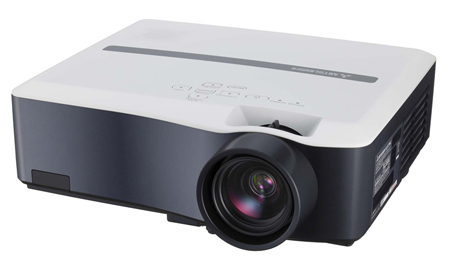

Mitsubishi HL650U Video Projector

Mitsubishi HL650U MSRP: $5,995

Overview

Compare the HL650U SXGA+ LCD projector to other SXGA+ projectors and you’ll quickly see that Mitsubishi has again jumped ahead in the latest technology and portable projector design. Super extended Graphics Array (SXGA+) bumps your images up to a high resolution 1400x1050 format to meet the needs of higher resolution for PC computers.

Lock in Intricate Detail and Real-life Colors
The color technologies in this LCD projector lock in intricate details and real-life colors with every presentation. sRGB technology ensures true color reproduction by matching hue variations in the color spectrum. With 3D Color Uniformity, Color Wall Correction, and its long life inorganic LCD panels, the longevity of the HL650U will give you uniform hues across your entire screen - or even on colored walls. And its 3100 ANSI lumens and 600:1 contrast rating gives you clear images even in large spaces or rooms with ambient light.

Ultraportable and Network Ready
Also impressive is the versatile, ultraportable design of this SXGA+ projector in a package that weighs under 11 lbs. You can move this portable projector among many classrooms and conference rooms, and into large meeting spaces as well. If you want to install it permanently, its side-loading lamp design gives you convenient maintenance for lamp changes.

Along with the amazing SXGA+ picture quality of this LCD projector, administration and control is easy too. The integrated LAN interface and ProjectorView™ software enable you to connect this SXGA+ projector to your network for remote management from your PC. Then secure your portable projector with its anti-theft anchor and the user-selectable password that can lock out menu functions to prevent unauthorized changes or tampering with projector settings.

Long-Term Value
This LCD projector is rated with a lamp life of up to 5000 hours (low mode). And Mitsubishi’s exclusive 3-year Express Replacement Assistance (ERA) program and 3-year parts and labor warranty ensure long-term value.

Features

  • 3500 ANSI Lumens
  • 600:1 Contrast Ratio
  • 1400 x 1050 (SXGA+) native resolution
  • 5000 hours lamp life
  • Digital Keystone Correction
  • Password Menu Lock
  • Anti-theft Security Anchor
  • 3D Color Uniformity Correction: Eliminating the problem of dissimilarity in colors by taking a sample of the image color at the center of the picture and matching these sample colors throughout the entire image to create a uniform hue.
  • sRGB Support: Compatible with Microsoft color profile standards.

Specifications

Display
Imaging Technology 0.8" 3-LCD (with Micro Lens)
Brightness/Lumens 3100 ANSI Lumens
Native Resolution 1400 x 1050
Maximum Resolution 1600 x 1200
Viewable Size 40-300 inches diagonal
Contrast Ratio 600 : 1 (on/off)
Color Wheel N/A
Lens
Lens Throw Ratio 1.47 - 1.78
Zoom & Focus Adjustment Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 -100 kHz, [V] 50 - 120 Hz, [Dot Clock] max. 162 MHz
Interface
NTSC, PAL, SECAM NTSC / NTSC 4.43 / PAL including PAL-M, N) / SECAM/ PAL-60, Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), 1080p(1125p 50/60Hz), (1080i(1250i 50Hz) is not available)
Computer/Video Input Support PC ; Mini D-Sub 15pin x 2, DVI-D(with HDCP) x 1, Audio: Stereo mini jack (ø3.5mm) x2, Video ; RCA x 1 , S-VIDEO x 1, Video Audio ; RCA (L,R) x 2
Computer Monitor Loop-Out Yes
RS-232 Communication Support LAN (RJ-45) x 1 (Projector control), RS-232C D-Sub 9pin x 1 (Direct command is available)
Audio Speaker/Audio Out 3 Watt Mono; Audio In - PC Audio; Stereo mini jack (ø 3.5mm) x 2; Video Audio ; RCA (L,R) x 2; Audio Out - Audio; Stereo mini jack (ø 3.5mm) x 1
USB Mouse Support Yes
Lamp
Lamp Life/Backlight 5000 hours (low mode)
Usage Replacement Lamp Replacement Lamp (VLT-XL650LP)
Physical
Weight 10.8 lbs.
Dimensions (W x H x D) 13.1" x 4.4" x 10.7"
Power Consumption 380 W/3.9A
Power Requirements AC 100-240V, 50/60Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty
Included Accessories
AC Power Cable: 2.9m / 9.5 ft, AV Cable 1.5m / 4.3 ft (3 wire), RGB cable: 1.8m / 5.9ft, USB cable 1.8m / 5.9ft (for Mouse), RS-232C cable 1.8m / 5.9ft, Remote Unit ( incl. Battery ), Soft Carrying Case, User Manual CD (Eng/Fre/Ger/Ita/Spa/Chi/Port), Safety Manual & Quick Start Card
