Mitsubishi SD105U DLP Micro Portable Video Projector

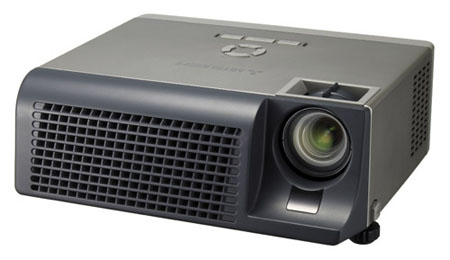

Mitsubishi SD105U Video Projector

Mitsubishi SD105U MSRP: $699

Overview

The SD105U DLP portable projector brings you SVGA resolution at a fantastic price. Yet it still packs all the remote control, networking, and design features you need to make the projector operation and administration easy. Its a lightweight 6.4 lbs. ultraportable design, so it fits a variety of applications for business, education, government or other organizations. You can carry this portable projector on the road to trade shows or to presentations from your small or home-based business.

Big Features, Great Price, Easy Operation
This SVGA projector (800 x 600 native resolution) delivers a rare blend of Mitsubishi quality at a value price, with big-budget features. One of those features is the integrated RS232c port for remote control of your projector from a PC. That lets you integrate it with third party control systems for easy system administration. Adding to the affordability of this portable projector is our filter-free design that resists dust and dirt and eliminates the need to clean or change clogged filters, reducing maintenance costs.

You can view your presentation, and keep engaged with your audience, by attaching your computer to the Monitor Loop port. This VGA output lets you route a second feed of your presentation to your computer, so you can present to your audience face to face. This SVGA projector also includes digital keystone correction (vertical only) allowing you to set up in challenging presentation environments.

Long Lamp Life and the Backing of Mitsubishi
This SVGA projector features an extended lamp life of up to 4000 hours (low lamp mode). And you get a 2-year limited parts and labor warranty, and two years on Mitsubishi’s exclusive Express Replacement Assistance (ERA) program.

Features

  • 1600 ANSI Lumens
  • 1800:1 Contrast Ratio
  • 800 x 600 native resolution
  • Ultraportable design - only 6.4 lbs
  • Integrated RS232c port
  • Filter-Free: Resistant to dust and dirt, no clogged filters
  • Extended lamp life of up to 4000 hours
  • Digital Keystone Correction

Specifications

Display
Imaging Technology 0.55", 1-Chip DMD, 12 deg. DDR, DDP2000
Brightness/Lumens 1600 ANSI Lumens
Native Resolution 800 x 600
Maximum Resolution 1024 x 768
Viewable Size 40-300 inches diagonal
Contrast Ratio 1800 : 1 (on/off)
Color Wheel 4-segment (RGBW)
Lens
Lens Throw Ratio 1.8 - 1.9
Zoom & Focus Adjustment Manual Focus & Zoom Lens (zoom ratio 1.1:1)
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot Clock] max 110 MHz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Computer/Video Input Support RGB: Mini D-sub 15pin x1, Video: RCA x1, S-VIDEO x1, Audio: Stereo mini jack (f3.5mm) x1
Computer Monitor Loop-Out Yes
RS-232 Communication Support Yes
Audio Speaker/Audio Out 1W Mono
USB Mouse Support Yes - MS PowerPoint Page Up/Down only
Lamp
Estimated Lamp Life Rating 4000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-XD105LP)
Physical
Weight 6.4 lbs.
Dimensions (W x H x D) 10.1" x 3.5" x 8.8"
Power Consumption 260W
Power Requirements AC 100-240V, 50/60Hz
Service and Support
2-Years Limited Parts and Labor Warranty, 2-Years Express Replacement Assistance (ERA), 3-Years or 10,000-hours on the TI-DLP® DMD Chip (Main imaging device), 90-Days lamp warranty
Included Accessories
Composite cable, Owner’s manual (CD-ROM), Quick Guide/Safety Manual, Remote control, Power cable, VGA (D-sub) cable, soft carry case
