Mitsubishi WD2000U DLP Widescreen Video Projector

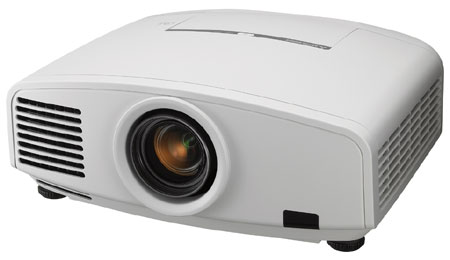

Mitsubishi WD2000U Video Projector

Mitsubishi WD2000U MSRP: $5995

Overview

Your world just got wider. The Mitsubishi WD2000U WXGA DLP® HD projector is the A/V professional’s dream, with wide screen 16x9 (1280x768) display format for true high-definition 10-bit output. As a conference room projector, it delivers the ultimate in beautiful wide-format display from your PC or laptop. You’ll see Mitsubishi’s Color Enhancer technology and Texas Instruments’ DDP3020 TrueVisionv™ Image Processing with BrilliantColor™, for exceptional brightness, truer colors and smoother images. BrilliantColor™ for DLP technology uses a new color-processing algorithm to move this multimedia projector beyond standard 3-color processing to a 6-color process that more accurately captures the true color common in video and nature scenes. The technology enables a greater than 50% brightness increase in mid tone images for video projectors.

An HD Projector With More Brightness for Your Largest Meeting Spaces
Combined with an extra-bright 3000 ANSI Lumens, you can view the sharpest images in a variety of settings. Use it as a conference room projector or inlecture halls or other spaces with ambient light. Large spaces are a specialty for this DLP multimedia projector, such as auditoriums or churches. Or place it in your biggest trade show booths or showroom for eye catching displays. We’ve thought of you on the installation side too with a variety of optional lenses, a hushed 27 dBA operating noise level, and an RJ-45 port for ProjectorView™ control though a LAN connection. You can easily adjust horizontal or vertical keystone problems with motorized lens shift for installing and displaying even in the most challenging spaces.

Engineered for Long-Term Value
Our low maintenance design and strong warranty give you long-term value too. This multimedia projector carries 3-year parts and labor warranty, and three years on Mitsubishi’s Express Replacement Assistance (ERA) program. Our filter-free design resists dust and dirt with no clogged filters to clean or change, reducing maintenance costs.

Features

  • Native Resolution 1280 x 768
  • Brightness/Lumens 3000 ANSI Lumens
  • Contrast Ratio 2000 : 1 (on/off)
  • Color Wheel 5-segment (RGBWY)
  • Filter-free design keeps dust away
  • HDTV Compatible
  • 15:9 Native Aspect Ratio
  • DVI-D Input (HDCP)
  • Cable Cover to hide those straggling cables and cords.
  • RJ45 LAN Management Control

Specifications

Display
Imaging Technology 0.65", 1-Chip DMD, 12 deg. LVDS, DarkChip 2™ with DDP3020
Brightness/Lumens 3000 ANSI Lumens
Native Resolution 1280 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-275 inches diagonal
Contrast Ratio 2000 : 1 (on/off)
Color Wheel 5-segment (RGBWY)
Lens
Lens Throw Ratio 1.69 - 2.26
Zoom & Focus Adjustment Manual Focus and Zoom Lens
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 100 kHz, [V] 50 - 95 Hz, [Dot Clock] max 140 MHz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz) SCART (RGB + 1V sync)
Computer/Video Input Support RGB: Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1, Audio: Stereo mini jack (ø 3.5mm) x 2, Video: RCA x 1 or BNC x 1, S-VIDEO x 1 or BNC (Y, C) x 1, Audio: RCA (LR) x 2
Computer Monitor Loop-Out RGB: Mini D-sub 15pin x 1, Audio: Stereo mini jack (ø 3.5mm) x 1, DC OUT 5V 1.5A (Max)
RS-232 Communication Support Yes
Audio Speaker/Audio Out 3 W Mono
USB Mouse Support USB (for mouse) x 1, Wired remote in/out
Lamp
Estimated Lamp Life Rating 5000 hours (low mode)
Usage Replacement Lamp Replacement Lamp Bulb (VLT-XD2000LP)
Physical
Weight 18.8 lbs.
Dimensions (W x H x D) 16.9" x 6.5" x 12.9"
Power Consumption 420W/4.2A
Power Requirements AC 100-240V, 50/60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty, 3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
AC Power cable, AV cable, RGB cable, USB cable, RS-232C cable, Remote cable, Terminal cover, Safety Manual, Remote Unit (incl. Battery), User Manual CD
