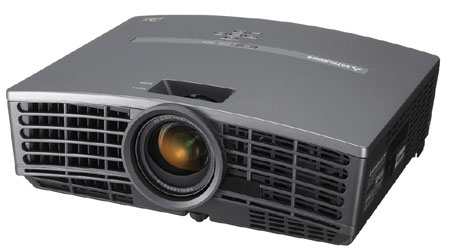

Mitsubishi XD460U DLP Micro Portable Video Projector
Mitsubishi XD460U MSRP: $5495
Overview
For eye-catching visuals as a conference room or classroom projector, the XD460U XGA DLP ultra portable projector is a compact projector featuring the brightness and contrast you need for spaces with ambient light: 2600 ANSI lumens and a 2500:1 contrast ratio. Use it as a classroom projector or in large multipurpose and meeting rooms. Move it easily from classroom to classroom, or use it as a shared projector among many locations. Its compact size is also perfect for setting up attention getting trade show or showroom displays.
Features
- Brightness 2600 ANSI Lumens
- Resolution 1024 x 768
- Contrast Ratio 2500 : 1 (on/off)
- Weighs 6.5 lbs
- HDTV Ready
- 4:3 Native Aspect Ratio
Specifications
| Display |
| Imaging Technology |
0.7", 1-Chip DMD, 12 deg. LVDS, Dark Chip 3 with DDP3020 |
| Brightness/Lumens |
2600 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40-300 inches diagonal |
| Contrast Ratio |
2500:1 (on/off) |
| Color Wheel |
5-segment (RGBWY) |
| Lens |
| Lens Throw Ratio |
1.63 - 1.97 |
| Zoom & Focus Adjustment |
Manual Focus & Zoom Lens |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 100 kHz, [V] 50 - 95 Hz, [Dot Clock] max 140 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC/NTSC 4.43/PAL including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz) |
| Computer/Video Input Support |
RCA x 1 + S-VIDEO x 1 |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
RS-232C (8pin) x 1 (Direct command is available) |
| Audio Speaker/Audio Out |
2W Mono |
| USB Mouse Support |
USB (for mouse) x 1 |
| Lamp |
| Estimated Lamp Life Rating |
5000 hours (low mode) |
| Physical |
| Weight |
6.5 lbs. |
| Dimensions (W x H x D) |
12.2" x 3.9" x 9.6" |
| Power Consumption |
340W/3.5A |
| Power Requirements |
AC 100-240V, 50/60 Hz |
| Service and Support |
| 3-years or 10,000-hours on the TI-DLP DMD Chip, 3-years part and labor, 3-years Express Replacement Assistance (ERA), 1-year or 1000-hours lamp warranty |
| Included Accessories |
| RS-232C cable, Remote Unit (incl. Battery), Soft Carrying Case, Quick start manual, Quick Start Card, User Manual CD, Safety Manual, AC Power Cable, AV cable, RGB cable, USB cable |
|
