Mitsubishi XD470U DLP Micro Portable Video Projector

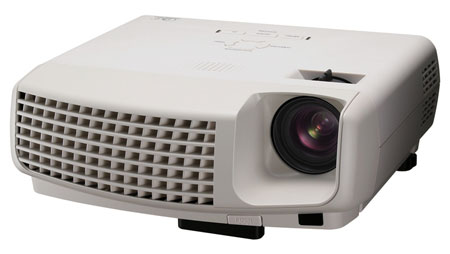

Mitsubishi XD470U Video Projector

Mitsubishi XD470U MSRP: $3995

Overview

The XD470U XGA DLP projector combines great Mitsubishi performance, Digital Light Processing Technology from Texas Instruments and low cost of ownership. It features 3000 ANSI lumens of brightness and 2000:1 contrast ratio producing a bright and detailed image even when the lights are on. Also, when your presentation is done and the room is booked for the next hour, the quick power-down feature lets you pick up and go quickly with a minimal cool down cycle. It’s a great choice for use as a business, government, house of worship, or classroom projector.

A Versatile, Value-Priced Classroom or Conference Room Projector
The budget-priced XD470U classroom projector includes the features you need for versatility. Convenient features include two PC inputs with a monitor loop output, an RS-232c port for integrated control, and a security lockbar for securing your projector to a table or cart with a standard cable lock.

Sharp Clear Images
As a conference room or classroom projector, the XGA resolution (1024 x 768 resolution) of the XD470U produces rich and vibrant colors to help attract and grab your audience attention. This DLP® projector also gives you a 2000:1 contrast rating for clear, detailed images every time.

Low Cost of Ownership
Start with an economical price and the long life we engineer into every Mitsubishi DLP projector, including a three-year limited warranty on parts and labor. Add an advanced filter-free design, a three-year or 10,000-hour limited warranty on the DLP® DMD Chip, a lamp life of up to 3000 hours (low mode) and Mitsubishi exclusive Express Replacement Assistance (ERA) Program and you will see the additional benefits of owning a Mitsubishi projector.

Features

  • Brightness 3000 ANSI Lumens
  • Resolution 1024 x 768
  • Contrast Ratio 2000 : 1 (on/off)
  • Weighs 6.2 lbs
  • 4:3 Native Aspect Ratio

Specifications

Display
Imaging Technology 0.55" 1-Chip DMD, 12deg.DDR, DDP2000
Brightness/Lumens 3000 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-300 inches diagonal
Contrast Ratio 2000:1 (on/off)
Color Wheel 4-segment (RGBW)
Lens
Lens Throw Ratio 1.57-1.87
Zoom & Focus Adjustment Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 15 - 80kHz, [V] 50 - 85Hz, [Dot Clock] Max. 110MHz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Computer/Video Input Support RGB: Mini D-sub 15pin x 2
Video: RCA x 1
S-VIDEO x 1
Audio: Stereo mini jack (ø3.5mm) x 1
Computer Monitor Loop-Out Yes
RS-232 Communication Support RS232c (Dsub 9 pin) x 1
Audio Speaker/Audio Out 2W Mono
USB Mouse Support Yes - MS PowerPoint Page Up/Down only
Lamp
Estimated Lamp Life Rating 3000 hours (low mode)
Usage Replacement Lamp Replacement Lamp (VLT-XD470LP)
Physical
Weight 6.2 lbs.
Dimensions (W x H x D) 10.3" x 3.4" x 10.4"
Power Consumption 380W/3.5A
Power Requirements AC 100-240V. 50/60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty, 3-Years or 10,000-hours on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
User Manual (CD-ROM), Quick Guide/Safety Manual, Remote control (w/batteries), Power cable, VGA (D-sub) cable, Composite cable, Soft carry case for projector, Lens cap
