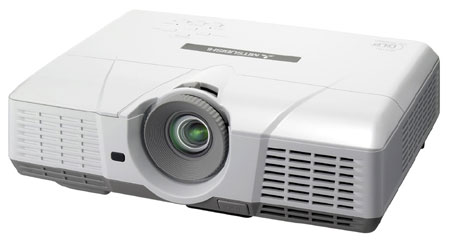

Mitsubishi XD520U Micro Portable DLP Video Projector
Mitsubishi XD520U MSRP: $4995
Overview
The Mitsubishi XD520U DLP projector is engineered with technology that produces rich colors and high brightness. It includes the latest Texas Instruments DDP2230 chip set that gives your video projector presentations BrilliantColorTM performance. This XGA video projector produces a bright 3000 ANSI lumens image with an amazing 2000:1 contrast ratio making it ideal for video projector presentations in classrooms, conference rooms, or other spaces with lots of ambient light.
An XGA Projector with Vivid 6-Color Video
Adding the new TI chip set and our six-segment color wheel enables the XD520U DLP® projector to produce a wider color palette by blending cyan and yellow segments in addition to the standard red, green, white and blue. Plus the addition of a variable illumination technique makes selected colors more vivid by automatically adjusting the lamp power while maintaining the overall brightness of your Mitsubishi XD520U digital projector.
Versatile Data/Video Projector With Convenient Top Loading Lamp
Its compact 7.0 lbs design makes it a mobile digital projector. Or for permanent installations, we’ve added a center lens design and convenient top loading lamp for easy access in ceiling mount installs. This Mitsubishi video projector includes VGA (D-sub) and composite cables for computer or video input.
Added Mobile Projector Features and Accessories
The Mitsubishi XD520U DLP projector enables you to project on colored walls by compensating for those colors via a simple setting. It also controls "hotspot" reflections for projecting on white boards. Digital projector keystone correction keeps your presentations proportional. It also includes remote for full DLP projector control and page up/down, password menu lock security, and a soft case to protect it in transport.
Long-Term Projector Value
You can always count on trouble-free operation, with up to 3,000 hours of lamp life (low mode), a 3-year parts and labor warranty, 3-years on Mitsubishi’s exclusive Express Replacement Assistance (ERA) program and a amazing 1-year or 500 hours lamp warranty (whichever comes first).
Features
- Native 1024 x 768 XGA resolution
- 3000 ANSI lumens brightness
- 2000:1 contrast ratio
- 6 segment colour wheel
- RS-232 support
- Portable 7 lbs design
- Up to 3,000 hours of lamp life
- Wall screen support
- Filter-free design keeps dust away
Specifications
| Display |
| Imaging Technology |
0.55" 1-Chip DMD, 12 Degree LVDS, DDP 2230 |
| Brightness/Lumens |
3000 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40-300 inches diagonal |
| Contrast Ratio |
2000:1 (on/off) |
| Color Wheel |
6 Segment Color Wheel (R/G/B/W/Y/C) |
| Lens |
| Lens Throw Ratio |
1.6 - 1.96 |
| Zoom & Focus Adjustment |
Manual Focus & Zoom Lens (Zoom Ratio 1.2:1) |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 80 kHz, [V] 50 - 85 Hz, Dot clock max.110 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i(1125i 60Hz), 1080i(1125i 50Hz) |
| Computer/Video Input Support |
RGB ; mini D-sub 15pin x 2; PC Audio; Stereo mini jack (ø3.5mm) x 1; Video ; RCA x 1 + S-VIDEO x 1, Video Audio ; RCA jack (L/R) x 1 |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
RS232C; D-sub 9pin x 1 |
| Audio Speaker/Audio Out |
2 W Mono |
| USB Mouse Support |
USB terminal for Page Up/Down |
| Lamp |
| Estimated Lamp Life Rating |
3000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp Bulb (VLT-XD520LP) |
| Physical |
| Weight |
7 lbs. |
| Dimensions (W x H x D) |
13.1" x 4.0" x 9.8" |
| Power Consumption |
330W/3.3A |
| Power Requirements |
AC 100 - 240 V, 50/60HZ |
| Service and Support |
| 3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), and an amazing 1-Year or 500 hours lamp warranty (whichever comes first) |
| Included Accessories |
| Soft carrying bag, Remote control (With 2 batteries), Power cable x1, VGA(D-sub) cable x1, Composite cable, User-Manual (CD-ROM), Quick Guide/Safety Manual, Lens Cap |
|
