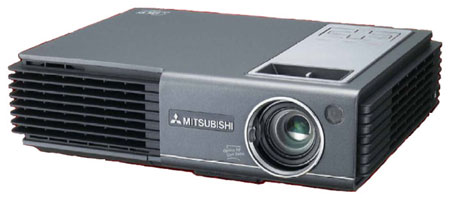

Mitsubishi XD90U DLP Pico Portable Video Projector


Mitsubishi XD90U Video Projector

Mitsubishi XD90U MSRP: $2995

Overview

When you’re on the road, the new Mitsubishi XD90U DLP XGA projector can free your mind to focus on the important things. Set it down and turn it on: the built-in lens cover slides away (you’ll never lose another). Then the projector can quickly adjust your projected image to proper proportions with automatic keystone correction. And at a compact 2.9 lbs, it’s the perfect laptop projector. This portable DLP projector is great for sales staff, trainers, or road warriors from all walks of life, be it education, business, government or organizations.

Got a plane to catch when you’re done? No problem. With the Quick Shut Down option, you can turn off this portable projector, pick it up, and be on your way in seconds without waiting for a long cooling cycle. The XD90U projector even turns itself off when no input source is detected for a period of time. That saves projector lamp hours, eliminates the chance of overheating, and extends the life of your projector. It practically runs itself, but any menu functions you do need are easily accessible from a lighted keypad so you don’t even need to turn up the lights.

sRGB Makes Presenting With This DLP Projector Better Than Ever
sRGB technology ensures true color reproduction by matching hue variations in the color spectrum giving you greater color consistency across different display devices. And this DLP projector gives you 1500 ANSI lumens and a 2000:1 contrast for clear images even in rooms with ambient light.

A Micro-Portable Projector, But Built for Security and Long Life
The XD90U has a Kensington lock slot that allows you flexibility to make sure this laptop projector is secured to media carts or tables. You can also lock out unauthorized users by setting password access to projector functions.

With up to 3,000 hours of lamp life (low mode), a 3-year parts and labor warranty, three years on Mitsubishi’s exclusive Express Replacement Assistance (ERA) program, and filter-free design will you’ll get trouble-free operation from this Mitsubishi XGA projector for the long haul.

Features

  • Brightness 1500 ANSI Lumens
  • Native resolution 1024 x 768 XGA
  • Contrast Ratio 2000:1 (on/off)
  • Weighs just 2.9 lbs
  • Native 4:3 Aspect Ratio
  • Up to 3000 hours of lamp life
  • Auto-off and quick shutdown
  • Filter-free design keeps dust away
  • Sliding lens cover so you don't misplace the lens cap

Specifications

Display
Imaging Technology 0.7" 1-Chip DMD, DDP2000
Brightness/Lumens 1500 ANSI Lumens
Native Resolution 1024 x 768
Maximum Resolution 1280 x 1024
Viewable Size 40-270 inches diagonal
Contrast Ratio 2000:1 (on/off)
Lens
Lens Throw Ratio 1.79 - 2.10
Zoom & Focus Adjustment Manual Focus & Zoom Lens
Compatibility
PC, MAC Compatibility Yes
Operation
Scanning Frequency [H] 31 - 82 kHz, [V] 48 - 85 Hz
Interface
NTSC, PAL, SECAM NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Computer/Video Input Support RGB: Mini D-sub 15pin x1, Video: RCA x1, S-VIDEO x1
Computer Monitor Loop-Out No
RS-232 Communication Support No
Audio Speaker/Audio Out None
USB Mouse Support Yes - MS PowerPoint Page Up/Down only
Lamp
Estimated Lamp Life Rating 3000 hours (low mode)
Usage Replacement Lamp Replacement Lamp (VLT-XD90LP)
Physical
Weight 2.9 lbs.
Dimensions (W x H x D) 6.8" x 2.6" x 8.6"
Power Consumption 190W/2.2A
Power Requirements AC 100-240V. 50/60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Limited Parts and Labor Warranty,  90-Days lamp warranty, 3-Years or 10,000-hours on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
User Manual (CD-ROM), Quick Guide/Safety Manual, Remote control (w/batteries), Power cable, VGA (D-sub) cable, USB cable, soft carry case for projector, soft carrying case for accessories
