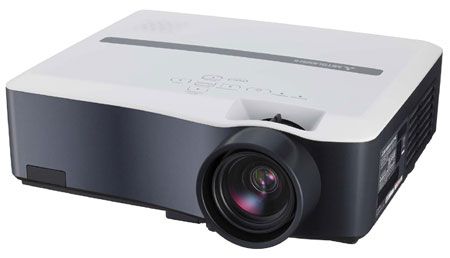

Mitsubishi XL550U Micro Portable 3LCD Video Projector
Mitsubishi XL550U MSRP: $4995
Overview
The Mitsubishi XL550U is a native XGA LCD projector that produces a stunning visual experience with its bright 3100 ANSI lumens and sharp 400:1 contrast ratio. With an ultra-quiet noise level rating of 22dBA (low mode), you will be able to enjoy your viewing experience, instead of listening to unwanted noise. Also with its convenient side loading lamp design, lamp replacements are simplified without being required to turn the projector around or over if ceiling mounted.
Additionally, the XL550U comes with a long lamp life of up to 5000 hours (low mode), an anti-theft security hook for added security, and embedded software that enables administrators to remotely manage their projectors from their own PC systems.
Features
- Native XGA Resolution (1024x768)
- 3100 ANSI Lumens
- 400:1 Contrast Ratio
- Ultra-Quiet 22dBA Noise Level (low mode)
- Convenient Side-Loading Lamp design
- Up to a 5000 hours lamp life (low mode)
- LAN Monitoring Utility
Specifications
| Display |
| Imaging Technology |
0.8" 3-LCD (with Micro Lens) |
| Brightness/Lumens |
3100 ANSI Lumens |
| Native Resolution |
1024 x 768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40-300 inches diagonal |
| Contrast Ratio |
400:1 (on/off) |
| Color Wheel |
N/A |
| Lens |
| Lens Throw Ratio |
1.47 - 1.77 |
| Zoom & Focus Adjustment |
Manual Focus and Zoom |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15-100khz, [v] 50-120Hz, [Dot Clock] max. 140 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60; Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz); SCART (RGB + 1V sync) |
| Computer/Video Input Support |
PC; Mini D-Sub 15pin x 2; DVI-D(with HDCP) x 1; PC Audio; Stereo mini jack (ø3.5mm) x 2; Video; RCA x 1 ,S-VIDEO x 1; Video Audio; RCA (L,R) x 2 |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
LAN(RJ-45) ; x 1 (Projector control);
RS-232C D-Sub 9pin x 1 (Direct command is available.) |
| Audio Speaker/Audio Out |
Stereo mini jack (ø3.5mm) x 1 |
| USB Mouse Support |
USB ; for Mouse Cursor Control |
| Lamp |
| Estimated Lamp Life Rating |
5000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp Bulb (VLT-HC550LP) |
| Physical |
| Weight |
9.9 lbs. |
| Dimensions (W x H x D) |
13.1” x 4.6” x 10.7” |
| Power Consumption |
290W/2.9A |
| Power Requirements |
AC 100-240V, 50/60Hz |
| Service and Support |
| 3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), and 90 days on lamp |
| Included Accessories |
| AC Power cable, AV Cable, RGB cable, USB Cable, RS-232C cable, Remote Unit (incl. battery), Soft Carrying Case, User Manual CD, Safety Manual |
|
