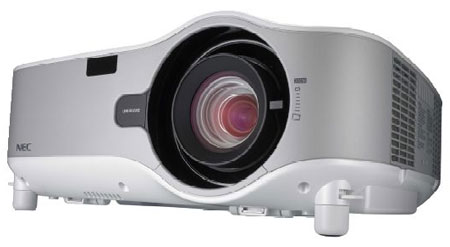

Brighten up your integration projects with the high-performance NEC NP3150 installation projector. This model, which delivers remarkably bright images and feature easy-to-use networking technologies, features XGA (1024 x 768) native resolution, 600:1 contrast ratio and up to 3000 hours of lamp life (in Eco-Mode™). With its multitude of advanced features, this model is ideal for corporate boardrooms, training facilities and education settings.
| Display Technology |
0.8" LCD with MLA |
| Resolution |
|
| Native |
XGA 1024 x 768 |
| Maximum |
UXGA 1600 x 1200 |
| Light Output (lumens) |
5000 normal |
| Contrast Ratio |
600:1 |
| Lamp Type |
330W AC |
| Lamp Life (up to) |
2000 hours normal / 3000 hours eco |
| Screen Size (diagonal) |
25 to 500 in, 635 to 12,700mm |
| Throw Ratio |
1.5 to 2.0 (standard lens) |
| Projection Distance |
2.5 to 68.5 ft, 0.74 to 20.9 m |
| Projector Angle |
10.3 to 10.8 degrees tele / 13.7 to 14.5 degrees wide |
| Lens |
|
| Zoom |
1 to 1.33 |
| Focus |
Manual |
| F-number, f-number |
F=1.7 to 2.2mm, f=24.4 to 32.5mm |
| Shift |
Manual: 50% vertical, 10% horizontal |
| Keystone Correction |
|
| Signal Compatibility/Connectivity |
|
| Scan Rate |
|
| Horizontal |
15 - 108 kHz |
| Vertical |
48 - 120 Hz |
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i |
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |
| Input/Output Terminals |
|
| RGB 1 (analog) |
15 pin |
| RGB 2 (analog) |
5-BNC |
| RGB 3 (digital) |
DVI-D w/ HDCP |
| Video 1 |
RCA |
| Video 2 |
S-Video |
| Video 3 |
Component |
| HD Video 1 |
|
| HD Video 2 |
|
| Audio |
(2) L/R RCA, (3) mini stereo |
| Monitor out |
Yes |
| Audio out |
mini VAO |
| Audio |
5W speaker |
| External Control |
RS-232, IR |
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
| Networking |
Wired LAN using integrated RJ45, 802.11a/b/g wireless with integrated wireless adapter |
| Electrical |
|
| Power Req. |
100 - 240V AC, 50/60Hz |
| Input Current |
5.9A |
| Power Consumption |
490W |
| Mechanical |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (WxDxH) |
15.7 x 14.1 x 5.9 in. / 399 x 358 x 150mm |
| Net Weight |
16.5 lbs / 7.5 kg |
| Fan Noise |
38dB normal/31dB eco |
| Regulations |
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM |
| Environmental |
|
| Operational Temp. |
41 degrees - 104 degrees F / 5 degrees - 40 degrees C |
| Humidity |
20-80% non-condensing |
| Storage |
14 degrees - 122 degrees F / -10 degrees - 50 degrees C |
| Warranty |
Registered owners receive a 2-year parts and labor warranty including the first year of InstaCare. The lamp is covered for one year or 500 hours, whichever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
| Additional Features |
|
| SquareShot |
|
| VORTEX™ Technology Plus |
|
| Autosense |
Automatically syncs with any computer signal and features one-touch image optimization |
| SweetVision II |
|
| 3D Reform |
Allows you to square the image by adjusting horizontally, vertically or diagonally when the projector cannot be placed parallel or perpendicular to the screen |
| Automatic keystone correction |
|
| Built-in Wall Color Correction |
Provide for adaptive color tone correction to display properly on non-white surfaces |
| Advanced AccuBlend |
Ensures detailed images when non-native resolution sources are connected to the projector |
| Kensington Lock Slot |
Enables security cable to be attached to the projector |
| Image Magnification |
64-step image magnification with location control |
| Sleep Timer |
Can be set to automatically turn off the projector |
| Eco-Mode Technology |
|
| Discreet Source Keys |
For source selection |
| Computer free presentations |
Via USB drive or PCMCIA card inserted directly into the projector allows you to change images using the wireless remote control provided |
| High speed wireless |
IEEE802.11g and improved circuitry provide communication up to three times faster than previous models |
| Direct Power Off |
Protects the lamp by enabling the cooling fan to continue running after power is disconnected |
| In the Box |
Remote control, remote control cable, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, quick start guide, product registration card, wired and wireless network setup guide, PC Card lock, lens anti-theft screw |
