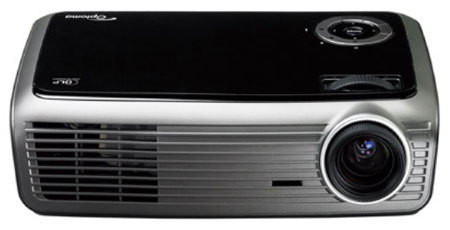

Optoma TX728 DLP Portable Series Video Projector
Optoma TX728 MSRP: ***
Overview
The Optoma TX728 is a DLP video projector that features 2700 ANSI lumens brightness, 2200:1 contrast ratio and features a variety of connectivity options such as DVI w/HDCP. At only 4.4 pounds, the Optoma TX728 is ultra-portable and offers a bold, bright solution for even the most demanding presentation environments.
Features
- Bright at 3200 lumens with a 2200:1 contrast ratio
- Extensive connectivity options: Two VGA-In, DVI w/HDCP, composite video, S-video, RS-232, USB, VGA-Out, four audio-in and one audio-out
- DLP® chipset to ensure images don’t fade or degrade over time
- Latest color processing technologies for remarkable picture quality
- Weighs 6.3 pounds and features a new top-loading lamp replacement form factor
- Presentation-friendly remote control with laser pointer
Specifications
| Display Technology |
0.55” DDR DLP Technology by Texas Instruments |
| Resolution |
Native XGA (1024 x 768) |
| Maximum Resolution |
SXGA+ (1400 x 1050) |
| Brightness (Typical) |
3200 Lumens |
| Contrast Ratio |
2200:1 (Full On/Full Off) |
| Lamp Life and Type |
Estimated at 2000/3000 Hours (STD/ECO)
220W |
| Throw Ratio |
1.95-2.15:1 (Distance/Width) |
| Image Size (Diagonal) |
34.59” to 304” (0.88 to 7.72m) |
| Remote Control |
Fully Featured Remote Control w/Mouse and Laser Pointer |
| Projection Distance |
3.9’ to 39.3’ (1.2 to 12 m) |
| Displayable Colors |
16.7 Million |
| Audio |
One 2-Watt Speaker |
| User Controls |
Complete On Screen Menu Adjustments in 11 Languages |
| Computer Compatibility |
VGA, SVGA, XGA, SXGA+ Resized; PC and Macintosh Compatible |
| Video Compatibility |
NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i) |
| Uniformity |
85% |
| Aspect Ratio |
4:3 Native, 16:9 Compatible |
| Projection Lens |
F = 2.46~2.58, f = 21.79~23.99 mm, 1.10X Manual Zoom and Focus |
| Keystone Correction |
± 15º Vertical |
| Horizontal Scan Rate |
15 to 100 kHz |
| Vertical Refresh Rate |
56 to 85 Hz |
| Monitor Loop Through |
D-Sub 15 VGA Output (Functional in Both Normal and Standby Modes) |
| I/O Connectors |
DVI-D w/HDCP, Two VGA-In, VGA-Out, S-Video, Composite Video, Four Audio-In, Audio-Out, USB, +12V Trigger, RS-232, +5V Trigger |
| Security |
One Kensington® Lock Port |
| Projection Method |
Front, Rear, Ceiling Mount, Table Top |
| Weight |
6.3 lbs (2.9 kg) |
| Dimensions (W x H x D) |
11.51” x 3.73” x 8.66” (295 x 95.7 x 222 mm) |
| Noise Level |
34dB/29dB (STD/ECO) |
| Power Supply |
AC Input 100 - 240V, Auto-Switching |
| Power Consumption |
305 Watts (Maximum), < 10 Watts (Standby) |
| Operating Temperature |
41-95º F (5-35º C) (80% Humidity), Adjustable Fan Speed for High Altitude Application |
| Standard Accessories |
AC Power Cord, VGA to VGA Cable, Composite Video Cable, Lens Cap, Remote Control, Batteries for Remote, Carrying Case, Quick Start Guide, Warranty Card and User’s Manual |
| Optional Accessories |
Ceiling Mount, VGA to Component Cable, S-Video Cable, Audio-Out Adapter and GrayWolfII™ Series Screens |
| Warranty |
3 Years Optoma Express Replacement Service, 1 Year on Lamp |
|
