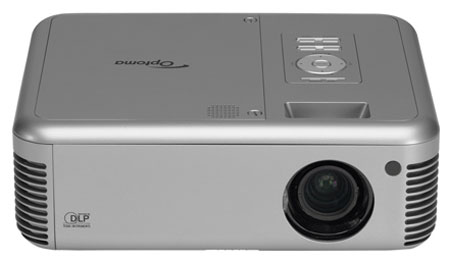

Optoma TX771 DLP Professional Series Video Projector
Optoma TX771 MSRP: ***
Overview
The Optoma TX771 projector redefines the multimedia data projector category. With built-in audio, 3000 lumens, a 2300:1 contrast ratio and a sleek new form factor, the TX771 takes bright and powerful to the next level. An elegant solution to multimedia presentations, Optoma’s TX771 can be classified as a true statement.
Features
- Bright 3000 ANSI lumens with 2300:1 contrast ratio
- Native XGA (1024 x 768) with support up to SXGA+ (1400 x 1050)
- Portable at 7.3 lbs and attractive form factor
- Fully featured IR remote with laser pointer and mouse
- Recessed focus & zoom controls eliminate accidental adjustments
Specifications
| Display Technology |
Single 0.7” XGA DDR DLP® Technology by Texas Instruments |
| Resolution |
XGA (1024 x 768) |
| Maximum Resolution |
SXGA+ (1400 x 1050) |
| Brightness |
3000 ANSI Lumens |
| Contrast Ratio |
2300:1 |
| Lamp Life and Type |
Estimated at 2000/3000/4000 Hours (Bright/STD/ECO)
230W |
| Throw Ratio |
1.8 to 2.1:1 (Distance/Width) |
| Image Size |
27.5” to 306” (0.7 to 7.8 m) |
| Projection Distance |
3.2’ to 39.8’ (1.5 to 12 m) |
| Projection Lens |
F = 2.6 ~ 2.81, f = 26.01 - 29.84mm
1.15:1 Manual Zoom |
|
| Computer Compatibility |
All Resolutions Supported up to SXGA+; PC and Macintosh Compatible |
| Video Compatibility |
NTSC, PAL, SECAM, HDTV ( 480p, 576i/p, 720p, 1080i) |
| Aspect Ratio |
Native 4:3, 16:9 Compatible |
| Vertical Refresh Rate |
50 to 85 Hz |
| Keystone Correction |
± 15° Vertical |
| Audio |
One Internal 3-Watt Speaker |
| Displayable Colors |
16.7 Million, 256 Shades of Gray |
| Uniformity |
85% |
| Remote Control |
Fully Featured IR Remote with Laser Pointer and Mouse |
| Monitor Loop Through |
D-Sub 15pin VGA Output (Functional in Both Normal and Standby Modes) |
| User Controls |
Advanced Adjustability Options Through the On-Screen-Display |
| I/O Connection Ports |
VGA-In, DVI w/HDCP, Composite Video, S-Video, Two Audio-In, USB, RS-232, VGA-Out, Audio-Out, +12V Trigger |
| Projection Method |
Front, Rear, Table Top and Ceiling Mount |
| Weight |
7.3 lbs (3.3 kg) |
| Power Supply |
100-240 Volts, 50-60Hz |
| Operating Temperature |
5 to 35°C, 80% Max Humidity |
| Storage Temperature |
-20 to 60°C, 80% Max Humidity |
| Dimensions (W x H x D) |
11.81” x 3.46” x 9.61” (300 x 100.5 x 244mm) |
| Noise Level |
36dB/33dB/31dB (Bright/STD/ECO) |
| Power Consumption |
290W, <5W Standby Power |
| Standard Accessories |
AC Power Cord, VGA to VGA Cable, Composite Cable, Remote Control, Batteries for Remote, Lens Cap, Carrying Case, CD-ROM User’s Manual, Quick Start Guide and Warranty Card |
| Optional Accessories |
Bering Ceiling Mount, DVI to HDMI Adapter and GrayWolfII™ Series Screens |
| Warranty |
3 Years Optoma Express Replacement Service,
90 Days on Lamp |
|
