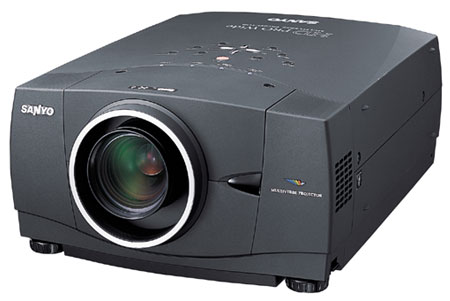

Sanyo PLV-80L Multimedia 3LCD Video Projector

Sanyo PLV-80L MSRP: ***

Overview

Whether it’s for home theater use or professional applications, the Sanyo PLV-80/L projector delivers the brightness you need for superior big-screen environment. A newly developed progressive scan IC improves image quality, and a SANYO original cross-color separation circuit helps achieve superior diagonal resolution. Also offering 2-3/2-2 pulldown compatibility (HDTV compatibility), the PLV-80/L deliver high-quality image projection from film sources.

This gamma correction control function achieves smoother gradation characteristics by adjusting the gradation according to the image being input. Sanyo’s color management function allows adjustment of any color (hue, chroma, gamma value). A narrow hue range can be specified, and as the correction is reflected in real time and true color reproduction with high accuracy can be done.

The PLV-80/L can be connected to a computer network via the optional PJ-Net Organizer (POA-PN40) for management and control capabilities. *E-mail Alert *Automatic On/Off *Web Management by browser *Multi Control *SNMP *Control Port for external/projector

Power lens shift allows for greater placement flexibility by raising or
lowering the image without having to move the projector. X-Y digital keystone correction compensates for angled projector placement by digitally altering the pixels to produce undistorted images both horizontally and vertically.

Features

• 16:9 W-XGA Panel (1366 x 768 dots)
• 3000 ANSI Lumens (Typical)
• 1000:1 Contrast Ratio
• 15 Pin D-Sub, DVI-D with HDCP, and 5 Pin BNC Data Inputs
• Standard, Short Fixed, Short Zoom, Long Zoom, Ultra Long Zoom - Optional Lenses
• Component, Composite, or S Video Input
• HDTV Progressive Scan System & Superior Picture Quality
• Digital Visual Interface (HDCP)
• 1080-24psf/25psf/30psf Signals Compatible
• Weight: 16.3 lbs

Specifications

• Resolution Wide XGA (1,366 x 768)
• Brightness (typical) 3,000 ANSI Lumens
• Uniformity 90% (corner to corner)
• LCD Panel System 1.21” TFT polysilicon type x 3
• Number of Pixels 3,147,264 (1,049,088 x 3)
• Contrast Ratio 1,000:1
• Projection Image (diagonal) 30” - 400”
• Aspect Ratio 16:9
• Throw Distance 4.9’ to 52.2’
• Zoom/Focus Powered; 1:1.3 Zoom
• Up/Down Ratio 7:-1 - 1:1 (with power lens shift)
• Power Lens Shift Up/Down (see Up/Down ratio)
• Digital Keystone Correction Vert. +/- 30°, Horiz. +/- 20°
• Projection System X-Type prism system
• Projection Lens F/1.8 – 2.1; f=1.9” – 2.5”
• Lens Throw Ratio 1.75 – 2.3:1
• Projection Lamp 300W NSH
• Scanning Frequency H 15-100kHz; V 48-100Hz (auto sense/select)
• Dot Clock 180MHz
• Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
• Computer Compatibility UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC
• Sound Output Two-piece, 2W + 2W Stereo
• Voltage 100-240V AC; 50/60/Hz (auto sense/select)
• BTU Rating 1535
• dB Rating 33.0 (linear control)
• Power Consumption 450W
• Dimensions (WxHxD) 12.6”x6.6”x16.9” (not including adjustable feet)
• Net Weight 19.2 lbs.
• User Maintenance Clean air filters, replace lamp assembly
• Input Terminal Panel 1
  • D-Sub 15
  • DVI-D w/HDCP
  • Audio (stereo mini-jack)
• Input Terminal Panel 2
  • 5 BNC (RGBHV) or 3 BNC (Video/Y, C/PB/CB, Pr/Cr)
  • Audio (stereo mini-jack)
• Input Terminal Panel 3
  • 3 RCA (Y,Cb/Cr,Pb/Pr) component / composite
  • S-Video
  • 2 RCA audio (L & R)
• Included Accessories • Wired/Wireless I/R remote control (Two “AA” type batteries included) • AC power supply cord (9.8ft) • Serial control cable (9.0ft) • Lens cover • Owner’s manual (CD-ROM) • Quick Manual
• Optional Accessories • 610 325 2957 - Replacement lamp
  • 945 079 4057 - Replacement remote • POA-PN40 - PJ-Net organizer • PLCCSE15 - Hard shipping case
• Warranty Three years parts and labor; 90 days original lamp; Quick repair program under warranty
• FCC Rating Class “B” consumer product
