Sanyo PLV-Z3000 3LCD Home Theater Video Projector

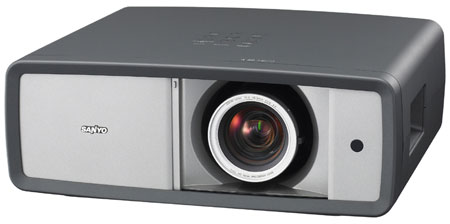

Sanyo PLV-Z3000 Video Projector

Sanyo PLV-Z3000 MSRP: $3,295

Overview

Full High-Definition resolution – 1080p

The PLV-Z3000 unleashes the full 1920 x 1080 high-definition potential from today’s advanced full HD sources. This means rich, deep and accurate colors from SANYO’s exclusive TopazReal HD. TopazReal HD brings together a team of technologies including a variable iris and lamp reactivity, a 14-bit digital signal processing, real-focus HD lens system, and, most importantly, a 3D color management system that addresses changes in color phase and color level to obtain perfect color reproduction. PLVZ3000 uses 120Hz super-fast Full HD panel, which can increase smoothness in videos due to doubled frame rate from 60 frames/second to 120 frames/second using interpolation frame generation technology. The optimization of deep color from the color management system is supported via the projector’s two HDMI 1.3 inputs.

Lens maximization of image detail

Rated at 1200 lumens, the PLV-Z3000 is capable of an incredible 65,000 : 1 contrast ratio for superlative black levels, even in ambient light. Plus it has a newly-developed, high-efficiency lens that maximizes image details for exceptional optical performance.

Advanced lens shift for various room environments

The PLV-Z3000 is outfitted with the industry’s most advanced lens shifting function. When coupled with the projector’s short throw capability and 2x zoom, the PLV-3000 can create a large screen image in any size room and from virtually any location. The lens shifting function allows widerange
shifting up or down to three screen sizes and left to right to two screen sizes. The throw design of the PLV-Z3000, which is capable of projecting a 100-inch diagonal image from 10 to 20 feet away, makes it extremely suitable for small to mid-size home theaters.

Virtually silent fan design

A 1200 lumen projector generates a tremendous amount of heat and requires a high quality fan to ensure proper operation. At this level of brightness, the fan is ‘on’ most of the time and the noise can be extremely loud and disruptive, especially in smaller home theaters where the projector and the audience are in the same vicinity. To promote greater enjoyment of the film and to reduce noise levels during quiet passages of a film, the PLV-Z3000 is equipped with the industry’s quietest fan, a large aperture, low noise Sirocco cooling fan that never rises above 19dB in the economy mode.

Features

  • Full High Definition 1920 x 1080 Resolution (1080p)
  • Bright 1200 ANSI Lumens
  • Fantastic 65000:1 Contrast Ratio
  • 2 Digital HDMI 1.3 Interfaces and Two Sets of Component Video Inputs
  • Connect PC to the Projector via D-Sub 15 Input
  • 14-Bit Digital Processing for Deeper, Richer Images
  • Innovative 3D Color Management
  • 120Hz super-fast Full HD panel
  • Virtually Slient Fan - never rises above 19dB in the economy mode
  • Project a 100-inch diagonal image from 10 to 20 feet away
  • Weighs 11 lbs

Specifications

Resolution 1920 x 1080
Brightness (typical) 1200 ANSI Lumens (vivid mode)
Uniformity 85% (corner to center)
LCD Panel System 0.74” TFT Poly-Silicon x 3 (16:9)
Number of Pixels 6,220,800 (2,073,600 x 3)
Contrast Ratio 65,000:1
Projection Image (diag.) 40" - 300"
Aspect Ratio 16:9
Throw Distance 3.9' - 60.4'
Zoom/Focus 1x to 2.0x, Manual driven
Lens Shift Manual (Up/Down/Left/Right)
Up/Down/Left/Right Ratio Up/Down: 3: -1 ~ -1:3 (-1V / Center / +1V)
Left/Right: 10:0 ~ 0:10 (-0.5H / Center / +0.5H)
Digital Keystone Correction No
Projection System Dichroic mirror & 4P prism system w/ PBS
Projection Lens F2.0 ~ 3.0 / f0.9” ~ 1.8”
Lens Throw Ratio 1.35 ~ 2.7:1
Projection Lamp 165W UHP
Scanning Frequency H: 15~80kHz, V: 50~100Hz (auto sense/select)
Dot Clock 100MHz (Analog RGB / Component)
HDTV signal 480i/480p/575i/575p/720p/1080i/
1080p (HDMI/Component)
Color System PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
Computer Compatibility WXGA/SXGA/XGA/SVGA/VGA/MAC
Voltage 100V-240V AC; 50/60Hz (auto voltage)
BTU Rating 877
dB Rating 19 dBA (Eco mode)
Power Consumption 257W
Dimensions (WxHxD) 15.7” x 5.7” x 13.6” (not including protrusion)
Net Weight 16 lbs
User Maintenance Clean air filters, replace lamp assembly
Input Terminals
  Component Video 1 Y, Pb/Cb, Pr/Cr (RCA x 3)
  Component Video 2 Y, Pb/Cb, Pr/Cr (RCA x 3)
  S-Video Video (RCA x 1)
  Computer Analog RGB (D-Sub 15)
  HDMI HDMI (19-pin Ver.1.3b) x 2
  Communication RS-232C/ Service Port (Mini DIN 8-pin)
Included Accessories Owner's Manual(Quick manual & CD ROM); Illuminated Infrared Remote Control; AC Power Cord (6.6’); 2 AA batteries; Air blower
Optional Accessories 610 336 5404 – Replacement Lamp
645 092 8710 – Replacement Remote
POA-MCSRL – Serial Control Cable
FCC Rating Class B, UL Listed
Warranty 3-years parts & labor; 90-days lamp (original);30-days
lamp (replacement)

Quick Repair Program under warranty
