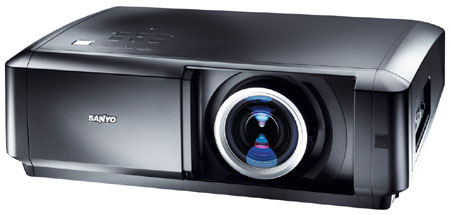

Sanyo PLV-Z60 3LCD Home Theater Video Projector
Sanyo PLV-Z60 MSRP: $1,295
Overview
LCD Home Theater Projector
The Sanyo PLV-Z60 projector is representing another step forward in price
performance for 1280x720 resolution widescreen LCD technology. The
brighter, 1200-lumens PLX-Z60 is equipped with three 16:9 native, 1,280 x 720
pixel (2.76 million effective pixels) HD LCD panels that produce a phenomenal
picture quality and beautifully saturated colors even in well-lit rooms. PLV-Z60
delivers amazing 10000:1 contrast ratio which makes it a unique machine.
EXTENSIVE INPUT CONNECTIONS 2 X HDMI
A full complement of input terminals, which include a digital HDMI interface and
two sets of component video inputs, together with composite video and S-video
connections, provide extensive flexibility. The user can even connect their PC to
the projector via the D-sub 15 input.
12-BIT DIGITAL IMAGE PROCESSING
Using the 12-Bit Digital Processing IC, the PLV-Z60 projector achieves a high image
quality with video decoder, scaler and gamma curve generator. The result is the
reproduction of deeper, richer images. And thanks to greatly improve calculating
precision, the Sanyo PLV-Z60 renders even tiny nuances in expressive details.
INNOVATIVE 3D COLOR MANAGEMENT
You can adjust and save the hue, gamma curve, and level of any color. Finetuning
the image settings enables compensation for specific conditions in every
viewing environment.
SAVVY INSTALLATION WITH 2X ZOOM & LENS SHIFT
With its 2X optical zoom, the Sanyo PLV-Z60 projector can project images onto a 100-inch
screen from a mere distance of 9.8ft to 20ft. A pair of side panel controls adjust
the lens vertically and horizontally to project a geometrically accurate and
undistorted picture.
NEAR-SILENT FAN DESIGN – ONLY 22dBA
The redesigned internal cooling structure minimizes fan noise, achieving super
quiet performance.
MOTOR-OPERATED SLIDING SHUTTER
The shutter can be opened or closed automatically by remote control, protecting
the lens from dust.
ADVANCED IMAGE MODE
The Advanced Mode provides a range of adjustments to take care of your every
video whim. Adjustments include RGB gain, RGB gamma, RGB offset
adjustment, lens iris adjustment, outlines compensation, black level expansion,
and contrast enhancement.
Features
- Widescreen 1280 x 720 Resolution
- Bright 1200 ANSI Lumens
- Amazing 10000:1 Contrast Ratio
- Digital HDMI Interface and Two Sets of Component Video Inputs
- Connect PC to the Projector via D-Sub 15 Input
- 12-Bit Digital Processing for Deeper, Richer Images
- Innovative 3D Color Management
- With 2X Optical Zoom, Project Images Onto a 100-inch Screen
- Super Quiet Fan
- Motor-Operated Sliding Shutter
- Advanced Image Mode
- Lightweight at Only 11 lbs
Specifications
| Resolution |
1280 x 720 |
| Brightness (typical) |
1200 ANSI Lumens (vivid mode) |
| Uniformity |
85% (corner to center) |
| LCD Panel System |
0.7" TFT Poly-Silicon x 3 (16:9) |
| Number of Pixels |
2,764,800(921,600 x 3) |
| Contrast Ratio |
10,000:1 (vivid mode) |
| Projection Image (diag.) |
40" - 300" |
| Aspect Ratio |
16:9 |
| Throw Distance |
3.9' - 30.2' |
| Zoom/Focus |
1x to 2.0x, Manual driven |
| Lens Shift |
Manual (Up/Down/Left/Right) |
| Up/Down/Left/Right Ratio |
Up/Down: 3: -1 ~ -1:3 (-1V/Center/+1V)
Left/Right: 10:0 ~ 0:10 (-0.5H/Center/+0.5H) |
| Digital Keystone Correction |
Vertical: +/- 20° |
| Projection System |
Dichroic mirror & 4P prism system w/ PBS |
| Projection Lens |
F2.0 ~ 3.0 / f0.8” ~ 1.7” |
| Lens Throw Ratio |
1.35 ~ 2.7:1 |
| Projection Lamp |
145W UHP |
| Scanning Frequency |
H: 15~80kHz, V: 50~100Hz
(auto sense/select) |
| Dot Clock |
100 MHz |
| HDTV signal |
480i/480p/575i/575p/720p/1080i/1080p (HDMI input only) |
| Color System |
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N |
| Computer Compatibility |
WXGA/SXGA/XGA/SVGA/VGA/MAC |
| Voltage |
100V-240V AC; 50/60Hz (auto voltage) |
| BTU Rating |
717 |
| dB Rating |
22 dBA (Eco mode) |
| Power Consumption |
210W/185W (Nomal/Eco) |
| Dimensions (WxHxD) |
15.0” x 5.0” x 12.0” (not including protrusion) |
| Net Weight |
11.0 lbs |
| User Maintenance |
Clean air filters, replace lamp assembly |
Input Terminals
Component Video 1 |
Y, Pb/Cb, Pr/Cr (RCA x 3) |
| Component Video 2 |
Y, Pb/Cb, Pr/Cr (RCA x 3) |
| S-Video |
S-Video (Mini DIN 4-pin x 1) |
| Composite Video |
Video (RCA x 1) |
| Computer |
Analog RGB (D-Sub 15) |
| HDMI |
HDMI (19-pin) x 2 |
| Communication |
RS-232C/ Service Port (Mini DIN 8-pin) |
| Included Accessories |
Owner's Manual(Quick manual & CD ROM); Illuminated Infrared Remote Control; AC Power Cord (6.6’); 2 AA batteries; Air blower |
| Optional Accessories |
610 322 5998 – Replacement Lamp
945 087 1451 – Replacement Remote
POA-MCSRL – Serial Control Cable |
| FCC Rating |
Class B, UL Listed |
| Warranty |
3-years parts & labor; 90-days lamp (original);30-days lamp
(replacement) Quick Repair Program under warranty |
|
