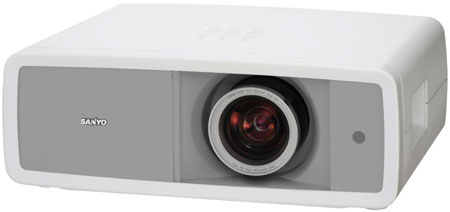

Sanyo PLV-Z700 3LCD Home Theater Video Projector
Sanyo PLV-Z700 MSRP: $1,995
Overview
FULL HIGH-DEFINITION RESOLUTION – 1080p
Not only is it full HD (1920 x 1080), the PLV-Z700 achieves deep, rich, and
very importantly, accurate color. This is automatically accomplished thanks
to SANYO’s exclusive TopazReal HD Technology, a 3D color management
system that addresses color phase and color level to obtain perfect color
reproduction. The PLV-700’s color management system can generate a
total of approximately 216 billion possible color combinations. This new
color management system was designed to optimize the potential of deep
color from either of the projector’s two HDMI inputs.
LENS MAXIMIZATION OF IMAGE DETAIL
Rated at 1200 lumens, the PLV-Z700 projector is capable of an incredible 10,000:1
contrast ratio for superlative black levels, even in ambient light. Plus it has
a newly-developed, high-efficiency lens that maximizes image details for
exceptional optical performance.
DVANCED LENS SHIFT FOR VARIOUS ROOM ENVIRONMENTS
Sanyo's PLV-Z7000 is outfitted with the industry’s most advanced lens shifting
function. When coupled with the projector’s short throw capability and 2x
zoom, the Sanyo PLV-700 projector can create a large screen image in any size room and
from virtually any location. The lens shifting function allows wide-range
shifting up or down to three screen sizes and left to right to two screen
sizes. The throw design of the PLV-Z700 projector, which is capable of projecting a
100-inch diagonal image from 10 to 20 feet away, makes it extremely
suitable for small to mid-size home theaters.
VIRTUALLY SILENT FAN DESIGN
A 1200 lumen projector generates a tremendous amount of heat and
requires a high quality fan to ensure proper operation. At this level of
brightness, the fan is ‘on’ most of the time and the noise can be extremely loud and disruptive, especially in smaller home theaters where the
projector and the audience are in the same vicinity. To promote greater
enjoyment of the film and to reduce noise levels during quiet passages of a film, the Sanyo PLV-Z700 projector is equipped with the industry’s quietest fan, a large
aperture, low noise Sirocco cooling fan that never rises above 19dB in the
economy mode.
Features
- Full High-Definition at 1920 x 1080 Resolution
- Exclusive TopazReal HD Technology and 3D Color Management System
- 1200 ANSI Lumens and 10,000:1 Contrast Ratio for Superlative Black Levels, Even in Ambient Light
- Equipped with the Industry's Most Advanced Lens Shifting Function
- Create a Large Screen Image in any Size Room
- Project a 100-inch Diagonal Image from 10 to 20 Feet Away
- Suitable for Small to Mid-size Home Theaters
- Equipped with the Industry's Quietest Fan
- Weighs in at 16.5 lbs
Specifications
Resolution |
1920 x 1080 |
Brightness (typical) |
1200 ANSI Lumens |
Uniformity |
85% (corner to center) |
LCD Panel System |
0.7" TFT Poly-Silicon x 3 (16:9) |
Number of Pixels |
6,220,800(2,073,600 x 3) |
Contrast Ratio |
10,000:1 (vivid mode) |
Projection Image (diag.) |
40" - 300" |
Aspect Ratio |
16:9 |
Throw Distance |
3.9' - 60.4' |
Zoom/Focus |
1x to 2.0x, Manual driven |
Lens Shift |
Manual (Up/Down/Left/Right) |
Up/Down/Left/Right Ratio |
Up/Down: 3: -1 ~ -1:3 (-1V/Center/+1V)
Left/Right: 10:0 ~ 0:10 (-0.5H/Center/+0.5H) |
Digital Keystone Correction |
No |
Projection System |
Dichroic mirror & 4P prism system w/ PBS |
Projection Lens |
F2.0 ~ 3.0 / f0.9” ~ 1.8” |
Lens Throw Ratio |
1.35 ~ 2.7:1 |
Projection Lamp |
165W UHP |
Scanning Frequency |
H: 15~80kHz, V: 50~100Hz
(auto sense/select) |
Dot Clock |
100MHz (Analog RGB / Component) |
HDTV signal |
480i/480p/575i/575p/720p/1080i/1080p (HDMI/Component) |
Color System |
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N |
Computer Compatibility |
WXGA/SXGA/XGA/SVGA/VGA/MAC |
Voltage |
100V-240V AC; 50/60Hz (auto voltage) |
BTU Rating |
839 / 638 (Eco mode) |
dB Rating |
21dBA (Eco mode) |
Power Consumption |
246W / 187W (Eco mode) |
Dimensions (WxHxD) |
15.7” x 5.7” x 13.6” (not including protrusion) |
Net Weight |
16.5 lbs |
User Maintenance |
Clean air filters, replace lamp assembly |
Input Terminals
Component Video 1 |
Y, Pb/Cb, Pr/Cr (RCA x 3) |
Component Video 2 |
Y, Pb/Cb, Pr/Cr (RCA x 3) |
S-Video |
S-Video (Mini DIN 4-pin x 1) |
Composite Video |
Video (RCA x 1) |
Computer |
Analog RGB (D-Sub 15) |
HDMI 19-Pin DVI |
HDMI (19-pin Ver.1.3b) x 2 |
Communication |
RS-232C/ Service Port (Mini DIN 8-pin) |
Included Accessories |
Owner's Manual (Quick manual & CD ROM); Illuminated Infrared Remote Control; AC Power Cord (6.6’); 2 AA batteries; Air blower |
Optional Accessories |
610 336 5404 – Replacement Lamp
645 092 8710 – Replacement Remote
POA-MCSRL – Serial Control Cable |
FCC Rating |
Class B, UL Listed |
Warranty |
3-years parts & labor; 90-days lamp (original);30-days lamp
(replacement) Quick Repair Program under warranty |
|
