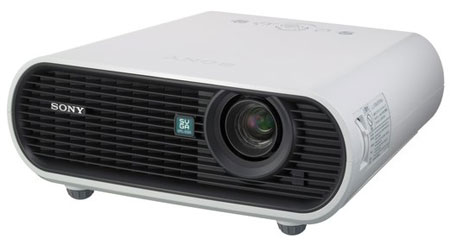

Sony VPL-ES5 3LCD Portable Video Projector
Sony VPL-ES5 MSRP: $910
Overview
An affordable entry level Sony VPL-ES5 projector featuring 2000 Lumen brightness, 3LCD technology and SVGA resolution. Ideal for education, government, corporate, house of worship and hospitality applications. An entry level projector in name and price only.
Features
- SVGA Resolution
- 2000 Lumens Brightness
- Ceiling Mountable
- 0.63-inch TFT LCD Panels
- 190W UHP Lamp
- Off & Go - Terminate the power without waiting for the projector to cool down
- Dynamic Detail Enhancer for Video Signals
- RGB/Component Input: HD D-sub 15 pin
- Composite Video: RCA Pin
- S-Video: 4 pin Mini Din
- Monitor Out / Audio Out
- Six Picture Modes
- Front Exhaust System
Specifications
Optical
| Projection System |
3LCD panels 1 Lens projection system |
| Image Device |
0.63" TFT LCD Panel |
| Screen Coverage |
40 to 300 inches (viewable area measured diagonally) |
| Light Output |
2000 lumens |
| Projection Lens |
Approx 1.2 times zoom lens (Manual) f=18.53 to 22.18mm, F1.65 to 1.93 |
| Brightness |
2000 Lumens |
| Lamp |
190W Ultra High Pressure Lamp |
| Contrast Ratio |
300:1 |
| Lamp Life |
3000H |
Input/Output
| Composite Video |
RCA Phono Type |
| S-Video |
Y/C mini DIN 4-pin |
| Analog RGB |
HD D-sub 15 pin (female) |
| RGB/Component |
HD D-sub 15 pin (female) |
| Variable Audio Out |
Stereo mini jack |
General
| Weight |
Approx. 6lb. 6 oz. (2.9kg) |
| Power Requirements |
AC 100 to 240V
50/60 Hz |
| Dimensions (W x H x D) |
12 3/8 x 4 3/8 x 10 5/8 inches
314 x 109 x 269 mm |
| Power Consumption |
Max. 225 W
Standby 3W |
| Operating Temperature |
32 to 95 °F (0 to 35 °C) |
| Storage Temperature |
-4 to 140 °F (-20 to 60 °C) |
| Operating Humidity |
35 to 85% (no condensation) |
| Storage Humidity |
32 to 95 °F (0 to 35 °C) |
| Fan Noise |
33 dB |
| Horizontal Keystone Correction Range |
Max. +/-30 degrees |
| Speaker |
Mono 1 W (max.) x1 |
| Heat Dissipation |
765 BTU |
Other
| Safety Regulations |
UL60950-1
cUL (CSA No. 60950-1)
FCC Class B
IC Cllass B
CE (LVD: EN60950-1 (FIMKO) EMC)
C-TIck
NOM
SASO
PSB |
Electrical
| Color System |
NTSC3.58
PAL
NTSC4.43
PAL-M
PAL-N
PAL60 system
SECAM |
| Acceptable Computer Signals |
fH: 19 to 92 kHz fV: 48-92 Hz Up to SXGA+ (fV60Hz) |
| Acceptable Video Signals |
Composite Video
Y/C Video
15kRGB 50/60Hz
Progressive Component 50/60Hz
DTV (480/60i, 480/60p, 575/50i, 575/50p, 720/50p, 720/60p, 1080/50i, 1080/60i) |
| Video Resolution |
500 TV Lines |
| Native Resolution |
SVGA: 800 x 600 Pixels |
|
