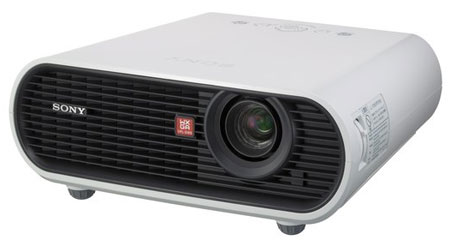

Sony VPL-EW5 3LCD Portable Video Projector
Sony VPL-EW5 MSRP: $1410
Overview
The Sony VPL-EW5 is an affordable entry level projector featuring 2000 Lumen brightness, WXGA resolution, and 3LCD technology featuring BrightEra panels. Ideal for education, government, corporate, house of worship and hospitality applications - an entry level projector - in name and price only.
Features
- WXGA Resolution
- 2000 Lumens Brightness
- Ceiling Mountable
- 0.59-inch TFT LCD Panels with BrightEra Technology
- Dynamic Detail Enhancer for Video Signals
- Off & Go - Terminate the power without waiting for the projector to cool down
- RGB/Component Input: HD D sub 15 pin
- HDMI Digital Video interface
- Composite Video: RCA Pin
- S-Video: 4 pin Mini DIN
- Monitor Out / Audio Out
- RS232C: D sub 9-pin
- Six picture modes
- Front Exhaust System
Specifications
Optical
| Projection System |
3LCD panels
1 Lens projection system |
| Image Device |
0.59" TFT LCD Panel |
| Screen Coverage |
40 to 300 inches (viewable area measured diagonally) |
| Light Output |
1600 lumens (lamp mode: standard)
2000 lumens (lamp mode: high) |
| Projection Lens |
Approx 1.2 times zoom lens (Manual)
f=18.53 to 22.18mm, F1.65 to 1.93 |
| Brightness |
2000 Lumens |
| Lamp |
190W Ultra High Pressure Lamp |
Input/Output
| Composite Video |
RCA Phono Type |
| S-Video |
Y/C mini DIN 4-pin |
| Analog RGB |
HD D-sub 15 pin (female) |
| RGB/Component |
HD D-sub 15 pin (female) |
| HDMI |
Digital RGB/Y CB (PB) CR (PR): HDMI (HDCP) |
| Variable Audio Out |
Stereo mini jack |
General
| Weight |
Approx. 6 lb 10 oz (3.0 kg) |
| Projection System |
3LCD panels, 1 Lens projection system |
| LCD Panel |
0.59" TFT LCD panel, 3,072,000 (1280 x 800 x 3) pixels |
| Dimensions (W x H x D) |
12 3/8 x 4 3/8 x 10 5/8 inches
314 x 109 x 269 mm |
| Projection Lens |
Approx. 1.2 times zoom lens (Manual) f=18.53 to 22.18 mm F=1.65 to 1.93 |
| Throwing Distance (80" screen, 100" screen) |
80" Screen: 2.5-2.9m 100" Screen: 3.1-3.7m |
| Power Consumption |
Max. 225 W
Standby 3W |
| Operating Temperature |
32 to 95 °F (0 to 35 °C) |
| Lamp |
190W ultra high pressure lamp |
| Recommended Lamp replacement time |
2000 H (high lamp mode) 3000 H (low lamp mode) |
| Storage Temperature |
-4 to 140 °F (-20 to 60 °C) |
| Operating Humidity |
35-85%- no condensation |
| Screen Coverage |
40" to 300" (viewable area measured diagonally) |
| Light Output (lumens) |
2000 (lamp mode high) 1600 (lamp mode low) |
| Storage Humidity |
32 to 95 °F (0 to 35 °C) |
| Contrast (all white and black) |
700:1 (max.) |
| Speaker |
Mono 1 W (max.) x1 |
| Color System |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 system |
| Resolution |
Video: 750 TV lines, RGB: 1280x800 pixels |
| Acceptable Computer signal |
fH: 19 to 92 kHz, fV: 48-92 Hz; Maximum Input signal resolution: Up to SXGA+ (fV60Hz) |
| Acceptable Video Signal |
Composite Video, Y/C Video, 15kRGB 50/60Hz, Progressive Component 50/60Hz, DTV (480/60i, 480/60p, 575/50i, 575/50p, 720/50p, 720/60p, 1080/50i, 1080/60i) |
| Speaker |
Monaural speaker system, 40x28.5mm |
| Speaker Output |
1W (max.) |
| Dimensions |
12 3/8 x 4 3/8 x 10 5/8 inches (without the projection parts) 314x109x269mm |
| Mass |
Approx. 6 lb.10 oz 3.0 kg |
| Power Requirements |
AC 100 to 240V
50/60 Hz |
| Power Consumption |
Max. 260W, Standby: 3W |
| Heat Dissipation |
884 BTU |
| V Keystone Correction Range |
Max +/-30 degrees |
| Fan Noise |
39dB (Lamp mode High) 33dB (lamp mode low) |
| Operating Temperature |
0-35 degrees Celsius (32-95 F) |
| Storage Temperature |
-20 to 60 C degrees (-4 to 140 F degrees) |
| Storage Humidity |
10-90% |
| Video In |
Composite Video: Phono Type S Video: Y/C mini DIN 4-pin Audio: Stereo mini jack |
| Input A |
RGB: Analog RGB/Component: HD D-sub 15 pin (female) Audio: Stereo mini jack |
| Input B |
HDMI: Digital RGB/Y CB (PB) CR (PR): HDMI (HDCP) |
| Output |
RGB: Analog RGB:HD D-sub 15 pin (female) Audio: Stereo minijack (variable out) |
| Remote |
RS-232C: D-sub 9 pin (female) |
| Safety Regulations |
UL60950-1, cUL (CSA No. 60950-1), FCC Class B, IC Cllass B, CE (LVD: EN60950-1 (FIMKO) EMC), C-TIck, NOM, SASO, PSB |
Other
| Safety Regulations |
UL60950-1
cUL (CSA No. 60950-1)
FCC Class B
IC Cllass B
CE (LVD: EN60950-1 (FIMKO) EMC)
C-TIck
NOM
SASO
PSB |
Electrical
| Color System |
NTSC3.58
PAL
NTSC4.43
PAL-M
PAL-N
PAL60 system
SECAM |
| Acceptable Computer Signals |
fH: 19 to 92 kHz
fV: 48-92 Hz Up to SXGA+ (fV60Hz) |
| Acceptable Video Signals |
Composite Video
Y/C Video
15kRGB 50/60Hz
Progressive Component 50/60Hz
DTV (480/60i, 480/60p, 575/50i, 575/50p, 720/50p, 720/60p, 1080/50i, 1080/60i) |
| Video Resolution |
750 TV Lines |
| Native Resolution |
WXGA: 1280 x 800 Pixels |
|
