Toshiba TDP-EX20U DLP Conference Video Projector

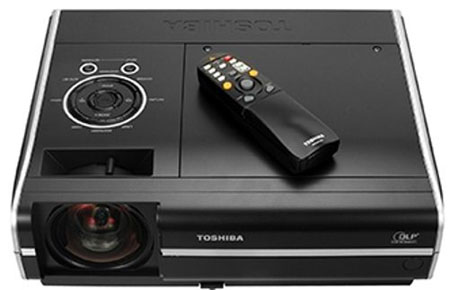

Toshiba TDP-EX20U Video Projector

Toshiba TDP-EX20U MSRP: $1,689

Overview

The Toshiba TDP-EX20U projector with "extreme short projection" offers incredible power and flexibility from a lightweight projector. It projects text and images with an impressive 2,300 ANSI lumens, and a rich and vibrant DLP® display. A full-featured performer, the projector offers password-protection, to prevent unauthorized usage and instant power shut down capability which allows the user to turn off and disconnect the projector from the power outlet instantly without any cool-down time required.

The projector also offers an XGA 1024 x 768 native resolution, razor sharp contrast ratio of 2000:1 and "extreme short projection" capabilities that produce a 60-inch image from just three feet away. The TDP-EX20U produces superior image quality and versatile performance for presentations, video gaming, weekend sporting events and DVD movies in virtually any setting, including well-lit rooms, family rooms or larger settings from the boardroom to the lecture hall.

Unlike many projectors on the market, this Toshiba DLP projector is filter free. Filter free projectors keep damaging dust particles from collecting on imaging elements and therefore may reduce the total cost of ownership by requiring one less part to replace, less maintenance and by extending the projector's lamp life.

Features

  • Native 1024 x 768 XGA Resolution
  • 2300 ANSI Lumens Brightness
  • 2000:1 Contrast Ratio
  • 4:3 native aspect ratio
  • Weigh 9.2 lbs
  • "Extreme short projection" capabilities
  • Instant power shut down
  • Filter-free and low maintenance
  • 802.11b/g wireless
  • Has USB port for "PC-free" presentations

Specifications

Projector Type Conference Room
Display Technology: Shape 0.55" DMD DLP®
Display Technology: No. of Pixels 786,432 (1024 x 768)
Projector Lens: Standard Lens Fixed zoom / Manual Focus
Projector Lens: F/f (mm) F = 2.6, f = 8.37
Aspect Ratio 4:3 (16:9 switchable)
Light Source 275W (220W in low mode)
Brightness 2300 ANSI lumens
Native Resolution XGA (1024 x 768)
Wireless Technology IEEE 802.11b/g
Color Reproduction Full 16.7 Million Colors
Contrast Ratio 2000:1
Projection Screen Size 40" - 100" diagonal
Projection Distance 1.9 ft - 4.9 ft
Throw Ratio 0.74
Projection Placement Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection
Optical Offset 130%
Compatible Scanning Frequency: Horizontal (kHz) 15 - 120kHz
Compatible Scanning Frequency: Vertical (Hz) 50 - 150Hz
Input Terminal: RGB 1 2 x D-sub 15 (dual use for Computer 1 / 2 input & Component Video)
Input Terminal: Video 1 x RCA for composite video, 1x S-Video
Input Terminal: RGB Audio 1x stereo mini-jack
Input Terminal: Video Audio 2x RCA jacks (L/R)
Input Signal Format: Video NTSC, PAL, SECAM
Input Signal Format: Color Difference HDTV/DTV (480p/480i/576i/576p/720p/1080i), DVD
Input Signal Format: RGB VGA, SXGA (compressed), UXGA (compressed), XGA (native), SVGA
Output Terminal: Audio 1x stereo mini-jack (variable output)
Output Terminal: RGB 1x D-sub 15-pin
Other Terminal USB: 1x USB port, RS232: 1x D-sub 9-pin, RJ45: 1x RJ-45 networking terminal (Windows® Vista network capable)
Picture Color Enhancer DLP® Briliant Color™ Technolgy, Toshiba Natural Color Enhancer4
Digital Keystone Correction Auto Vertical +/- 18°
Auto set Yes
Internal Speaker 1.0W Monaural
Noise Level 33dB (29dB in low mode)
Projector External Dimensions (WxHxD) 13.3" x 5.2" x 10.5"
Projector Weight 9.2 lbs.
Power Consumption 385W
Power Source AC:100-240V, 50/60Hz
Service Replacement Lamp TLP-LW15
Box Contents Power cord, RGB cable, CD-ROM, User's Manual, Soft Carrying Bag, Mouse remote control with laser pointer
RoHS Compliance Yes
Projector Warranty Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty
