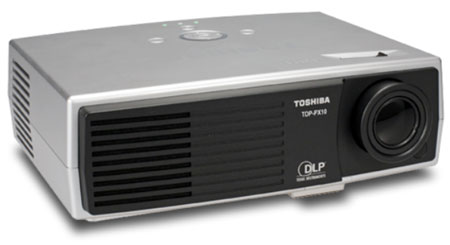

Toshiba TDP-PX10U DLP Portable Video Projector
Toshiba TDP-PX10U MSRP: $1,249
Overview
The fully-loaded Toshiba TDP-PX10U ultraportable DLP® projector weighs in at a scant 2.9-pounds and offers incredible power and top-performance features at an affordable price.
Light and Compact
Fly through airports. Waltz through lobbies. Strut down cramped aisles and corridors. Go anywhere–because at just 2.9 pounds the TDP–PX10U projector is so light and compact you'll hardly know you're carrying it. It fits easily into a briefcase or luggage too.
Easy to Use - USB Port
Want to travel fast and light as possible? Leave your notebook back at the office. You heard us. The USB port on this projector lets you load your work onto a flash drive, plug it in and get on with the show–for a totally PC–free presentation.
Hush-Quiet Operation
When the lights go off and the show comes on you'll want them to notice you, not the projector. Put the TDP–PX10U projector in the Low Mode and it scarcely makes a sound.
Filter-Free Design
Unlike many projectors on the market, this Toshiba TDP-PX10U DLP projector is filter free. Filter free projectors keep damaging dust particles from collecting on imaging elements and therefore may reduce the total cost of ownership by requiring one less part to replace, less maintenance and by extending the projector's lamp life.
Features
- Native 1024 x 768 XGA Resolution
- 2000 ANSI Lumens Brightness
- 2000:1 Contrast Ratio
- 4:3 native aspect ratio
- Weigh only 2.9lbs
- HDTV Compatible
- Whisper-Quiet
- Filter-free and low maintenance
- Has USB port for "PC-free" presentations
Specifications
| Projector Type |
Mobile |
| Display Technology: Shape |
0.55" DMD DLP® |
| Display Technology: No. of Pixels |
786,432 (1024 x 768) |
| Projector Lens: Standard Lens |
1.17x manual zoom/manual focus |
| Projector Lens: F/f (mm) |
F = 2.5 - 2.74, f = 22 - 25.5mm |
| Aspect Ratio |
4:3 |
| Light Source |
180W (160W in low mode) |
| Brightness |
2000 ANSI lumens |
| Native Resolution |
XGA (1024 x 768) |
| Color Reproduction |
Full 16.7 Million Colors |
| Contrast Ratio |
2000:1 |
| Projection Screen Size |
35" - 300" diagonal |
| Projection Distance |
5.3 ft - 39.4 ft |
| Throw Ratio |
1.94 - 2.27:1 |
| Projection Placement |
Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection |
| Compatible Scanning Frequency: Horizontal (kHz) |
15 - 120kHz |
| Compatible Scanning Frequency: Vertical (Hz) |
43 - 120Hz |
| Input Terminal: RGB 1 |
1 x D-sub 15-pin (shared as Component Video) |
| Input Terminal: Video |
1 x RCA for composite video, 1x S-Video |
| Input Terminal: RGB Audio |
1x stereo mini-jack |
| Input Signal Format: Video |
NTSC, PAL, SECAM |
| Input Signal Format: Color Difference |
HDTV/DTV (480p/480i/576i/576p/720p/1080i), DVD |
| Input Signal Format: RGB |
VGA, SXGA (compressed), XGA (native), SVGA, UXGA (compressed) |
| Other Terminal |
USB: 1 x USB type A for USB flash drive, USB: 1 x USB type B for Service |
| Picture Color Enhancer |
DLP® Briliant Color™ Technolgy |
| Digital Keystone Correction |
Manual Vertical +/- 16° |
| Auto set |
Yes |
| Internal Speaker |
2.0-Watt Monarual |
| Projector External Dimensions (WxHxD) |
8.3" x 2.6" x 6.5" |
| Projector Weight |
2.9 lbs. |
| Power Consumption |
280W |
| Power Source |
AC:100-240V, 50/60Hz |
| Service Replacement Lamp |
TLP-LP20 |
| Box Contents |
Power cord, RGB cable, CD-ROM, User's Manual, Mouse remote control with laser pointer (size AAA batteries included), Soft Carrying Bag |
| RoHS Compliance |
Yes |
| Projector Warranty |
Lamp: 90 day Standard Limited Warranty or 500 hours, whichever comes first, Projector: 2-Years Parts and Labor Standard Limited Warranty |
|
