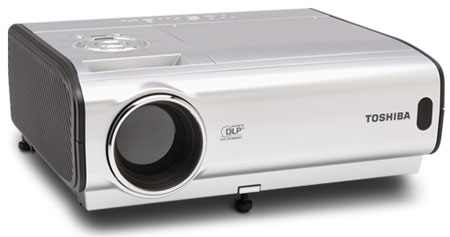

Toshiba TDP-T420U DLP Conference Video Projector
Toshiba TDP-T420U MSRP: $2,679
Overview
When you need show-stopping brightness to captivate the biggest of audiences, or a host of advanced features to expand your presentation, our TDP-T420U projector for the conference room is an ideal choice.
Used in large venues like trade show halls, or in semi-permanent installations such as museums or other public settings, this reliable DLP® projector really shines with an incredible 4,000 ANSI lumen of brightness, sharp XGA resolution and a 2000:1 contrast ratio. It's also feature-rich, offering extras like automatic keystone correction, a wealth of connectivity options, plus a unique "blackboard" function, which compensates for five different wall colors.
And thanks to a filter-free design from DLP® technology, it's also a low-maintenance projector offering a superior total cost of ownership.
Features
- Native 1024 x 768 XGA Resolution
- 4000 ANSI Lumens Brightness
- 2000:1 Contrast Ratio
- 4:3 native aspect ratio
- Weigh 9.5 lbs
- Automatic keystone correction
- HDTV/DTV compatibility
- Filter-free and low maintenance
- "Blackboard" function - presentations can be made on non-screen surfaces, such as a painted wall or a blackboard.
Specifications
Projector Type |
Conference Room |
Display Technology: Shape |
0.7" DMD DLP® |
Display Technology: No. of Pixels |
786,432 (1024 x 768) |
Projector Lens: Standard Lens |
1.2x manual zoom/manual focus |
Projector Lens: F/f (mm) |
F = 2.3 - 2.47, f = 22.97 - 27.56mm |
Aspect Ratio |
4:3 (16:9 switchable) |
Light Source |
275W (220W in low mode) |
Brightness |
4000 ANSI lumens |
Native Resolution |
XGA (1024 x 768) |
Color Reproduction |
Full 16.7 Million Colors |
Contrast Ratio |
2000:1 |
Projection Screen Size |
40" - 300" diagonal |
Projection Distance |
4.3' - 32.8' (Wide) / 5.1' - 39.4' (Tele) |
Throw Ratio |
1.62 - 1.95:1 |
Projection Placement |
Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection |
Optical Offset |
100% |
Compatible Scanning Frequency: Horizontal (kHz) |
15 - 120kHz |
Compatible Scanning Frequency: Vertical (Hz) |
50 - 150Hz |
Input Terminal: RGB 1 |
1 x D-sub 15, 1x DVI-I |
Input Terminal: Video |
1 x RCA for composite video, 1x S-Video |
Input Terminal: RGB Audio |
2x stereo mini-jack |
Input Terminal: Video Audio |
1x RCA (L/R) |
Input Signal Format: Video |
NTSC, PAL, SECAM |
Input Signal Format: Color Difference |
HDTV/DTV (480p/480i/576i/576p/720p/1080i/1080p) |
Input Signal Format: RGB |
VGA, XGA (true), SVGA, SXGA (compressed), UXGA (compressed) |
Output Terminal: Audio |
1x stereo mini-jack (variable output) |
Output Terminal: RGB |
1x D-sub 15-pin |
Other Terminal |
RS232: 1x D-sub 9-pin |
Picture Color Enhancer |
Toshiba Natural Color Enhancer4 |
Digital Keystone Correction |
Auto Vertical +/- 40° |
Auto set |
Yes |
Internal Speaker |
1.0W Monaural |
Noise Level |
33dB (29dB in low mode) |
Projector External Dimensions (WxHxD) |
13.3" x 5.0" x 10.9" |
Projector Weight |
9.5 lbs. |
Power Consumption |
385W |
Power Source |
AC:100-240V, 50/60Hz |
Service Replacement Lamp |
TLP-LW23 |
Box Contents |
Power cord, Mouse IR Receiver, Mouse remote control with batteries, RGB cable, CD-ROM, User's Manual, Soft Carrying Bag |
RoHS Compliance |
Yes |
Projector Warranty |
Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty |
|
