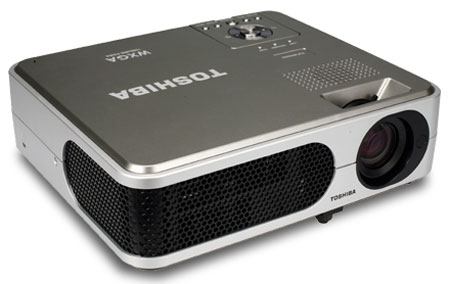

Toshiba TLP-WX2200U 3LCD Portable Video Projector
Toshiba TLP-WX2200U MSRP: $1,189
Overview
Easy Set-Up and Operation
Right out of the box the TLP–WX2200U portable projector is ready when you are—with features like one–touch auto set–up and automatic angle correction. Plus, it comes with a fully loaded remote so you can work the room, not the projector.
Widescreen Format
The TLP-WX2200U’s 16:10 format lets you display more information than with the traditional 4:3 format. And you’ll be glad you have it when it comes time to show complex spreadsheets or widescreen multimedia.
Advanced Anti–Theft Features
The TLP–WX2200U portable projector poses a triple threat to would–be thieves. It comes with password protection, a key–lock function, and a removable palm–sized control panel which, when detached, makes the projector inoperable until a password is entered on the remote control or the panel is replaced.
Features
- Native 1280 x 768 WXGA Resolution
- 2200 ANSI Lumens Brightness
- 600:1 Contrast Ratio
- 16:9 native aspect ratio
- Light and compact, weighing 6.2 lbs
- Widescreen format
- Advanced triple threat anti–theft features
- User logo personalization
- Easy set-up and operation
Specifications
| Projector Type |
Mobile |
| Display Technology: Shape |
0.56" 3LCD |
| Display Technology: No. of Pixels |
1,024,000 (1280 x 800) |
| Projector Lens: Standard Lens |
1.2x manual zoom/manual focus |
| Projector Lens: F/f (mm) |
F = 1.6 - 1.88, f = 18.84 - 22.61mm |
| Aspect Ratio |
16:10 (4:3 switchable) |
| Light Source |
205W (160W in low mode) |
| Brightness |
2200 ANSI lumens |
| Native Resolution |
WXGA (1280 x 800) |
| Color Reproduction |
Full 16.7 Million Colors |
| Contrast Ratio |
600:1 |
| Projection Screen Size |
40" - 300" diagonal |
| Projection Distance |
4.2 ft - 32.4 ft |
| Throw Ratio |
1.57 - 1.89:1 |
| Projection Placement |
Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection |
| Compatible Scanning Frequency: Horizontal (kHz) |
15.63 - 106.25kHz |
| Compatible Scanning Frequency: Vertical (Hz) |
50 - 85Hz |
| Input Terminal: RGB 1 |
1 x D-sub 15-pin (shared as Component Video) |
| Input Terminal: Video |
1 x RCA for composite video, 1x S-Video |
| Input Terminal: RGB Audio |
1x stereo mini-jack |
| Input Terminal: Video Audio |
1x RCA (L/R) |
| Input Signal Format: Video |
NTSC, PAL, SECAM |
| Input Signal Format: Color Difference |
HDTV/DTV (480p/480i/576i/576p/720p/1080i) |
| Input Signal Format: RGB |
VGA, SXGA (compressed), XGA (native), SVGA, UXGA (compressed) |
| Output Terminal: Audio |
1x stereo mini-jack (variable output) |
| Output Terminal: RGB |
1x D-sub 15 terminal share with In/Out |
| Other Terminal |
RS-232: 1x mini DIN 8-pin |
| Picture Color Enhancer |
Toshiba Natural Color Enhancer3 |
| Digital Keystone Correction |
Automatic vertical +/- 30° |
| Auto Set |
Yes |
| Internal Speaker |
1.0W Monaural |
| Noise Level |
36dB (31dB in low mode) |
| Projector External Dimensions (WxHxD) |
11.3" x 3.6" x 9.7" |
| Projector Weight |
6.2 lbs. |
| Power Consumption |
305W |
| Power Source |
AC:100-240V, 50/60Hz |
| Service Replacement Lamp |
TLP-LW11 |
| Box Contents |
Power cord, RGB cable, CD-ROM, Mouse remote control receiver, Two size AAA batteries, Mouse remote control with laser pointer, User's Manual, Soft Carrying Bag |
| RoHS Compliance |
Yes |
| Projector Warranty |
Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty |
|
