Toshiba TLP-X100U 3LCD Portable Video Projector

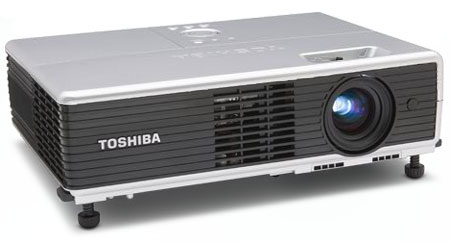

Toshiba TLP-X100U Video Projector

Toshiba TLP-X100U MSRP: $839

Overview

Highly Entertaining

Offering excellent brightness, contrast, XGA clarity, a multitude of inputs, plus HDTV/DTV- and closed caption-compatibility, this machine is ideal for gaming, weekend sports parties, movie nights and more. So get ready. With the amazing TLP-X100U portable projector you’re going to have lots of new friends.

Super Light

Weighing a scant four pounds, the TLP-X100U projector is one of the lightest projectors you can buy. And it can really make the rounds―including neighborhood get-togethers, club meetings, business appointments ― all without making you tired of carrying it.

Easy To Use

Make your point or get to the fun faster with trouble-free auto set-up. Automatic keystone angle correction takes care of uneven surfaces. A unique “blackboard” function adjusts for different wall colors. And a fully loaded remote lets you relax and focus on the show. We wouldn’t have it any other way.

Features

  • Native 1024 x 768 XGA Resolution
  • 2200 ANSI Lumens Brightness
  • 600:1 Contrast Ratio
  • 4:3 native aspect ratio
  • Exceptionally light, weighing 4 lbs
  • Closed caption-capable
  • HDTV/DTV-compatible
  • Auto set-up
  • Adjusts for different wall colors

Specifications

Projector Type Mobile
Display Technology: Shape 0.63" 3LCD
Display Technology: No. of Pixels 786,432 (1024 x 768)
Projector Lens: Standard Lens 1.2x manual zoom/manual focus
Projector Lens: F/f (mm) F = 1.7 - 1.87, f = 19.2 - 23.1mm
Aspect Ratio 4:3
Light Source 180W (136W in low mode)
Lamp Life Up to 2000 hours (up to 3000 hours in Eco mode)
Brightness 2200 ANSI lumens
Native Resolution XGA (1024 x 768)
Color Reproduction Full 16.7 Million Colors
Contrast Ratio 600:1
Projection Screen Size 30" - 300" diagonal
Projection Distance 2.9 ft - 35.9 ft
Throw Ratio 1.48 - 1.77:1
Projection Placement Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection
Compatible Scanning Frequency: Horizontal (kHz) 15.63 - 106.25kHz
Compatible Scanning Frequency: Vertical (Hz) 50 - 85Hz
Input Terminal: RGB 1 1 x D-sub 15-pin (dual use for analog RGB/component video)
Input Terminal: Video 1 x RCA for composite video, 1x S-Video
Input Terminal: RGB Audio 1x stereo mini-jack
Input Signal Format: Video NTSC, PAL, SECAM
Input Signal Format: Color Difference HDTV/DTV (480p/480i/576i/576p/720p/1080i)
Input Signal Format: RGB VGA, SXGA (compressed), SVGA, XGA (native), UXGA (compressed)
Output Terminal: Audio 1x stereo mini-jack (variable output)
Output Terminal: RGB 1x D-sub 15-pin (share by mechanical switch from RGB input 2)
Other Terminal RS232: 1x D-sub 9-pin
Picture Color Enhancer DLP® Briliant Color™ Technolgy
Digital Keystone Correction Auto Vertical +/- 45 degrees
Special Features Auto set, Blackboard function, Active monitor loop through, Closed caption, Panel lock, User logo, Digital zoom, Password protection, Instant shut down
Internal Speaker 1.0W Monaural
Noise Level 32dB (28dB in low mode)
Projector External Dimensions (WxHxD) 10.6" x 2.8" x 7.4"
Projector Weight 4.0 lbs.
Power Consumption 270W
Power Source AC:100-240V, 50/60Hz
Service Replacement Lamp TLP-LW21
Box Contents Remote control, Power cord, RGB cable, CD-ROM, User's Manual, Two size AAA batteries, Soft Carrying Bag
RoHS Compliance Yes
Projector Warranty Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty
