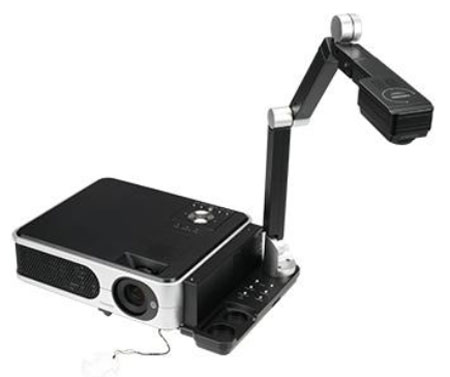

Toshiba TLP-XC2500AU 3LCD Conference Video Projector
Toshiba TLP-XC2500AU MSRP: $1,559
Overview
The TLP-XC2500AU projector is Toshiba's ultimate mobile solution for presenters who demand quality, versatility and performance. Packaged in a compact form factor, the high-performance TLP-XC2500AU features LCD technology, 2,500 ANSI lumens, native XGA 1024 x 768 resolution, and 400:1 contrast ratio to deliver bright, captivating images that can go anywhere, anytime.
For energy conservation, the projector can be switched to Eco-Mode, allowing users to extend the lamp life up to 3,000 hours. The Toshiba TLP-XC2500AU Projector offers XGA (1024 x 768) resolution with 2500 ANSI lumens of brightness.
Weighing 8.8lbs., it has 3 video inputs [1x D-sub 15-pin port, 1-S-Video port, and 1-RCA jack]; 3 audio inputs [(1-stereo mini-jack, 1-RCA jacks (R/L)], Automatic Keystone correction (Vertical +/- 30 degrees), HDTV/DTV compatibility, and has a noise level of only 36dB (31dB in low mode). Mouse remote control with laser pointer, Mouse remote control receiver, two AAA batteries, Power cord, RGB cable, CD-ROM, User's Manual, and Soft Carrying Bag are included.
Warranty: 3 years parts and labor, One year or first 500 hours of lamp use for the lamp, whichever comes first.
Features
- Native 1024 x 768 XGA Resolution
- 2500 ANSI Lumens Brightness
- 400:1 Contrast Ratio
- 4:3 native aspect ratio
- Weighs 8.8 lbs
- HDTV/DTV and high-definition content compatible
- Integrated, advanced CMOS document camera with 3 megapixel resolution
Specifications
Projector Type |
Conference Room |
Display Technology: Shape |
0.63" LCD |
Display Technology: No. of Pixels |
786,432 (1024 x 768) |
Projector Lens: Standard Lens |
1.2x manual zoom/manual focus |
Projector Lens: F/f (mm) |
F = 1.6 - 1.89, f = 18.6 - 22.3mm |
Light Source |
200W (160W in low mode) |
Brightness |
2500 ANSI lumens |
Native Resolution |
XGA (1024 x 768) |
Color Reproduction |
Full 16.7 Million Colors |
Contrast Ratio |
400:1 |
Projection Screen Size |
40" - 300" diagonal |
Projection Distance |
3.8 ft - 28.9 ft |
Compatible Scanning Frequency: Horizontal (kHz) |
15.63 - 106.25kHz |
Compatible Scanning Frequency: Vertical (Hz) |
50 - 85Hz |
Input Terminal: RGB 1 |
1 x D-sub 15 |
Input Terminal: Video |
1 x RCA for composite video, 1x S-Video |
Input Terminal: RGB Audio |
1x stereo mini-jack |
Input Terminal: Video Audio |
1x RCA (L/R) |
Input Signal Format: Video |
NTSC, PAL, SECAM |
Input Signal Format: Color Difference |
HDTV/DTV (480p/480i/576i/576p/720p/1080i) |
Input Signal Format: RGB |
VGA, SXGA (compressed), SVGA, XGA (native), UXGA (compressed) |
Output Terminal: Audio |
1x stereo mini-jack (variable output) |
Output Terminal: RGB |
1x D-sub 15 terminal share with In/Out |
Other Terminal |
RS-232: 1x mini DIN 8-pin |
Document Camera: Lens |
F= 3.0, f=9.6 mm |
Document Camera: Focus |
Manual |
Document Camera: Zoom |
None (adjust with the distance from the object) |
Document Camera: Image Pick-Up Device |
3-million pixel 1/2" color CMOS Sensor |
Document Camera: Pixels |
QXGA (horizontal 2048 x vertical 1536) |
Document Camera: White Balance |
Auto/Lock |
Document Camera: Illumination |
High brightness LED illumination |
Document Camera: Mechanism |
Arm Type |
Picture Color Enhancer |
Toshiba Natural Color Enhancer3 |
Digital Keystone Correction |
Automatic vertical +/- 30° |
Auto Set |
Yes |
Internal Speaker |
1.0W Monaural |
Noise Level |
36dB (31dB in low mode) |
Projector External Dimensions (WxHxD) |
14.6" x 9.8" x 3.6" |
Projector Weight |
8.8 lbs. |
Power Consumption |
300W |
Power Source |
AC:100-240V, 50/60Hz |
Service Replacement Lamp |
TLP-LW11 |
Box Contents |
Power cord, RGB cable, CD-ROM, User's Manual, Soft Carrying Bag, Two size AAA batteries, Mouse remote control with laser pointer, Mouse remote control receiver |
RoHS Compliance |
Yes |
Projector Warranty |
Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty |
|
