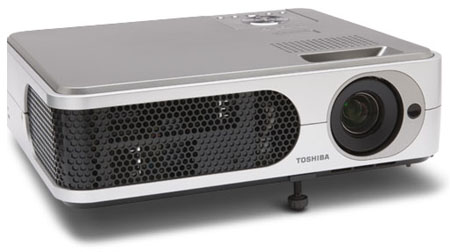

Toshiba TLP-XE30U 3LCD Portable Video Projector
Toshiba TLP-XE30U MSRP: $1,119
Overview
Compact Portability
Right out of the box the TLP–WX2200U portable projector is ready when you are—with features like one–touch auto set–When the miles start adding up, you’ll be glad you have the TLP-XE30U. With its compact design and light weight your arms will be a lot less tired carrying it through airports, and all the more ready to make a great point, dampen the applause, plus shake a few hands.
Security
Since not every venue is ideal, this mobile maestro comes with security features that help keep prying eyes and itchy fingers away from your projector. That includes password protection and a key-lock function that renders the machine unusable by unauthorized personnel. You’ll breathe a lot easier.
Easy Set-Up and Operation
Because it’s so easy to use, the TLP-XE30U portable projector helps you stay fast on your feet and right on your game from the moment you enter the room. You’ll enjoy features like auto set-up for a quick, trouble-free start, instant shut-down, along with automatic angle correction and “blackboarding,” which compensates for different wall colors.
Features
- Native 1024 x 768 XGA Resolution
- 3000 ANSI Lumens Brightness
- 600:1 Contrast Ratio
- 4:3 native aspect ratio
- Light and compact, weighing 6.2 lbs
- Password and key-lock functions
- HDTV/DTV-compatibility
- Hush-Quiet at 31dB (low mode)
- Easy set-up and operation
Specifications
Projector Type |
Mobile |
Display Technology: Shape |
0.63" 3LCD |
Projector Lens: Standard Lens |
1.2x manual zoom/manual focus |
Projector Lens: F/f (mm) |
F = 1.6 - 1.89, f = 18.6 - 22.3mm |
Aspect Ratio |
4:3 |
Light Source |
220W |
Lamp Life |
Up to 2000 hours (up to 3000 hours in Eco mode) |
Brightness |
3000 ANSI lumens |
Native Resolution |
XGA (1024 x 768) |
Color Reproduction |
Full 16.7 Million Colors |
Contrast Ratio |
600:1 |
Projection Screen Size |
33" - 300" diagonal |
Projection Distance |
3.8 ft - 28.9 ft |
Projection Placement |
Ceiling Mounted Front/Rear Projection, Floor Mounted Front/Rear Projection |
Compatible Scanning Frequency: Horizontal (kHz) |
16 - 106kHz |
Compatible Scanning Frequency: Vertical (Hz) |
50 - 85Hz |
Input Terminal: RGB 1 |
1 x D-sub 15-pin (dual use for analog RGB/component video) |
Input Terminal: Video |
1 x RCA for composite video, 1x S-Video |
Input Terminal: RGB Audio |
1x stereo mini-jack |
Input Signal Format: Video |
NTSC, PAL, SECAM |
Input Signal Format: Color Difference |
DVD, HDTV/DTV (480p/480i/576i/576p/720p/1080i/1080p) |
Input Signal Format: RGB |
VGA, SXGA (compressed), WXGA (compressed), XGA (true), SVGA, UXGA (compressed) |
Output Terminal: Audio |
1x stereo mini-jack |
Output Terminal: RGB |
1x D-sub 15-pin |
Other Terminal |
RS-232: 1x mini DIN 8-pin |
Picture Color Enhancer |
DLP® Briliant Color™ Technolgy |
Digital Keystone Correction |
Automatic vertical +/- 30° |
Auto Set |
Yes |
Internal Speaker |
1.0W Monaural |
Noise Level |
36dB (31dB in low mode) |
Projector External Dimensions (WxHxD) |
11.3" x 3.6" x 9.7" |
Projector Weight |
6.2 lbs. |
Power Consumption |
320W |
Power Source |
AC:100-240V, 50/60Hz |
Service Replacement Lamp |
TLP-LW11 |
Box Contents |
Power cord, Remote Control with Batteries, RGB cable, CD-ROM, User's Manual, Soft Carrying Bag |
RoHS Compliance |
Yes |
Projector Warranty |
Lamp: 1-Year Standard Limited Warranty or 500 hours, whichever comes first, Projector: 3-Years Parts and Labor Standard Limited Warranty |
|
