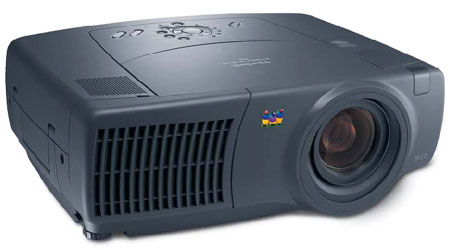

ViewSonic PJ1172 3LCD Multimedia Video Projector
ViewSonic PJ1172 MSRP: $4,999
Overview
ViewSonic's PJ1172 projector delivers premium performance in conference rooms, lecture halls, and boardrooms for maximum impact. The PJ1172 is a full-function multimedia projector with native XGA 1024x768 resolution, INCREDIBLY BRIGHT 4,500 LUMENS, POWER ZOOM, FOCUS AND LENS SHIFT FOR PERFECT IMAGES.
Enjoy ultimate installation flexibilty with multiple inputs, monitor out and network connectivity. Advanced features such as PROGRESSIVE SCAN AND VIDEO NOISE REDUCTION DELIVER SMOOTH VIDEO PERFORMANCE. The PJ1172 projector is the bright and powerful choice for dynamic presentations, smooth video entertainment in large venues.
Features
- Very bright 4500 ANSI Lumens
- Native 1024 x 768 XGA Resolution
- 800:1 Contrast Ratio
- 4:3 Native Aspect Ratio
- Weighs 17 lbs
- HDTV Ready
- Ultimate video source flexibility: Connect two computers simultaneously or add a video
source for dynamic meetings. Add another monitor output
to view the same projected image on another display.
- Network control: Remote management of projector controls and diagnostics.
- Digital horizontal and vertical keystone correction, power
focus, power zoom and lens shift function ensure the
perfect size image in any room.
- Supports HD signals including 720p and 1080i
- Whisper-mode extends lamp life: Extend the life of your lamp up to 4,000 hours and reduce noise output.
- Advanced video features: Progressive scan and 3:2
pull down for superior video
performance.
- Optional lenses makes
installation flexible: Easy-to-install bayonet lens
options allow you to project
in rooms of virtually any size.
Specifications
DISPLAY |
Size |
40-500" (Diagonal) |
Throw Distance |
47-913" |
Throw Ratio |
1.5~2.2:1 |
Lamp |
310W, 2,000 hours** |
Brightness |
4,500 ANSI lumens |
Contrast Ratio |
800:1 |
Aspect Ratio |
4:3 (native), 16:9 |
AUDIO |
Speakers |
2x1 watts |
INPUT SIGNAL |
Frequency |
Fh: 15-91KHz; Fv:50-120Hz |
Video |
RGB analog, NTSCM, NTSC 4.45, PAL, SECAM, HDTV (480i, 480p, 575i, 720p, 1080i) |
COMPATIBILITY |
PC |
Analog: from VGA up to UXGA (compressed) |
Mac®++ |
Analog: up to SXGA |
CONNECTOR |
Composite Video Input |
RCA jack (x1) |
S-Video Input |
Mini-DIN 4-pin (x1) |
Component Video Input |
RCA jack (x1 set) |
RGB Output |
DB-15 (x1) |
Audio Input |
RCA jack (x1) |
Audio Output |
3.5mm stereo mini jack (x1) |
Control |
RS-232 9-pin D-sub (x1) |
Network |
RJ-45 |
POWER |
Voltage |
90-264VAC, 50-60Hz (universal) |
Consumption |
430 watts (typ) |
OPERATING CONDITIONS |
Temperature |
32° F to 95° F (0° C to 35° C) |
Humidity |
10-85% (non-condensing) |
NOISE LEVEL |
Normal |
40 dB (typ) |
Whisper mode |
36 dB (typ) |
DIMENSIONS
(WXHXD) |
Physical (mm) |
420mm x 160mm x 320mm |
Physical (in.) |
16.5" x 6.3" x 12.6" |
WEIGHT |
Net/Gross |
17.0 lb. (7.7 kg)/26.5 lb. (12.0 kg) |
REGULATIONS |
UL60950/C-UL , FCC B, TUV/GS, CB, CE, C-Tick, GOST, NOM, CCC, PSB |
PACKAGE CONTENTS |
Projector, power cords, VGA cable, RCA video cable, remote control, lens cap, ViewSonic Wizard CD, Quick Start Guide |
WARRANTY |
Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp.*** |
OTHERS |
Lens shift, progressive scan, digital gamma correction, over scan, picture-in-picture, magnify (4x), monitor pass through, auto adjust, optional lenses |
|
