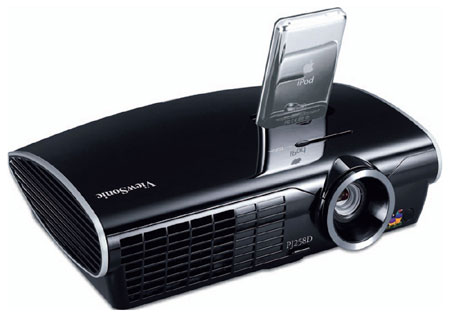

ViewSonic PJ258D DLP Ultra-Portable Video Projector
ViewSonic PJ258D MSRP: $1,399
Overview
ViewSonic's PJ258D ViewDock™ projector sets the bar for ultra-portable projectors for work and play by converging entertainment excitment with professional practicality. The integrated iPod with video dock lets you PROJECT CONTENT DIRECTLY FROM YOUR IPOD for larger-than-life pictures and videos. The array of projector connectivity options allows you to connect a PC, DVD player, game console, and more.
The PJ258D projector uses Texas Instruments DLP® technology for RAZOR SHARP DIGITAL IMAGES and brilliantly displays 2,000 lumens for use in virtually any setting. The PJ258D is perfect for table top use in meeting rooms and for the business traveler who needs a lightweight but powerful projector. Its stylishly contoured design is sophisticated for the contemporary professional on the go and the entertainment aficionado by night.
Features
- 2000 ANSI Lumens
- Native 1024 x 768 XGA Resolution
- 4:3 Native Aspect Ratio
- 2000:1 Contrast Ratio
- Weighs only 3.9 lbs
- Apple iPod Connectivity
- Supports HD signals including 720p and 1080i
- Unplug and go: Direct off feature lets you unplug the projector and go
Specifications
| TECHNOLOGY |
Type |
0.55" DDR DMD, DLP® |
| Pixel Format |
1024x768 XGA |
| Lens |
Manual zoom, manual focus |
| Zoom Factor |
1.2 |
| Keystone |
Vertical ± 15º |
| DISPLAY |
Size |
40"-300" (diagonally) |
| Throw Distance |
62.4"-468" |
| Throw Ratio |
1.94-2.27:1 |
| Lamp |
200W, 2,000 hours normal, up to 3000** hours eco |
| Brightness |
2,000 ANSI lumens (max) |
| Contrast Ratio |
2000:1 (max) |
| Aspect Ratio |
4:3 (native), 16:9 |
| AUDIO |
Speakers |
1x1-watt |
| INPUT SIGNAL |
Computer and Video |
RGB analog, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N60), SECAM (B, D, G, K, K1, L), 480i, HDTV (720p, 1080i) |
| Frequency |
Fh: 31.5-79.8kHz; Fv: 56-85Hz |
| COMPATIBILITY |
PC |
Analog: from VGA to SXGA (scaled) |
| Mac®+ |
Analog: to SXGA (may require a Mac adapter) |
| CONNECTOR |
RGB Input |
15-pin HD, D-sub (x2) |
| Composite Video Input |
RCA jack (x1) |
| S-Video Input |
Mini-Din 4-pin (x1) |
| Component Video Input |
VGA to RCA component adapter* (optional) |
| iPod |
Dock |
| POWER |
Voltage |
100-240 VAC, 50/60Hz (universal) |
| Consumption |
280W (typ) |
| CONTROLS |
Basic |
Standby/On, input, menu |
| OnView® |
Display (mode, brightness, contrast, white intensity, color temp, saturation), management (menu location, projection, keystone, source lock, high altitude, translucence, reset), frequency, phase, H. position, V. position, degamma, aspect ratio, V. shift 16:9, OSD language, color setting, lamp setting |
| OPERATING CONDITIONS |
Temperature |
32º-104°F (0-40°C) |
| NOISE LEVEL |
Normal |
37 dB (typ) |
| Whisper mode |
34 dB (typ) |
DIMENSIONS
(WXHXD) |
Physical (mm) |
288mm x 190mm x 83mm |
| Physical (in.) |
11.3" x 7.5" x 3.5" |
| WEIGHT |
Net |
3.9 lb. (1.8 kg) |
| Gross |
10.1 lb. (4.6 kg) |
| REGULATIONS |
UL, C-UL, FCC-B, CB, CE, TUV/GS, CCC, PSB, NOM |
| OTHER |
Whisper mode, iPod dock, optical zoom, wireless remote control, soft carrying case, progressive scan, direct off for unplug and go, daylight mode |
| PACKAGE CONTENTS |
iPod dock, projector, power cords, VGA cable, RCA video cable, remote control, soft case, lens cap, ViewSonic Wizard CD, Quick Start Guide |
| WARRANTY |
Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp** |
|
