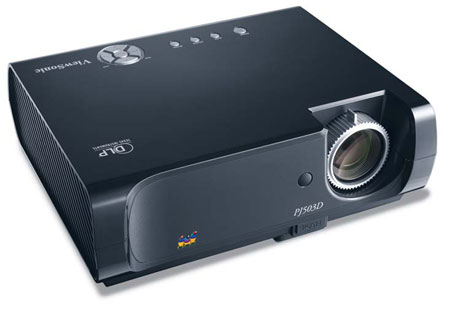

ViewSonic PJ503D DLP Portable Video Projector
ViewSonic PJ503D MSRP: $599
Overview
ViewSonic's PJ503D DLP® projector delivers the best entry level performance value in the market. Topping the list of performance features is the AMAZING CLARITY OF DLP TECHNOLOGY. The PJ503D is the right choice for the small offices, classrooms and even home use. This versatile projector offers 1,500 lumens and a high 2000:1 contrast ratio (typ) in only 5.7 pounds. MULTIPLE INPUTS, ADVANCED IMAGE PROCESSING and SUPPORT FOR 720P AND 1080I SIGNALS let you connect your PC, DVD player and more.
The native 800x600 SVGA resolution and digital keystone correction ensure that you'll get the best possible image in virtually any setting. The PJ503D is a lightweight, versatile projector thats perfect for those on a tight budget or looking for their first home projector.
Features
- 1500 ANSI Lumens
- Native 800 x 600 SVGA Resolution
- 4:3 Native Aspect Ratio
- 2000:1 Contrast Ratio
- Weighs 5.7 lbs
- HDTV Compatible
- Motion adaptive deinterlacer for superior video performance
Specifications
| TECHNOLOGY |
Type |
0.55" DMD, DLP® |
| Pixel Format |
800x600 SVGA |
| Lens |
Manual focus |
| Keystone |
Vertical ± 7º |
| DISPLAY |
Size |
38"-150" (diagonally) |
| Throw Distance |
60"-236" |
| Throw Ratio |
2:1 |
| Lamp |
160W, 2,000 hours normal, up to 3,000 whisper eco mode** |
| Brightness |
1,500 ANSI lumens (max) |
| Contrast Ratio |
2000:1 |
| Aspect Ratio |
4:3 (native), 16:9 |
| INPUT SIGNAL |
Computer and Video |
NTSC M, NTSC 4.43, PAL, SECAM, HDTV (480i, 480p, 576i, 576p, 720p, 1080i) |
| Frequency |
Fh: 30-100kHz; Fv: 50-87Hz |
| COMPATIBILITY |
PC |
Analog: from VGA up to SXGA (scaled) |
| Mac®+ |
Analog: up to SXGA (may require a Mac adapter) |
| CONNECTOR |
RGB Input |
15-pin HD, D-sub cable (x1) |
| Composite Video Input |
RCA jack (x1) |
| S-Video Input |
Mini-DIN 4-pin (x1) |
| Component Video Input |
VGA DB-15 to HDTV/component cable* |
| Control |
8-pin mini-Din for RS232 |
| POWER |
Voltage |
100-240 VAC, 50/60Hz (universal) |
| Consumption |
250W (typ) |
| CONTROLS |
Basic |
Standby/On, input, menu |
| OnView® |
Display mode, brightness, contrast, keystone, aspect ratio, blank screen, color temperature, user color, video (sharpness, saturation, tint), display (phase, H. position, V. position), advance (auto source select, eco mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset) |
| OPERATING CONDITIONS |
Temperature |
32-104°F (0-40°C) |
| Humidity |
10-90% (non-condensing) |
| NOISE LEVEL |
Normal mode |
30 dB (typ) |
| Whisper mode |
27 dB (typ) |
DIMENSIONS
(WXHXD) |
Physical (mm) |
263mm x 108mm x 218mm |
| Physical (in.) |
10.35" x 4.25" x 8.6" |
| WEIGHT |
Net |
5.7 lb. (2.6 kg) |
| Gross |
8.15 lb. (3.7 kg) |
| REGULATIONS |
UL, FCC-B, CCC, CE, NOM, PSB, CUL, ICES-003, Argentina TUV/GS, RoHS, IRAM, CB |
| OTHER |
Vertical digital keystone correction, 3:2 pull down, whisper mode, high altitude mode |
| PACKAGE CONTENTS |
Projector, power cords, VGA cable, remote control, lens cap, ViewSonic Wizard CD, Quick Start Guide |
| WARRANTY |
Two-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp.*** |
| RECYCLING/DISPOSAL |
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. |
|
