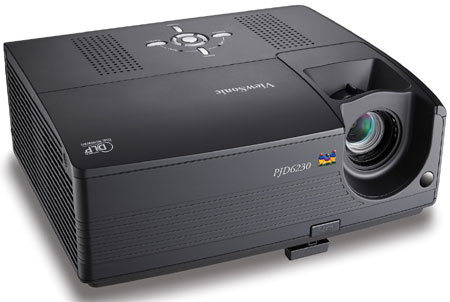

ViewSonic PJD6230 DLP Portable Video Projector


ViewSonic PJD6230 Video Projector

ViewSonic PJD6230 MSRP: $1,359

Overview

The Viewsonic PJD6230 portable projector is the lightweight DLP® projector with BrilliantColor™ technology for more vibrant colors and crisp, sharp images in virtually any setting. The high brightness and contrast ratios, combined with keystone correction and zoom lens ensure this projector delivers your presentation perfectly. Mount this projector on the ceiling for use in classrooms or meeting rooms or use on a table top.

The conveniently placed lamp makes maintenance a breeze on the PJD6230. Enjoy network control through the RJ-45 input, while the extensive input options and integrated 2x5-watt speakers offer a truly dynamic multimedia experience. This projector even features closed captioning for the hearing impaired. The PJD6230 projector is ideal for use in classrooms and corporate settings.

Features

  • 2700 ANSI Lumens
  • Native 1024 x 768 XGA Resolution
  • 4:3 Native Aspect Ratio
  • 2000:1 Contrast Ratio
  • Weighs 6.5 lbs
  • Network control through RJ-45
  • Closed captioning
  • Easy lamp replacement
  • Up to 4,000 hours of lamp life

Specifications

DISPLAY Type 0.55” Digital Micromirror Device (DLP®)
Pixel Format XGA 1024x768 (native) / SXGA 1280x1024 (compressed)
Lens 1.1× Manual Optical Zoom / Manual focus
Keystone Vertical Digital keystone correction: +/- 40 degrees
Size 30”-300” (Diagonal) / 0.8m-7.6m
Throw Distance 1.2m-10m (47”-393”)
Throw Ratio 1.97:1~2.16:1
Lamp 200 watt
Lamp Life (Normal / Eco Mode) 3500 / 4000* (hours)
Brightness (max) 2,700 ANSI lumens
Contrast Ratio 2000:1 (typ)
Aspect Ratio 4:3 (native), 16:9
Color Gamut 85% NTSC (CIE 1931)
AUDIO Speakers 2 x 5w
INPUT SIGNAL Computer and Video RGB analog, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV / EDTV (480i/p, 576i/p), HDTV (720p, 1080i/p)
Frequency Fh: 15-100 KHz, Fv: 43-85 Hz
COMPATIBILITY PC Analog /: VGA up to SXGA (scaled)
Mac®+ Analog /: up to XGA (scaled)
CONNECTOR RGB Input / Output 2 × in / 1× out (15-pin D-sub)
Composite Input 1× RCA jack
S-Video Input 1× 4-pin mini-DIN
Audio Input / Output In ×1 / out ×1 (3.5mm Mini Jack)
USB 1× USB type B (firmware upgrade only)
Control 1× RS232 (6 pin D-Sub)
Network 1×RJ-45
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 265W (typ.) / 9W (Stand-by mode)
CONTROLS Basic Standby / On, input, menu
OSD Picture: brightness, contrast, color setting, keystone, aspect ratio,image, white intensity, gamma

Computer image: frequency, tracking, H position, V position

Video image: saturation, sharpness, tint

Sound: volume, mute

Setting: menu position, projection, signal type, lamp hour, lamp hour reset, power saving, auto source, ECO mode, high altitude, OSD timeout

Option: blank screen, start-up screen, screen capture, password, DCR, closed caption, network control, BrilliantColor™

Network config: DHCP, IP address, subnet mask, gateway

Factory default
OPERATING CONDITIONS Temperature 32ºF - 104ºF (0ºC - 40ºC)
Humidity 10% to 80% (non-condensing)
Altitude 0 to +10,000 ft (3,048 m)
NOISE LEVEL Normal 36dB
Eco-mode 34dB
DIMENSIONS
 W x H x D 8.93" x 4.3" 8.77" (271mm× 110mm × 223mm)
WEIGHT Net 6.5 lbs (2.9 kg)
Gross 11.1 lbs (5.0 kg)
REGULATIONS CB, UL/cUL, FCC-B, ICES-003, IRAM, NOM, CE, GS, GOST- R, Hygienic, SASO, UKrSEPRO, CCC, C-tick, EK
PACKAGE CONTENTS Projector, Power cable, VGA cable, Remote control with batteries, Composite cable, S-video cable, Soft carrying case, Lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide), VGA-component adapter
WARRANTY 3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange® service.
