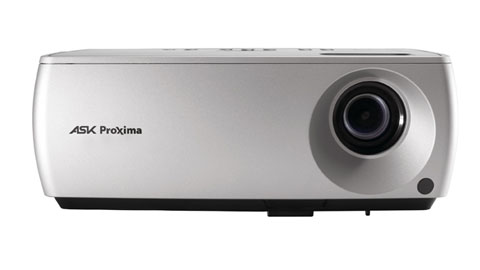

Ask Proxima A1100 Video Projector ask proxima a1100

SUMMARY - Ask proxima a1100 2500 ANSI Lumens DLP Portable Video Projector:

ASK Proxima A1000 series DLP projectors with Brilliant Color technology and 5 segment color wheel display realistic colors and brighter images that last. Powered by 2500 lumens, the A1000 series project bright images in high ambient light environments. Advanced connectivity choices include multiple computer and audio inputs - so it's easy to switch between presenters, a Wireless-Ready pot for an easy upgrade to the InFocus Lite Show II, and an RS232 pot for integration with industry-standard meeting room control systems.

DETAILED SPECS - ASK PROXIMA A1100 2500 ANSI LUMENS DLP PORTABLE VIDEO PROJECTOR:

Native Resolution A1100: SVGA

Display Technology Texas Instruments DLP Technology .55” LVDS DDP2230 /w Brilliant Color

Brightness 2500 lm normal, 1800 lm eco

Contrast Ratio 2000:1

Input Sources (2) D-sub HD15, S-Video, Composite Video, USB, (2) Audio-in, RS232

Output Sources Monitor Loop-thru (HD15), Audio out, DC output : 5V 2A

Max Resolution A1100 : XGA

Supported Aspect Ratio A1100 4:3 (default); 5:4, 16:9, 16:10

Video Compatibility NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and SDTV(480i/576i), EDTV(480p/576p), HDTV(720p/1080i)

Number of Colors 16.7 Million, True color

Color Wheel 5 segment (RGBYW)

H-Synch Range 31 ~ 79 KHz

V-Synch Range 50 ~ 85 Hz

Keystone Correction +/- 20 deg. (Vertical)

Min Image Size (width) 0.61 m

Max Image Size (width) 6.09 m

Zoom Ratio 1.1 : 1

Throw Ratio (distance/image width) 1.97 - 2.16 (Distance/Width)

Projection Distance 1.2 - 10 m

Image Offset 115%

Projection Methods Front, Rear, Ceiling-Front, Ceiling-Rear

Audio 2W speaker

Control RS232, USB

Lamp 200W normal, 170W eco

Product Dimensions Height: 4.3” (105mm) Length: 9.5” (240mm) Width: 11.7” (296mm)

Product Weight 6.9 lbs (3.1kg)

Product Color Black and Silver

Shipping Weight 11.6lbs (5.8kg)

Shipping Dimensions Height: 9.4” (239mm) Length: 13” (330mm) Width: 16.5” (427mm)

Power Consumption 250 Watts normal, 220 Watts eco

Power Supply 100~240Vac, 50/60Hz

Operating Temperature 5 - 35° C

Max Altitude 10,000 ft

Ships with (HW accessory only) Power cord, USB(AB), VGA cable, Carry Case, Remote w/ batteries

Menu Languages English/ Français/ Deutsch/ Italiano / Korean / Norwegian/ Português / Russian / Simplified Chinese / Spanish / Traditional Chinese / Swedish / Dutch / Polish / Turkish / Danish / Finnish

Lamp Life 2500 hours normal, 3000 hours eco

Audible Noise 35dB normal, 32dB eco

Projector Warranty 2 years

Lamp Warranty 6 months

Accessories Warranty 90 days

Approvals C-Tick mark (Australia) NOM certification (Mexico),CE (Europe), UL & CUL (USA and Canada), FCC (USA), IRAM (Argentina), GOST (Russia), MIC & eK (South Korea), CCC (China), PSB (Singapore)
