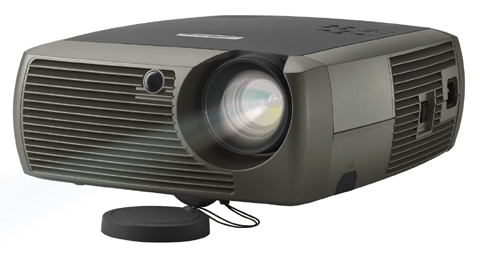

The new ASK Proxima
C110 is the first digital projector in the ASK Proxima line designed to
deliver great performance during the workday and shine on into an
entertaining evening. The C110 marks the spot where valuable business tools
and versatile performance options converge into a projector of exceptional
quality. At work, school, or anywhere else you want to share information.
Key Features
Contrast Ratio
Brightness
Aspect Ratio
Native Resolution
2000:1
1600 ANSI Lumens
4:3
800 x 600
SPECIFICATIONS - Proxima
C-110 svga dlp Projector
Native Resolution
SVGA 800 x 600
Display Technology
DLP by Texas
Instruments: 0.55" SVGA DDR DMD
Input Sources
Computer (M1-DA); Video (S-Video 4-pin
mini DIN and
Composite RCA; Audio (Stereo RCA)
Output Sources
Monitor Out (VESA);
Audio (3.5mm)
Computer
Compatibility
SVGA, VGA, XGA,
Macintosh
Video Compatibility
NTSC, PAL, SECAM,
DVI, HDTV (1080i, 720p, and 480p)
Brightness
1600 max ANSI
lumens (standard mode) • 1100 max ANSI lumens (whisper mode)
Contrast Ratio
2000:1 full on/full
off
Number of Colors
16.7 million
H-Synch Range
31.5 – 80 kHz
V-Synch Range
50 – 85 Hz
Dot Clock
20 to 95 MHz
Digital Keystone
Correction
+/- 20° vertical correction; data/video
Projection Lens
Zoom lens with
manual focus and manual zoom adjust
Zoom Ratio
1.2:1
Throw Ratio
1.89 to 2.27:1 (D/W), 1.51 to 1.82:1
(D/D)
Minimum Projection
Distance
1.5 m (maximum distance 9.8 m)
Aspect Ratio
4:3 and 16:9
Image size
(diagonal)
2.7’ to greater than 21.6’ (0.8 m to
greater than 6.5 m)
Projection Methods
Front, ceiling,
rear
Audio
2.5-Watt mono
Control
Projector keypad;
IR remote control
Lamp
200W SHP/3000 hours
Dimensions
9.8" (W) x 12.9" (L) x 4.2"(H) /24.9cm x
32.7cm x 10.6cm
Weight
6.8 lbs/3.1 kg
Power Consumption
200 watt
typical/250 watt maximum
Power Supply
100V – 240V at 50 –- 60 Hz
Operating
Temperature
5° to 40° C at sea level (0 to 10,000');
41° – 104° F
Menu Languages
English, Norwegian,
Spanish, Italian, Portuguese, German, French, Chinese (simple), Chinese
(traditional), Japanese, Korean, Russian
Audible Noise
39 dB (standard
mode) 37 dB (whisper mode)
Approvals
UL,
c-UL, TUV GS, CE, GOST, C-Tick, NOM, IRAM, FCC B, CISPR22 /EN55022, EN
55024 / CISPR 24, CB certified according to IEC60950 / EN60950: 1997, P(SE), MIC
Lamp Warranty
90 days or 500
hours
Product Warranty
1 year parts and
labor
Accessory Warranty
1 year
Ships Standard With
Lens cap
Wireless Navigator Remote Control (including batteries)
Computer cable
RCA Video and Audio cable
Power cord
Projector System CD includes: multi-language User Guide,
Quick Start Card, URL/service information/accessories after market
User Guide (printed version) Quick Start
Card (printed version)
