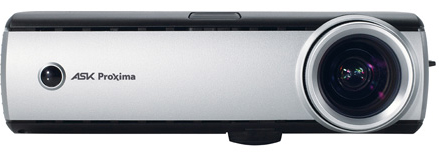

The new ASK Proxima C175 are designed to help you get your ideas across as clearly as possible. These innovative projectors provide the power you need, and thanks to the reliability of DLP technology, you’ll be worry-free. Once you see what an impact these projectors make on your meeting, you’ll never want to present without one. With the C175 in your office you’ll give your ideas the biggest, brightest and clearest platform possible.
Display Technology DLP by Texas Instruments: 0.7" XGA DDR DMD
Computer Input Sources VESA, M1-DA
Computer Compatibility SXGA+, SXGA, XGA, SVGA, VGA, Macintosh
Video Compatibility Full NTSC, PAL, SECAM, SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i)
Contrast Ratio 1000:1
Projection Lens Manual zoom lens
Zoom Ratio 1.2:1
Throw Ratio 1.83:1 - 2.27:1 (Throw Distance/Image Width)
Projection Distance 5' - 32.8' (1.5m - 10.0m)
Image Offset ratio (%) 115%
Aspect Ratio 4:3 Native Aspect Ratio
Image size (diagonal) 0.89 - 22 ft
Projection Methods Front, rear and ceiling
Dimensions: 2.9” (H) x 10.4” (L) x 8.6” (W)
Weight: 5.2 lbs / 2.4 kg
Computer Input Sources M1-DA, VESA
Video Input Sources Composite RCA, S-video
Digital Keystone Correction (Vertical) +30/-25 degrees
Projector Control Menu, Keypad, USB, RS-232
Output Sources Variable Audio (3.5mm Stereo), Monitor Out (VESA)
Audio 3.0-Watt
Brightness 2000 max ANSI lumens
Number of Colors 16.7 million
Projector Interface Languages English, German, French, Italian, Spanish, Norwegian, Portuguese, Simplified Chinese
Lamp 200W SHP / 2000 hours*
H-Synch Range 15.6 - 85 kHz
V-Synch Range 48 - 85 Hz
Power Consumption 260 watts
Power Supply 100V - 240V at 50/60 Hz
Operating Temperature 10°- 35°C at sea level (0 to 7,500'/2,286meters); 50° - 95° F
Audible Noise 35dB
Approvals UL and c-UL (US/Canada), FCC-A (US/Canada), CE (CE member countries), GOST (Russia), TUV GS (Germany), CCC (China), IRAM (Argentina), NOM (Mexico), C-Tick (Australia)
Lamp Warranty 6 months
Product Warranty 2 years parts and labor
Accessories Warranty 90 days
Ships Standard With Soft carry case, Work Big Remote, M1-A computer cable with USB mouse, power cord, user manual, quick start card and CD.
