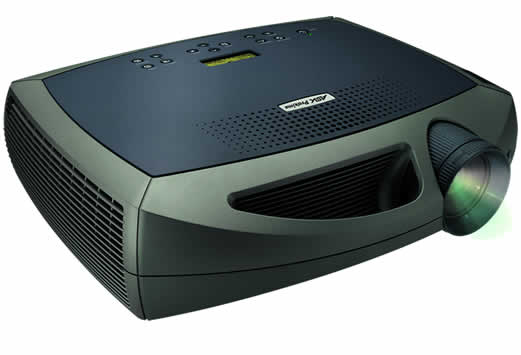

The remarkable flexibility of the ASK
Proxima C410 starts with its ability to be ceiling mounted or carted between
rooms for a high-end meeting room solution. With six inputs, there’s no need
for an external switcher for multiple presenters. Need to change lenses for
different rooms? No problem. User-replaceable bayonet lenses can be
changed without tools—just push and twist.
User-changeable manual zoom lens
Zoom Ratio 1.3:1
Throw Ratio 1.8:1 – 2.4:1 (D:W)
Projection Distance 5' – 32.8' / 1.5m – 10.0m Image Offset
ratio (%) 100 ± 5 %
Aspect Ratio
4:3
Image size
(diagonal)
40" – 200"/101.6cm
– 508.0cm
Projection Methods
Front, rear and
ceiling
Projector Audio
(On-Board)
2x1-Watt stereo
Projector Interface
User LCD interface
or Menu system
Projector Interface
Languages
English, Spanish, French, German,
Japanese, Korean, Portuguese, Italian, Norwegian, Russian,
Chinese Simple, Chinese Traditional
Projector Control
IR Remote, keypad,
ProjectorManager, RS 232, NIC (RJ45), ProjectorNet
Mouse Control
USB, PS2
Lamp
250W UHP / 2000
hours
Dimensions
4.3" x 13.1" x
15.6"/11.0cm x 33.3cm x 39.7cm
Weight
13.1 lbs/6.0 kg
Power Consumption
350-Watt
Power Supply
100V – 240V at 50-60 Hz
Operating
Temperature
10° to 35°C at sea level (0 to 10,000');
50° to 95°F
Audible Noise
34dB
Approvals
FCC A (US/Canada
,UL & cUL (US/Canada),
Lamp Warranty
90 days or 500
hours, whichever comes first
Product Warranty
2 years parts and labor
Accessory Warranty
1 year
Ships
Standard With:
Protective sleeve
Conductor Plus full-featured remote with laser pointer
Color-coded cable straps
VGA analog computer cable
USB mouse cable
3.5mm computer audio cable
RCA audio/video cable
Power cord User manual,
quick start card and CD
