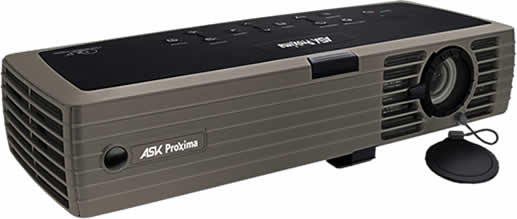

The M1 was designed to reduce the anxiety of
using a projector. From the simplified keypad to the icon-based menus and
color-coded connections, the M1 is simple to operate every time, right out
of the box. So you’ll look smooth and in control of every presentation. The
M1 also delivers superior brightness in nearly any environment,
whisper-quiet operation, and outstanding image control, all in a sleek,
manageable shape. So you get the benefits of mobility without sacrificing
the functionality you get with a full-size projector. Travel light—it’s the
business traveler’s mantra. The ASK Proxima M1 answers the call,
weighing just 1.98 lbs/0.9 kg. And because of its revolutionary shape, it
fits where others can’t, so you only need one briefcase for your laptop and
projector.
Key Features- Proxima m1 Portable Video Projector
Contrast Ratio
Brightness
Aspect Ratio
Native Resolution
2000:1
1000 ANSI Lumens
4:3
1024 X 768
SPECIFICATIONS - proxima M-1
XGA DLP Projector
Native Resolution
XGA
1024 x 768
Display Technology
DLP
by Texas Instruments: 0.7" XGA 12° DMD DDR
Input Sources (standard)
Computer (M1-DA), Video (S-Video; RCA via
standard S-Video to RCA input
adapter), Audio (3.5mm Mini jack)
Computer Compatibility
SXGA, XGA, SVGA, VGA, Macintosh
Video Compatibility
Full NTSC, PAL, SECAM
Brightness Standard Mode
1000 max ANSI lumens
Contrast Ratio
2000:1 full on/full off
Number of Colors
16.7 million
H-Synch Range
15 – 100 kHz
V-Synch Range
43.5 – 130 Hz
Pixel Clock
Digital 112 MHz (max); Analog 135 MHz (max)
Digital Keystone Correction
±7.5° vertical correction; data/video
Image Offset
112%
Projection Lens
Zoom Lens with manual focus and manual zoom adjust
Throw Ratio
1.8
– 2.1:1 (typical)
Minimum Projection Distance
1.5 m – 5 m (optimum)
Aspect Ratio
4:3
Image size (diagonal)
0.9
m to greater than 3.5 m
Projection Methods
Front and Rear
Audio
3.5 mm mini-jack; 1-Watt speaker
Control
Projector keypad; IR remote control; Wired control through USB
Lamp
120W UHP / 2000 (typical)
Dimensions (maximum)
2.05"/5.21 cm (H) x 3.69"/9.37 cm (L) x
9.75"/24.77 cm (W)
Weight
0.9 kg
Power Consumption
150-Watt
Power Supply
100V – 240V at 50/60 Hz
Operating Temperature
5° – 40° C at sea level (0 – 10,000'/3,048
m), 41° – 104° F
Menu Languages
English, Norwegian, Spanish, Italian,
Portuguese, German, French, Chinese
(simple), Chinese (traditional), Japanese, Russian, Korean
Audible Noise
36dB
Approvals
FCC
A (US/Canada), UL & cUL (US/Canada)
Lamp Warranty
90 Days or 500 hours, whichever comes first
Product Warranty
2
years parts and labor
Accessory Warranty
1 year
Ships Standard With
Wireless Interlink Presenter Remote Control (including batteries)
3m/10 ft Power Cord (national and regional variants)
2m/6.75 ft M1-A Analog Computer Cable with USB 1.8m/6 ft S-Video Cable
S-Video to RCA video input adapter
1.8m/6 ft Audio Cable
Audio Cable Adapter
Protective Sleeve
Projector System CD includes:
multi-language users guide, ProjectorManager control software
Quick Setup Guide
Tethered Lens Cap User Guide (printed version)
Safety Instructions/Warnings
Projection Lamp Module
Color-Coded Cable Ties, 3 set
