Overview -

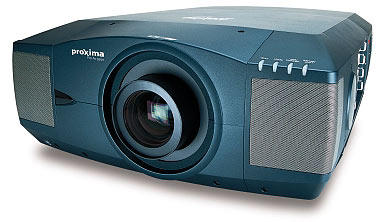

proxima pro av 9350 multimedia presentation video LCD projector
Outstanding
brightness, detailed contrast and high-quality video
processing make the Proxima Pro AV 9350 the
perfect choice for large venue and rental and staging
environments. The Pro AV 9350 combines advanced image
features like V-Scan, Horizontal and Vertical Lens Shift
and Digital Keystone Correction with flexible
installation options like BNC connections, optional
lenses, wired remote and modular inputs. And with
compatibility to Proxima's exclusive ProjectionLink
connectivity technology, installation is made easy and
clean. With the Pro AV 9350, you get the best service,
quality and features at a price you can afford.
Features:
Horizontal and
Vertical Lens Shift for flexible installation and
positioning
Dual lamp option for
exceptional brightness and extremely long 3,000 hour
lamp life
Six optional lenses
ensure flexible positioning and outstanding image
quality
700:1 contrast ratio
displays crisp, clear images
V-Scan video
processing provides superior video performance
Component video
input for DVD and HDTV compatibility
Computer connector
modules and DVI input for a completely digital
interface
Modular input design
allows for easy site customization
Clean installation
with compatibility to Proxima's exclusive
ProjectionLink connectivity technology
Resolution
XGA
(1024 x 768)
Brightness
(ANSI Lumens)
5000
Weight
(lbs.)
78.4
Display
Technology
1.8''
Polysilicon TFT LCD x 3 with micro lens array
Uniformity
(%)
85
Data
Signals
IBM
PC, PS/2, Pentium and Compatibles; SUN, SGI, IBM,
HP, DEC; Apple Macintosh, Power Macintosh,
PowerBook
DVI-I,
audio, control (DIN-8); BNC x 5 (R/Pr, G/y, B/Pb,
H/HV, V) audio, control (DIN-8); BNC x 2 (Video/Y,C)
audio, S-Video; D-Sub15, audio, control (DIN-8);
Serial Port in (DB-9); USB
Output
Serial
Out, Audio Out
H-Sync
Range
15 -
120 kHz
V-Sync
Range
50 -
120 Hz
Built-in
Audio
N/A
Audible
Noise (dB)
<45
Dimensions
(H x W x D)
9.9
in. x 22.9 in. x 31.3 in.
Included
Accessories
Wired/Wireless
remote control, US and European power cables,
Product documentation, registration card, VGA
Cable, MAC Adapter, PC Serial, PS/2 and ADB
Control Cables, AV Cable, S-video Cable, Audio
Cable,Remote Control Cable, Lens cap
Remote
Control
Wired/Wireless
remote control
Mfg.
Warranty
Three
years on parts and labor; 90 days (or 500 hours)
on lamp; two years of free ProXchange replacement
service
