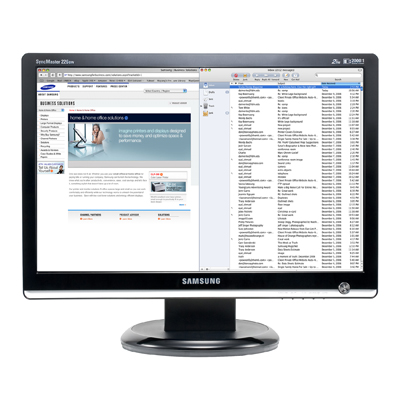

Samsung 206BW SyncMaster 20 inch Widescreen LCD Monitor

No Longer Available

Return to Samsung LCD Monitor Page

KEY POINTS - 206BW Samsung SyncMaster 20 inch Widescreen LCD Monitor:

• 1680 x 1050 resolution
• 3000:1 dynamic contrast ratio
• 300 cd/m2 brightness
• 2ms response time (GtG)
• DVI (w/HDCP) input

SUMMARY - Samsung 206bw SyncMaster 20 inch Widescreen LCD Monitor:

The Samsung SyncMaster 206BW is a 20-inch Wide TFT-LCD delivering a 3000:1 Dynamic contrast ratio, 300 cd/m2 brightness, 1680 x 1050 resolution, 160 degree viewing angle and scanning frequency of 30-81kHz horizontal and 56-75Hz vertical. It is Vista Premium Certified and HDTV Ready with DVI input (HDCP support). Comes in a Piano Black finish.

DETAILED SPECS - SAMSUNG 206BW 20 INCH LCD MONITOR:

• Viewable area: 20"

• Pixel Pitch (mm): 0.258 x 0.258

• Brightness (cd/m2)(typ.): 300 cd/m2

• Contrast Ratio (typ.): 800:1 (DCR 3000:1)

• Viewing Angle (H/V) 160/160

• Response Time (ms)(typ.) 2(GTG)

• Horizontal Frequency: (kHz) 30 ~ 81

• Vertical Frequency: (Hz) 56 ~ 75

• Maximum Resolution: 1680x1050

• Color Supported 16.7 Mil.

• Input Video Signal Analog RGB, DVI (w/HDCP)

• Sync. Type Separate H/V, Composite, SOG

• Input Connectors 15pin D-sub, DVI-D

• Plug & Play DDC 2B

• USB powered hub option X

• Mac compatibility O

• Power: On Mode 55 Watt (Max), DPMS Mode <1 Watt, Type Built-in

• Multimedia Speakers X

• Wall-Mount VESA 100

• TCO X

• Cabinet Color: Black High Glossy

• Weight and Dimensions

  • Set (W*H*D)(mm) (with stand) 476.0*396.4*219.3

  • Set (W*H*D)(mm) (w/o stand) 476.0*65.2*329

  • Packing (W*H*D)(mm) 563*166*451

  • Weight Set(kg) 5.3

  • Packing (kg) 7.8

• Special Features: DVI(HDCP), MagicBright3, Black High Glossy, Vista Premium Certified

• Stand Type Simple

• Function Swivel, Tilt

Manufacturer Link: www.samsung.com
