OVERVIEW - Sanyo PLC-XU47
2000 ANSI Lumens LCD
Video Projector
Weighing in at only 6.0 lbs, the Sanyo PLC-XU47 is a very
portable solution for your presentation needs. A bright 2000 ANSI
Lumens combined with a 450:1 contrast ratio ensures your audience won't miss
a thing. Ultra-crisp 1024 x 768 XGA resolution provides clear, sharp images
and enables you to display High Definition video in any HDTV format (480i, 480p, 575i, 575p, 720p, 1035i, and 1080i).
FEATURES - sanyo plc-xu47
portable lcd projector
True XGA (1024 x 768) Resolution Compressed SXGA Resolution
2000 ANSI Lumens (Typical)
450:1 Contrast Ratio
4:3 Aspect Ratio
Standard Zoom Lens (1:1.5)
HDB15 x 2
Interlaced/Progressive Signal Conversion
Switchable D-Sub 15 Input/Monitor Output
Variable Audio Out
HDTV Compatible
X-Y Digital Keystone Correction
Whisper Quiet Fan Control System
Lightweight yet Durable Magnesium Alloy Cabinet
Customizable Start-up Logo
Optional carrying case
Weighs only 6.4 pounds

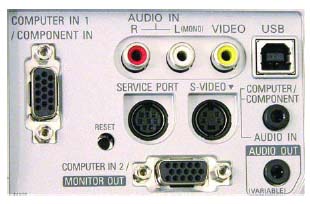

PLC-XU47 Rear Panel View
Click For Larger Image
SPECIFICATIONS - SANYO PLCXU47
LCD VIDEO PROJECTOR
Projector Type
Multimedia Projector
Dimensions (WxHxD)
11.73 x 2.8 x 8.39
Net Weight
6.0 lbs
Feet Adjustment
0 to 11.8
LCD Panel System
0.8 TFT Active Matrix type 3 panels
Panel Resolution
1,024 x 768 dots
Number of Pixels
2,359,296 (1,024 x 768 x 3
panels)
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N
High Definition TV Signal
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Scanning Frequency
H-sync 15 ~ 100 KHz, V-sync 50 ~ 100 Hz
Projection Image Size
33 To 300 (Diagonal)
Projection Lens
F 1.7~ 2.1 lens with f 26.7 mm ~ 32.0 mm with manual
zoom
Throw Distance
4.3 ~ 32.8 (1.3M ~ 10.0M)
Projection Lamp
200W
Video Input Jacks
RCA Type x 1 (video) and Mini DIN 4 pin x 1
(S-Video)
Audio Input Jacks
RCA Type x 2
Computer Input 1/ Component Input Terminal
:(VGA) HDB15 Terminal X 1
Computer Input 2/ Monitor Output Terminal
:(VGA) HDB15 Terminal X 1
Computer/ Component Audio Input Jacks
Mini Jack (stereo) x 1
Service Port Connector
Mini DIN 8 pin x 1
USB Connector
USB Series B receptacle x 1
Audio Output Jack
Mini Jack (stereo) x 1 (variable)
Internal Audio Amp
1.0W RMS
Built-in Speakers
1 Speaker
Power
AC 100 ~ 120 V 50/60 Hz
Accessories
Owners Manual
AC Power Cord
Remote Control and Batteries
VGA Cable
Lens Cover
PIN Code Label
