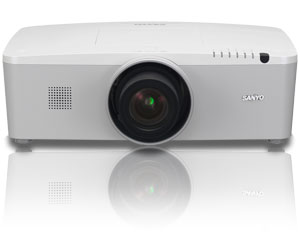

KEY POINTS - Sanyo plcwm4500l wxga 3lcd video projector with 4500 ansi lumens and optional lens:
WIDE ASPECT AND HIGHEST BRIGHTNESS
Wide XGA resolution makes it possible to project both HD video contents and wide aspect PC without any setting adjustment. The PLC-WM4500L Projector has an HDMI terminal which is the most popular terminal for video sources. Its higher light efficiency and superior cooling technology allows for the highest brightness (4500 Lm) in its class.
FLEXIBLE INSTALLATION
This unit is Equipped with power vertical and horizontal lens shift/keystone correction. Also 5 lens options along with the standard lens make this a very flexible projector.
EASY MAINTENANCE – LONG LIFE FILTER
Newly developed long life filter can last up to 3000 hours in eco mode. Its design is larger and thicker than filters of old. Filter life cycle under ideal conditions is same as lamp life, therefore the user can change both lamp and filter at once. You can save maintenance cost as well.
DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable projector to handle many applications for high-quality, high contrast image presentations.
PICTURE IN PICTURE (P in P), PICTURE BY PICTURE (P by P)
This function makes it possible to project two different sources with one projector. Video conference, PC, video or even satellite lecture type of application should be suitable with using this function.
CLOSED CAPTION
The PLC-WM4500L is Closed Caption compatible.
SUMMARY - Sanyo plcwm4500l WXGA 3LCD Video Projector with 4500 ANSI Lumens and Optional Lens:
The Sanyo PLC-WM4500L is a high performance Wide XGA projector that targets a wide range of environments, including large conference rooms, lecture halls and digital signage applications. The 16:10 widescreen aspect ration with 1280 x 800 pixels of resolution allows the display of significant more information than is possible with 4:3 XGA panels at lower resolution
DETAILED SPECS - SANYO PLC-WM4500L WXGA 3LCD VIDEO PROJECTOR WITH 4500 ANSI LUMENS AND OPTIONAL LENS:
Brightness
4500 Lumens
Resolution
WXGA (1280 x 800)
Uniformity
90%
Panel System
0.75” TFT Poly x 3
Number of Pixels
3,072,000 (1,024,000 x 3)
Contrast Ratio (Full on / off)
800:1
Image Size
Dependent on Lens
Aspect Ratio
16:10
Projection Lamp (s)
275W NSHA
Scanning Frequency
H:15-100kHz, V:48-100Hz
Dot Clock
140MHz
dB Rating
31.0 dBA (Eco)
Voltage
100-240V
BTU Rating
1433
Power Consumption
420W
Weight
20.5 lbs / 18.7 lbs (without Lens)
Dimensions (inch)
19.6 x 6.5 x 14.8
Projection Lens (inch)
Lens Sold Separately
Throw Distance (feet)
Dependent on Lens
Zoom / Focus
Dependent on Lens
Throw Ratio
Dependent on Lens
Zoom Ratio
Dependent on Lens
Up / Down Ratio
10:-1 -1:10(Lt /Rt6:4 ~ 4:6) dependent on lens
Power Lens Shift
Up/Down/Left/Right
Optional Lenses
Yes
Rear Screen Projection (L / R Reverse)
Yes
Ceiling Mountable (T / B Reverse)
Yes
Digital Keystone Correction
V +/- 40°, H+/- 20°
Digital Zoom
49x - 1/4x
Digital Interface (HDCP Compatible)
DVI-D
Analog Interface
5BNC, D-sub 15pin, RCA, S-Video
USB Port
Yes
RS-232 Control Carry and / or
Yes
Speaker Output
7W
Audio Output
Stereo Mini
PC Monitor Output
Yes
PC-Less Presentation
No
Wireless Presentation
No
Network Control / Admin
Yes
Custom Startup Screen
Yes
Detachable Input Panels
No
Shipping Case
No
Remote Control
Wired / IR
Lamp Life (hours Normal / Eco)
3000h (eco)
Warranty Information
Three years parts and labor;
90 days original lamp;
Quick Repair Program under Warranty
