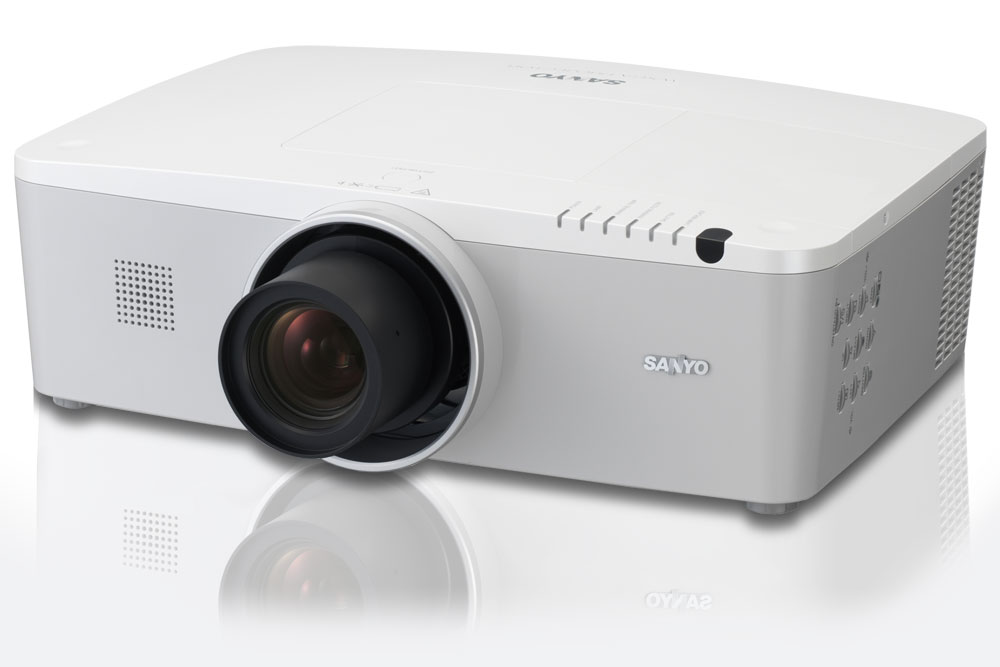

KEY POINTS - Sanyo plcwm5500l wxga 3lcd video projector with 5500 ansi lumens and optional lens:
High resolution Wide XGA projectors have the highest brightness in their class at 5,500 ANSI lumens
Picture-in-Picture and Picture-by-Picture modes enable simultaneous presentation of two images
Ideal for large conference rooms and lecture halls
3LCD Display Technology
5500 ANSI Lumens
1280 x 800 Native Resolution
16:10 Native Aspect Ratio
800:1 Contrast Ratio
Optional Lens
SUMMARY - Sanyo plcwm5500l WXGA 3LCD Video Projector with 5500 ANSI Lumens and Optional Lens:
The Sanyo PLC-WM5500L is a high performance Wide XGA projector that targets a wide range of environments, including large conference rooms, lecture halls and digital signage applications. The 16:10 widescreen aspect ration with 1280 x 800 pixels of resolution allows the display of significant more information than is possible with 4:3 XGA panels at lower resolution, and allows optional lens.
DETAILED SPECS - SANYO PLC-WM5500L WXGA 3LCD VIDEO PROJECTOR WITH 5500 ANSI LUMENS AND OPTIONAL LENS:
System
RGB liquid crystal shutter projection system
LCD Panel
Size: 0.75 inch x 3 (inorganic), Aspect Ratio 16:10
Pixel Count: 1,024,000 (1280 x 800)x 3, Total pixels 3,072,000
Projection lens
Optional Lens
Light source
330W
Screen size (Projection distance)
40” – 400” 1.4m - 24.4m; 100”: 3.6m - 6.0m (Projection distance varies depending on the lens)
Color reproducibility (when projecting video signal)
Full color (1.07 billion colors)
Contrast ratio (Full on/Full off)
800:1
Brightness
5,500 ANSI lumens
Uniformity
90%
Audio output and speaker
7W mono, 4cm (circular) x1
Scanning frequency (Input)
Horizontal: 15 - 100kHz, Vertical: 48 to 100Hz , Dot Clock: 140 MHz or less
Resolution (resizing, when using RGB signal)
1280 x 800 dots (WUXGA dot resizing possible)
Terminals
PC Input: Analog RGB input (x 2); D-sub 15; BNC 5-type
Video Input: Digital input (x 1); HDMI x 1 Ver. 1.3 with Deep Colour; Video input (x 3); BNC 3-type (VIDEO/Y-Pb/Cb-Pr/Cr), RCA 3-type (VIDEO/Y-Pb/Cb -Pr/Cr), S-video
Graphical output
Analog RGB (x 1); D-sub 15
Audio Input/Output
Audio input: Stereo mini jack x2,RCA (stereo L (mono), R) x 1; Audio output: Stereo mini jack x1
Controller Input/Output and Other
Wired remote control connection terminal; Mini jack x1; Wired LAN: RJ45 (100Base-TX/10Base-T); Control port (x 1): D-sub 9; USB terminal: type B x 1
Operating temperature
5 – 40°C; 41-104°F
Dimensions (W x H x D)
19.27 (W) x 6.46 (H) x 14.6 (D) inches
Weight
21.3lbs (with standard lens) 19.6lbs (without lens)
Main accessories
Removable power cord x1, D-sub 15 cable x1, PIN code-locking label, Quick reference guide, Owner’s manual, Remote control x1 (AAA battery x 2)
Warranty Information
3 Year Manufacturer's Warranty on Projector, 90 Days Manufacturer's Warranty on the Lamp
