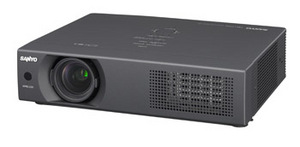

OVERVIEW - Sanyo plcwxu30 WXGA LCD Ultra Portable Video Projector with 3700 ANSI Lumens:
Offering a wide XGA full 1280 x 800 (16:10) resolution, the PLC-WXU30 makes it possible to project high-quality HD images from virtually any location. At 3700 lumens, this extremely bright, yet compact, projector is equally comfortable entertaining the whole family with exquisite HD images from cable/satellite or DVD sources as it is delivering a PC-based business presentation to a select audience in the work place. It also is ideal for projecting larger-than-life video from today’s best game consoles.
FEATURES - Sanyoplcwxu30 wxga lcd ultra portable video projector with 3700 ansi lumens:
FITS ANY SET-UP SITUATION
A flexible zoom lens allows for projecting in both short and long distances, from 3-feet to 39.7-feet, to be exact. Keystone correction adjusts for 40 degrees up or down for fast and easy set up.
NETWORKING CAPABILITY
The PLC-WXU30 is equipped with SANYO’s exclusive PJ Network Interface for wired and wireless networking, a common feature among SANYO’s extensive line of commercial projectors. Networking allows the monitoring of projector functions and operation from a long distance via a web browser. Emails can be sent automatically to report operating status. The wireless interface is compatible with IEEE802.11b/g standards, offering transfer speeds up to 54Mbps and providing WEP 64/128-bit security.
POWER OFF AND GO AND ANTI-THEFT ALARM
The units are designed with the Easy-Off function. it’s possible to remove the power cord without waiting for the machine to cool down -- convenient for quickly clearing away a temporary set-up. As this projector is small and light, a pin code lock is provided to prevent theft. When activated, a loud audio alarm goes off to scare away would-be thieves.
VERSATILE INPUTS
The PLC-WXU30 offers excellent flexibility via DVI-I and D-Sub 15 inputs. It even has component video inputs. Additionally, there is a D-Sub -15 terminal for a monitor output, achieving greater programming flexibility.
SPECIFICATIONS - SANYO PLC-WXU30 WXGA LCD ULTRA PORTABLE VIDEO PROJECTOR WITH 3700 ANSI LUMENS:
Model name
PLC-WXU30
Resolution
WXGA (1280 x 800)
Brightness (typical)
3700 Lumens
Uniformity
85 %
LCD Panel System
0.74" TFT Poly x 3
Number of Pixels
3,072,000 (1,024,000 x 3)
Contrast Ratio
500:1 (Lamp Mode "Auto", Image Mode "Dynamic")
Projection Image (diagonal)
40"-300"
Aspect Ratio
16:10
Throw Distance
1.0-12.1 m
Zoom/ Focus
Manual (1:1.6 zoom)
Up/ Down Ratio
49:1
Digital Keystone Correction
Vert. +/- 40°
Projection System
Dichroic mirror & 4P prism system w/ PBS
Projection Lens
F1.7-2.5 / f19.2-30.2mm
Projection Lamp
275W
Scanning Frequency
H 15-100 kHz; V 50-100 Hz
Dot Clock
140 MHz
Color System
NTSC/ PAL/ SECAM/ NTSC4.43/ PAL-M&N
Computer Compatibility
UXGA, WXGA, SXGA, XGA, SVGA, VGA, MAC analog
Sound Output
1.0 W Mono
Voltage
100-120/ 200-240 V AC; 50/ 60 Hz
BTU Rating
1242
Power Consumption
346 W (12W Standby, 16W in Network operation)
Dimensions (W x H x D)
334.0 x 78.4 x 257.5 mm (Not including protruding parts)
Net Weight
3.6 kg
User Maintenance
Clean air filters, replace lamp assembly
PC Input Terminals
· DVI-I x 1 (w/ HDCP) · D-Sub15 x 1
· Audio x 1 (stereo mini-jack : common)
Video Input Terminals
· Composite Video (RCA x 1) · S-Video (mini-DIN 4-pin)
· R & L/mono audio (RCA x 2)
· Component Video (D-Sub15 input w/ optional cable)
· Audio for Component Video (stereo mini-jack)
Output Terminals
· D-Sub15 x 1 (Monitor Out)
· Variable Audio from PC Audio Input or Video Audio Input (Stereo Mini-Jack)
Service Port Terminal
Mini DIN 8-pin
Mouse Control Port
USB type B x 1
Other Terminals
· RJ45 for Wired LAN · SD Card
Included Accessories
· 2 AAA batteries · Owner's manual (Quick manual & CD-ROM)
· Wireless/ wired remote control with Mouse and Laser Pointer
· VGA cable · PIN code label · AC power supply cord
· CD-ROM(Application soft) · Alarm Protected Seal · Soft Carry Bag
· Strap & Screw for Lens Cap
