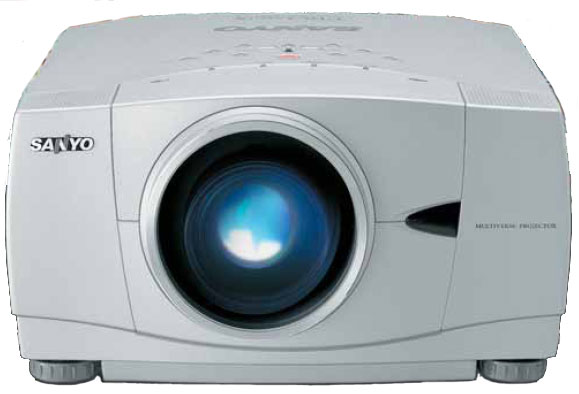

KEY POINTS - PLCXP57L Sanyo 5500 ANSI Lumens Video Projector:
True XGA (1024 x 768) Resolution
5500 ANSI Lumens brightness
1000:1 Contrast Ratio
Digital Visual Interface (DVI-D w/HDCP)
Network Control w/PJ-NET Organizer Plus II
Optional lenses available
SUMMARY - Sanyo plcxp57l 5500 ANSI Lumens Video Projector:
Utilizing high-output 318-watt UHP lamps as its light source, the Sanyo PLC-XP57L multimedia projector delivers an amazing 5500 ANSI lumens of brightness. Stacking two projectors in the twin-stack configuration can achieve up to 11,000 ANSI lumens of brightness. The PLC-XP57L contains an optical compensator with a High Contrast Optical System that achieves a contrast ratio as large as 1000:1 exhibiting more natural and smooth gradation. With an IC that uses full 10-bit digital processing, the Sanyo PLC-XP57L delivers four times more color gradation steps than a conventional projector. As a result, it projects beautiful images with impressive color precision, rendering even tiny nuances in expressive details.
DETAILED SPECS - SANYO PLC-XP57L
Multimedia VIDEO PROJECTOR:
Resolution
XGA (1024 x
768)
Brightness
(typical)
5500 ANSI
Lumens
Uniformity
90%
LCD Panel
System
1.3” TFT
Poly-Silicon x 3
Number of
Pixels
2,359,296
(786,432 x 3)
Contrast
Ratio
1000:1
(full on/off)
Projection
Image (diagonal)
31” – 400”
Aspect
Ratio
4:3
Throw
Distance
Dependent
on Lens
(4.6’ – 48.2’ w/LNS-S30)
Zoom/Focus
Dependent
on Lens
Up/Down
Ratio
1:1
(LNS-W32) or 10:0 – 1:1 (others)
Digital
Keystone Correction
Vert. +/-
35°, Horiz. +/- 15°
Projection
System
Dichroic
mirror & X prism w/PBS
Projection
Lens
Lens Sold
Separately
Lens Throw
Ratio
Dependent
on Lens (1.8-2.3:1 w/LNS-S30)
Projection
Lamp
318W UHP
Scanning
Frequency
H
15-100kHz, V 48-100Hz (auto sense/select)
Dot Clock
180 MHz
Color
System
PAL/PAL-M/PAL-N/SECAM/NTSC/NNTSC4.43
Computer
Compatibility
UXGA, SXGA+,
SXGA, WXGA, XGA, SVGA, VGA
Sound
Output
Two-piece
stereo 2W rms
Voltage
100-240V AC
50/60Hz (auto sense/select)
BTU Rating
1638
DB Rating
36.0 (eco
mode)
Power
Consumption
480W
Dimensions
(WxHxD)
12.6” x
6.6” x 16.9”
Net Weight
17.4 lbs.
User
Maintenance
Clean air
filters, replace lamp assembly
Input
Terminal Panel 1
D-Sub 15 x
1 (In/Monitor Out)
DVI-D x 1 (w/HDCP)
Audio x 1 (In/Monitor Out: stereo mini jack)
Input
Terminal Panel 2
RGBHV or
Composite/Component Video (BNC x 5)
Audio x 1 (stereo mini jack)
Input
Terminal Panel 3
Composite/Component Video
(RCA x 3)
S-Video x 1
L & R Audio (RCA x 2)
Additional
Input Terminals
Wired
remote control jack x 1 (stereo mini jack)
USB x 1 (type B)
Control Port x 1 (mini Din 8-pin)
Output
Terminals
D-Sub 15 x
1 (Input1/Monitor Out)
Variable audio x 1 (Input1/Monitor Out: stereo mini jack)
Included
Accessories
Wired/Wireless IR Remote Control w/Mouse Pad and Laser Pointer,
2 AA Batteries, AC power cord, VGA Cable, Serial/USB Control
Cables, PIN Label, Lens Attachment (POA-LNA03), Owners manual,
Lens replacement manual
Optional
Accessories
PJ-Net
Organizer Plus II (POA-PN03), Filer Box (POA-FBOX130),
POA-FIL130 (Replacement Filter for POA-FBOX130), Replacement
Lamp (6103287362), Optional Lenses
Warranty
Three years
parts and labor, 90 days original lamp; Quick Repair Program
under warranty
